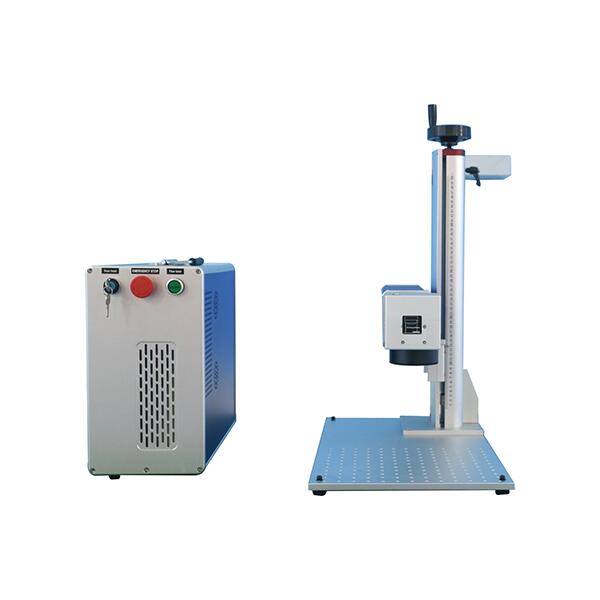

Portable Fiber Laser Engraver 20w/30w Fiber Laser Marking Machine

Short Description:

APEX-HMW
Portable type, easy to carry and operation.


Product Detail

Product Tags

Features of the Laser Marking Machine

  • Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery.
  • High Precision: Re-position precision is 0.002mm
  • High Speed: Imported scanning system makes the scanning speed is up to 7000mm/s
  • Easily Operating: Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW or Photoshop.
  • High Reliability: MTBF>100,000 hours
  • Energy Saving: The efficiency of optic-electrical converting is up to 70%
  • Low Running Cost: No wearing part. Free maintaining, no need to adjust the laser path.

Parameters of the Fiber Laser Marking Machine

Machine Specifications

Model

HMW20W

HMW30W

HMW50W

Wave length of laser

1064nm

Laser power

20W

30W

50W

Marking scope

175*175 /200*200

Laser sources

Raycus / JPT / IPG / MAX

Laser Head

Scanning head

The minimum focus facula diameter

20μm

Minimal character

0.01mm

Marking speed

≤7000mm/s

Repeated accuracy

0.0025mm

Cooling ways

Force-air cooling

Power supply

220V/ 50Hz/2kVA

Process Material

All kinds of metal

Support format

PLT, BMP, DXF, JPG, TIF, AI etc

Package

Standard export plywood case

Customers Samples Photos

APPLICATIONS
Electronic components, integrated circuits, mobile communications, medical equipment, eyeglasses and clocks, jewelry, auto parts, plastic buttons

MATERIALS
All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel, mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition

metal marking samples
