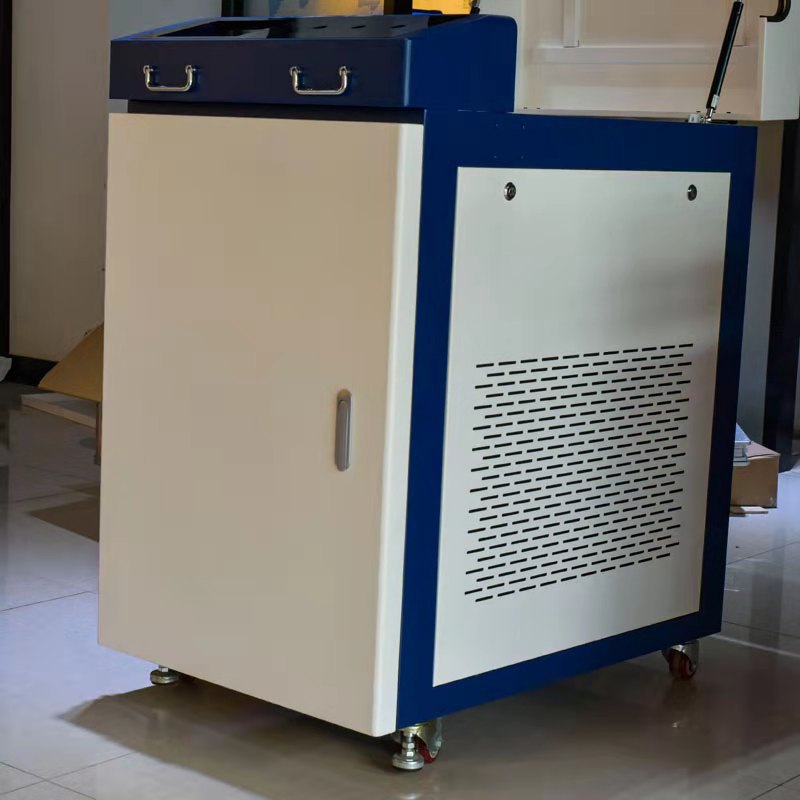

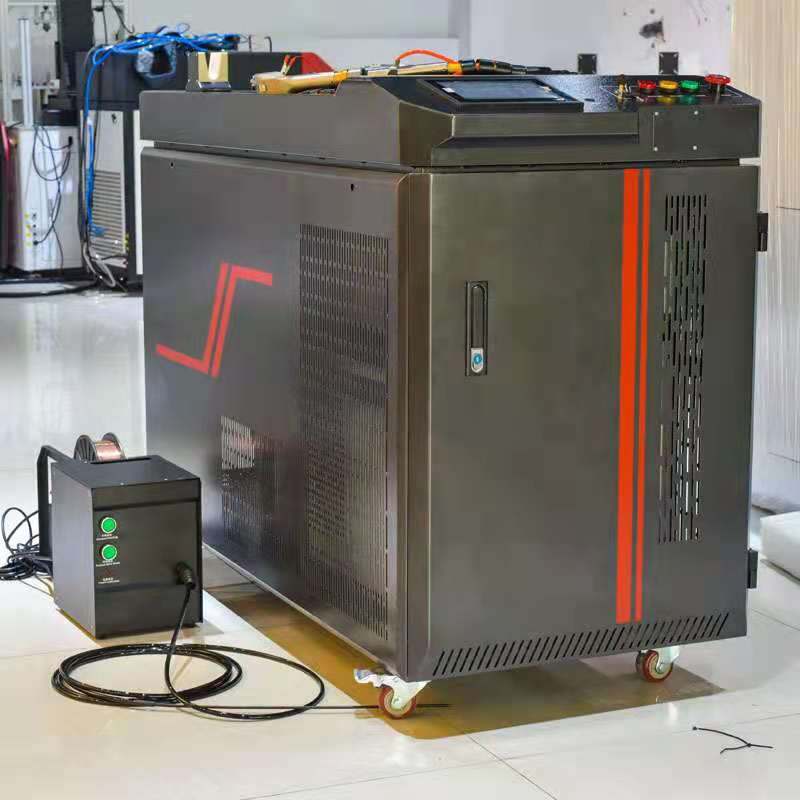

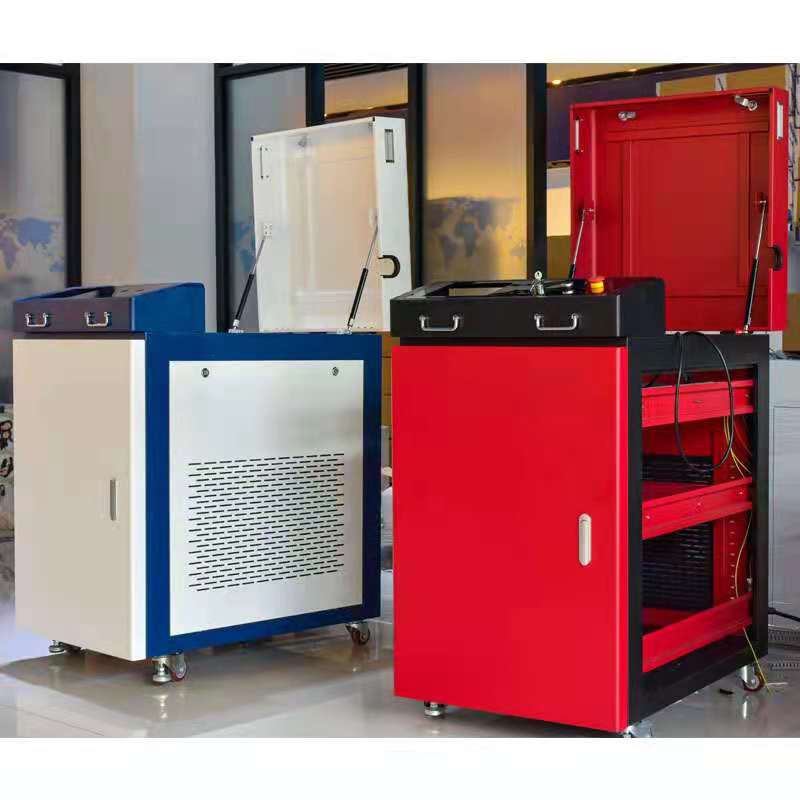

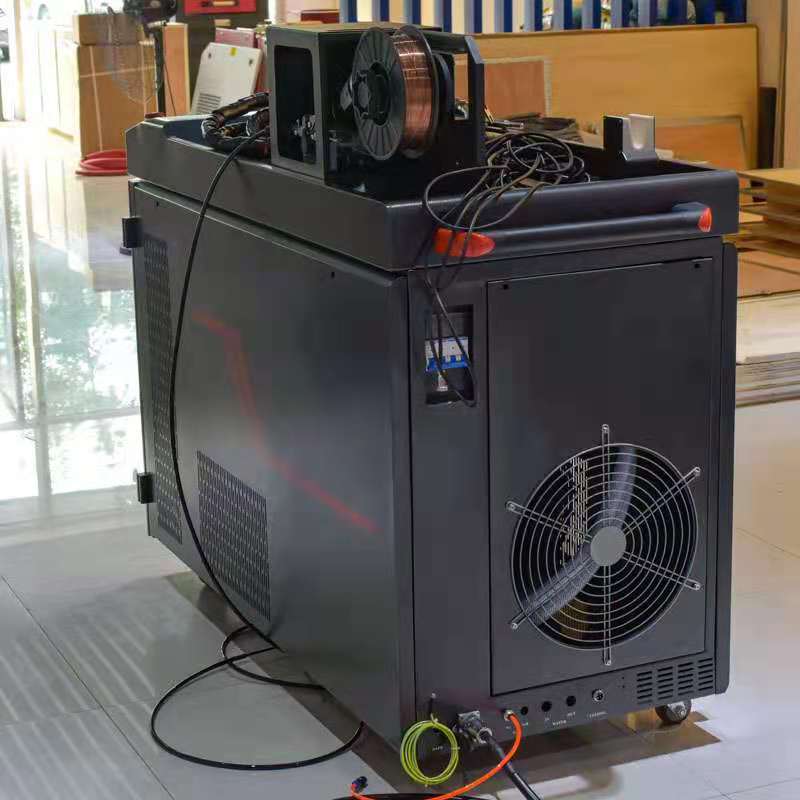

Automatic Fiber Continuous Laser Welding Machine Steel Aluminium Brass (5mm)

Short Description:

The integral machine is composed of five parts, namely, the control cabinet, cooling system, power cabinet, laser and optics processing system.
The equipment can also be divided into five parts in terms of functions, which are:
1) Laser source;
2) Laser power supply;
3) Optics system;
4) Controlling system;
5) Cooling system.

Send email to us

Product Detail

Product Tags

Hand-held Laser Welding Machine
Along with the development of fiber laser source, hand-held laser welding machine was widely used and changed the industrial welding market by making it much simpler for different angle and welding processing like stitch welding, tailor welding and seam welding. It could completely replace the applications of traditional arc welder and electric welder technology in thin stainless steel, iron sheet, aluminum plate and other metal sheet.

1.Smart interior design and good interactive control system which enlarge the tolerance range of the welding parts and the weld width. It solves the disadvantage of small 2.laser welding spot with better weld formation /shaping.
3.Lightweight and ergonomic design, comfortable grip, easy to control with one hand and simplified operation.
4.Multiple safety alarms, automatic locks light after removing the workpiece, with high security.
5.Smooth & good-looking weld seam, fast speed, no consumables, no discoloration, no need for extra processing.
6.A variety of angle nozzles can be configured to meet the welding needs of different products.

Technical parameters:

Model	APEX500W	APEX750w	APEX1000w	APEX1500w	APEX2500w
Optical Parameters
Work Model	Continuous/ Modulation
Max Power(W)	500	750	1000	1500	2500
Wavelength(nm)	1080
Repetitive Rate(Hz)	0-5000		500-5000		0-5000
Pluse Width(ms)	0.05-50		0.05-0.6		0.05-50
Output Power Stability	<2%
Red Light	yes
Output Connector	QBH Customizable)
Fiber Core Diameter	25,50,100,Optional				50,100,200, optional
BBP(mm. mrad)	0.4,2,5				2,5,10
Input Voltage(VAC@47-63H2	200-240, Single- phase				340-420,Three- Phase-Five-Wire
Cooling way	Water Cooling
Operating Temperature(ºC)	10-40
Power consumption(kw)	<4	<5	<7	<8	<9
Control Model	External RS232/ External AD
Power Adjustment(%)	10-100

Applications

For thin metal sheet laser welding processing-stainless steel, carbon steel, aluminum. Covering the products of mold, cabinet, tank, kitchen accessories, hardware, advertising letter and signboard, door frames etc.
