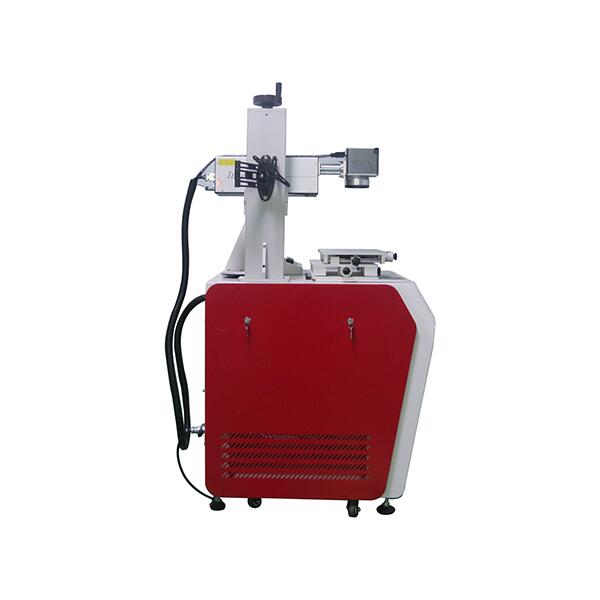

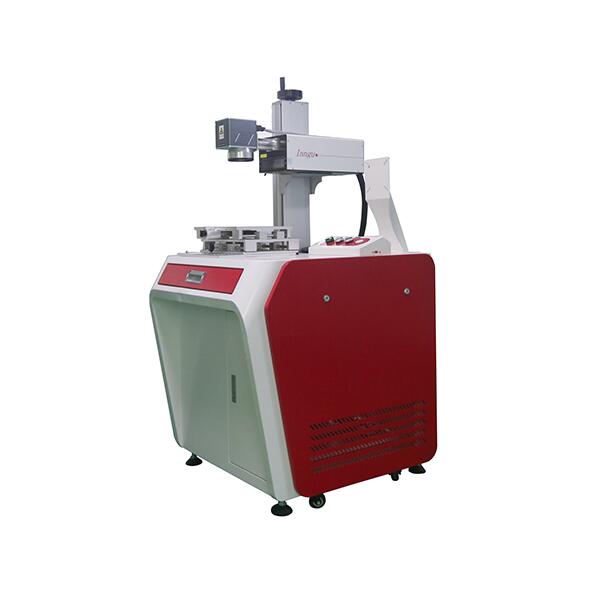

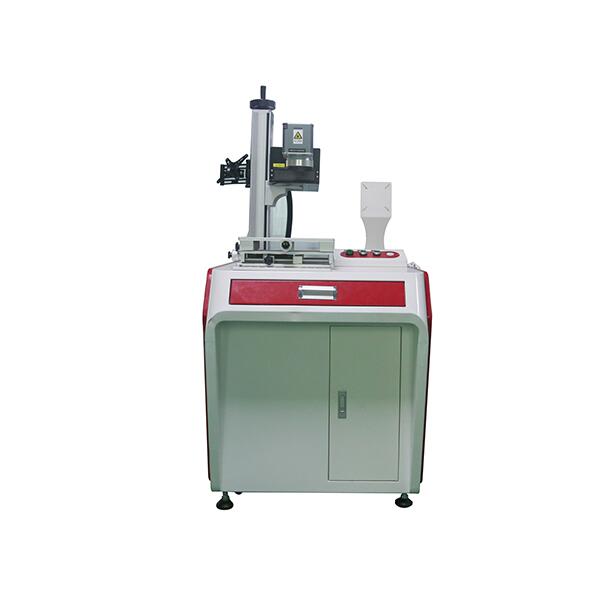

Multi Application UV Laser Marking Machine With Rotary
Features Of The Co2 Laser Marking Machine
Add a rotary to mark on cylindrical project, such as glass bottle, cup, pincil, piples, nails...
With cold laser processing and small heat-affected zone, it can achieve high quality processing.
Wide applicable materials range can compensate for the shortage of infrared laser processing ability.
Good beam quality and small focusing spot, it can achieve superfine marking.
High marking speed, high efficiency, and high precision.
No consumables, low cost and low maintenance fee.
The overall machine has stable performance, supporting long-term operation.
Parameters of the Co2 Laser Marking Machine
|
Machine Specifications |
|||
| Model |
HMU3W |
HMU5W |
HMU10W |
| Wave length of laser |
355nm |
||
| Laser power |
3W |
5W |
10W |
| Marking scope |
175*175 mm |
||
| Laser sources |
JPT / IPG |
||
| The minimum focus facula diameter |
20μm |
||
| Minimal character |
0.01mm |
||
| Marking speed |
≤7000mm/s |
||
| Repeated accuracy |
0.0025mm |
||
| Cooling ways |
Force-air cooling |
||
| Power supply |
220V/ 50Hz/2kVA |
||
| Process Material |
All metal and non-metal materials |
||
| Support format |
PLT, BMP, DXF, JPG, TIF, AI etc |
||
| Package |
Standard export plywood case |
||
Customers Samples Photos
APPLICATIONS
Electronic components, integrated circuits, mobile communications, medical equipment, eyeglasses and clocks, jewelry, auto parts, plastic buttons
MATERIALS
All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel, mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition
Non-metals: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes, wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material, Electronic components, integrated circuits, mobile communications, medical equipment, eyeglasses and clocks, jewelry, auto parts, plastic buttons
