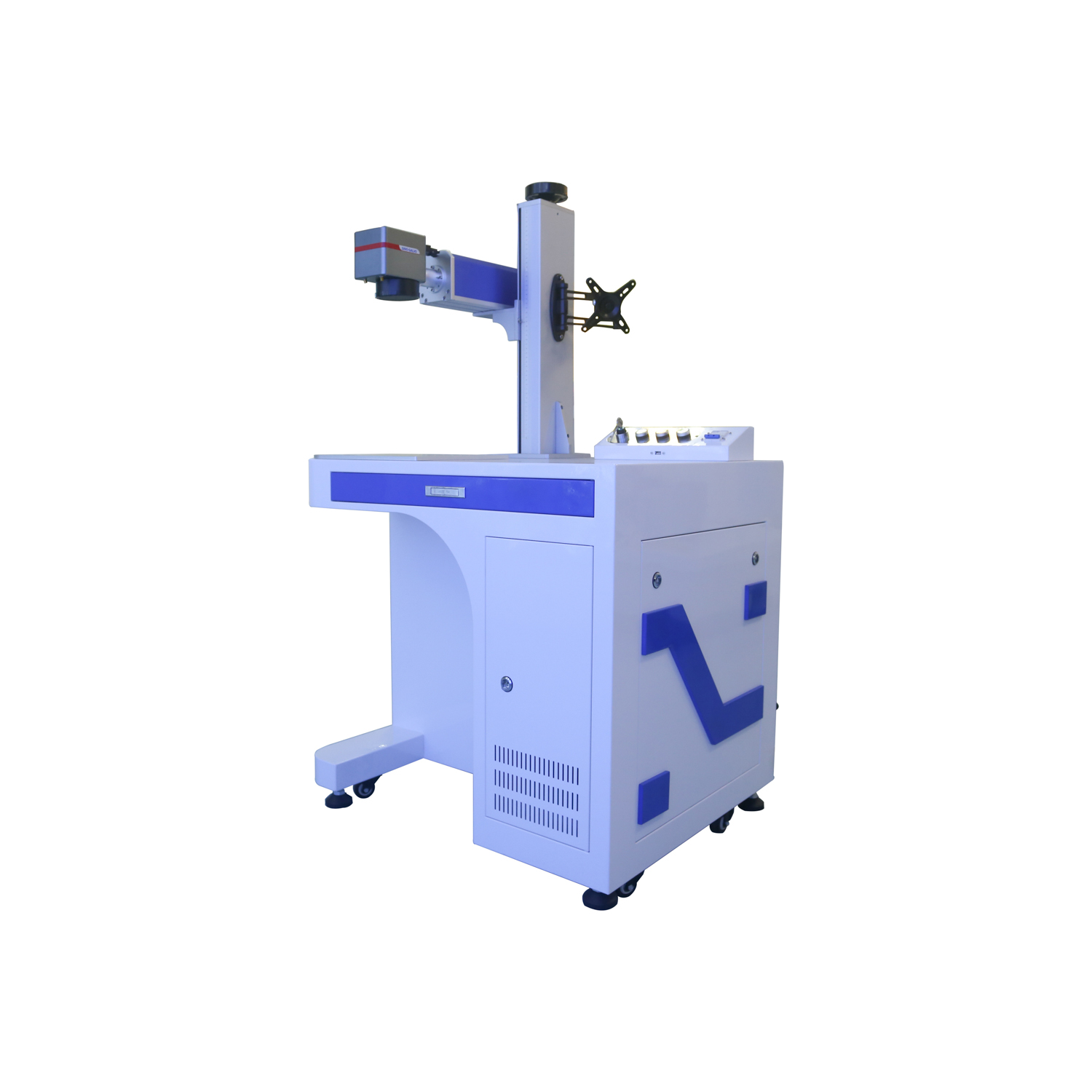

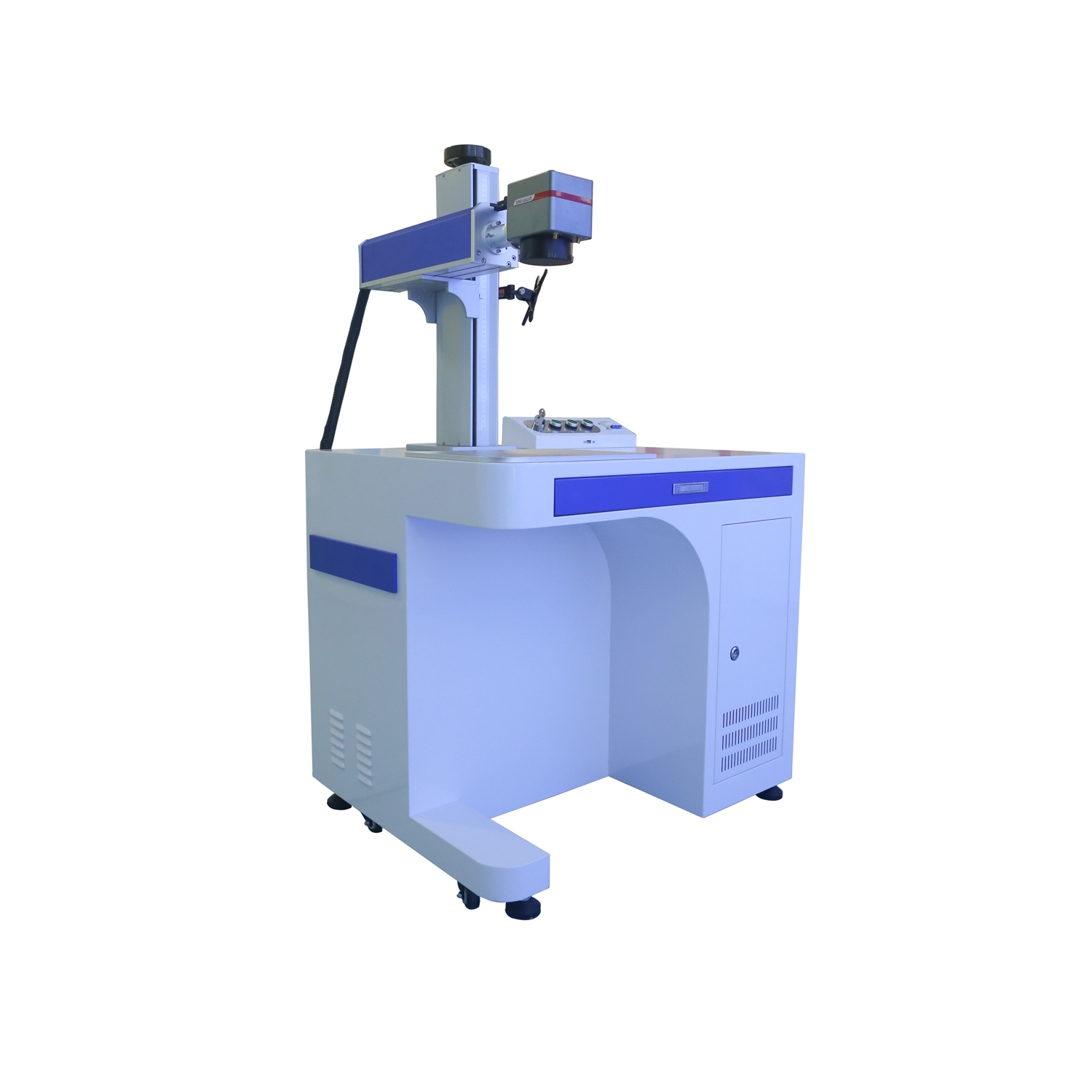

Table Laser Printing Machine 20w/30w/50w/70w/100w Fiber Laser Marking Machine

Short Description:

APEX-HM
This fiber laser marking machine adopts international most advanced technology, lifetime can reach 100,000 hours, 8-10 years without any consumables and maintenance.

The diode coupling with fiber to process pump, the pump light will course the particles reverse which can emit high quality laser beam.

This is the best choice for the customers who have special requirements to the smallest & finest laser beam and character.

Send email to us

Product Detail

Product Tags

Features of the Fiber Laser Marking Machine

Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery.
High Precision: Re-position precision is 0.002mm
High Speed: Imported scanning system makes the scanning speed is up to 7000mm/s
Easily Operating: Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW or Photoshop.
High Reliability: MTBF>100,000 hours
Energy Saving: The efficiency of optic-electrical converting is up to 70%
Low Running Cost: No wearing part. Free maintaining, no need to adjust the laser path.

Parameters of the Handheld Laser Welder

Machine Specifications
Model	HM20W	HM30W	HM50W
Wave length of laser	1064nm
Laser power	20W	30W	50W
Marking scope	175175 / 200200mm
Laser sources	Raycus / JPT / IPG / MAX
Laser Head	Scanning head
The minimum focus facula diameter	20μm
Minimal character	0.01mm
Marking speed	≤7000mm/s
Repeated accuracy	0.0025mm
Cooling ways	Force-air cooling
Power supply	220V/ 50Hz/2kVA
Process Material	All kinds of metal
Support format	PLT, BMP, DXF, JPG, TIF, AI etc
Package	Standard export plywood case

Customers Samples Photos

APPLICATIONS
Electronic components, integrated circuits, mobile communications, medical equipment, eyeglasses and clocks, jewelry, auto parts, plastic buttons

MATERIALS
All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel, mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition
