Jinan Sale 2 Spindles Turning Working Wood Lathe Machine for Table Legs Stairs

Short Description:

APEX Brand cnc wood lathe have different models, such as APEX15016, APEX15030, APEX20030, APEX30030etc.the size can be customized, we offer 2 years warranty, the whole life technical support.
For first time coopeation, we will help to solve the below issues, such as to choose economic but high-performance machine, shipping cost, import custom tax fee, the after sale problems, technical support etc.


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    video

    Product Tags

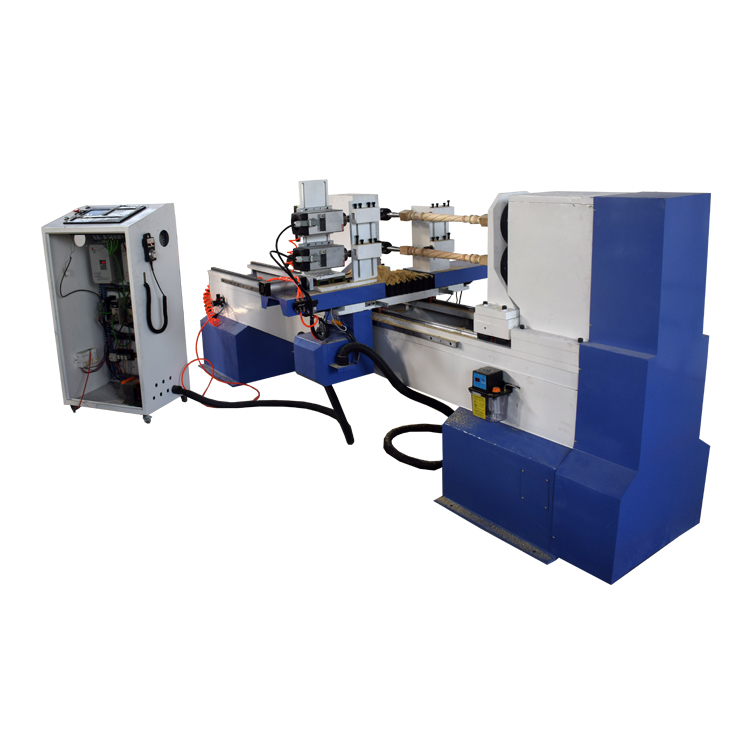

    2 Spindles Turning Working Wood Lathe Machine is equipped with double axis for turning staircases, stairway balusters, stairway newel posts, table legs, chair legs, bed rails, baseball bats, etc. Now the wood lathe for sale at low price.

    Product Descriptions

    3

    Features of Automatic CNC wood lathe machine

    1. The whole lathe machine body is cast iron, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.
    2. The wood lathe machine is equipped with 2pcs spindles for twisting, grooving, slotting, etc.
    3. The wood lathe adopts advanced DSP system with USB connection, operated with the handle, convenient operation. The lathe can completely work off-line and do not take any computer resources.
    4. The wood lathe adopts Germany ball screw and Taiwan PMI helical square guide rail with high transmitting precision and longevity. Bid module helical/diagonal rack.
    5. Compatible with several CAD/CAM design software: type3, artcam, etc.
    6. Rotating speed is adjusted by inverter, and the speed data is shown on controlling cabinet panel.
    7. One time tool setting to finish the whole work piece.
    8. Double axis can double working efficiency, with 4 pcs wood lathe cutter make the wood cutting more smooth and stable.
    9. Helical gear transmission way, which makes higher working speed, and with higher weight load, smooth running, and lower noise.

    Technical Parameters of Automatic CNC wood lathe Machine



    Model APEX1530
    Max processing length 1500mm (2000mm/2500mm/3000mm for option)
    Max turning diameter 300mm
    Air pressure 0.6-0.8Mpa
    Powersupply AC 380V 3 phase 50HZ/60HZ (220V for option)
    Max feed rate 200cm/min
    Min setting unit 0.01cm
    Transimission type ballscrew for X Z axis,gear for Y axis
    Guider Taiwan Hiwin orbit
    Main shaft rotating speed 0-3000r/min
    Motor power 4kw
    Spindle motor 3.5kw air cooling spindle
    Control System DSP control system
    Motor Stepper motor

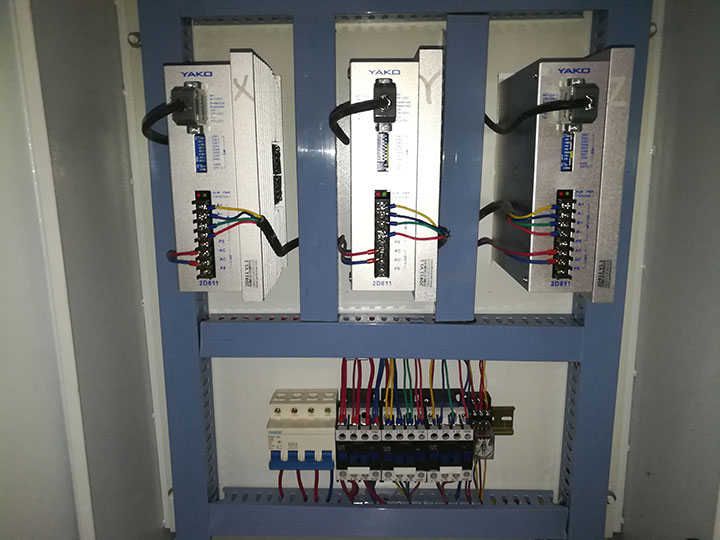

    Driver Yako driver
    Inverter Best inverter
    Drawing Software AutoCAD
    Hand controller recognise file format *.dxf



    Optional Parts for Automatic CNC Wood Lathe Machine

    1. More rotary axis.
    2. Spindle.
    3. Different power requirement.
    4. Upgrade controller.
    5. Servo motor.
    6. Bigger working diameter and length, etc.
    Automatic CNC Wood Lathe Machine Motor
    Servo motor for Wood Lathe Machine

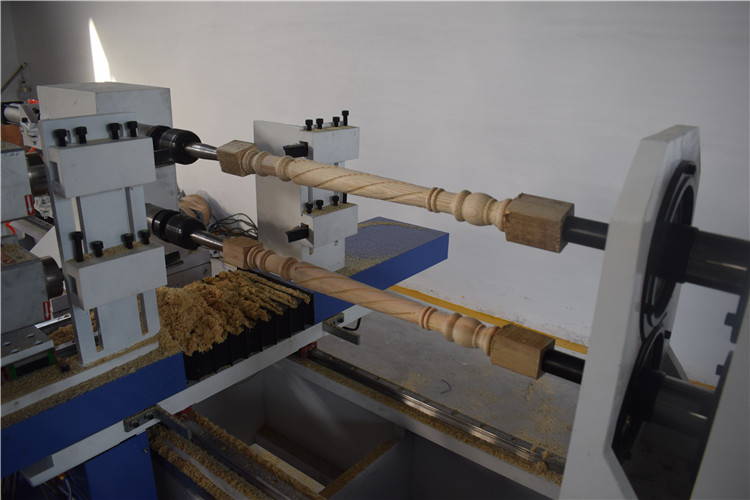

    Two Spindles for Automatic CNC Wood Lathe Machine
    DSC_0010

    Applications of Automatic CNC Wood Lathe Machine

    The wood lathe machine is mainly used for staircases, stairway balusters, stairway newel posts, dining table legs, end table legs, sofa table legs, bar stool legs, chair legs, chair arm posts, chair stretchers, bed rails, lamp posts, baseball bats, wood broom handle, etc.

    Automatic CNC Wood Lathe Machine Projects

    Samples
    International Shipping Around the World
    All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
