CNC Router Wood Carving Machine Acrylic Cutting Sign Furniture

Short Description:

* Nc Studio control system, High engraving accuracy, and cut accurately.

* Stepper driving, or servo driver optional

* TBI Square rail

* T-slot table surface, can fix the materials easily

Product Detail


Product Tags

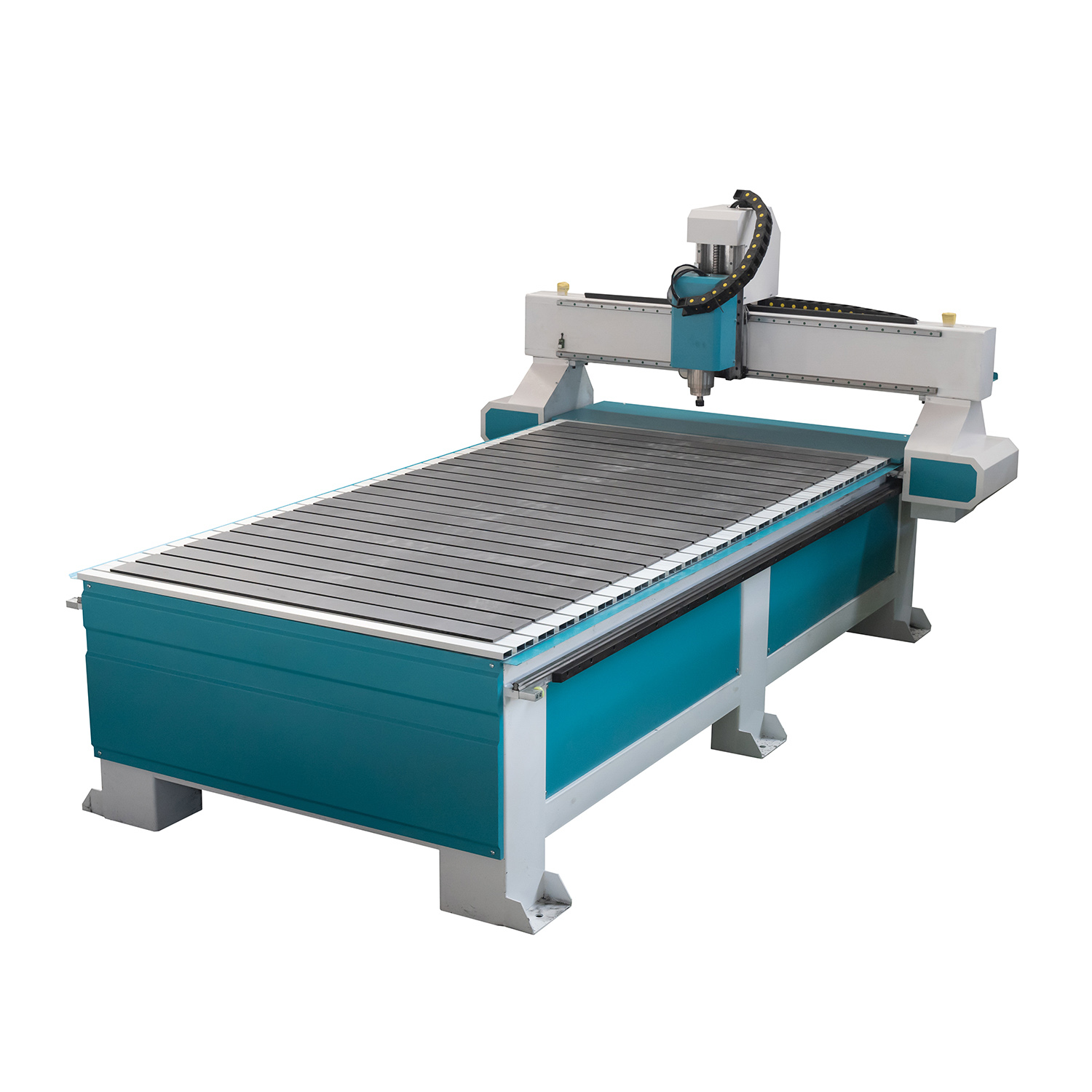

This is promotion type APEX1325 cnc router for agent customers, T-slot table, NCstudio control system, step motor and drivers, 3.0kw water cooling spindle etc. Also have APEX1530,APEX2030, APEX2040 ETC. Machine model can be customized.
2 Years warranty the whole life technical support, online training also can send engineer do training at foreign factory


Main features
1) DSP control system: Popular and easy operation, with USB port to transfer program;

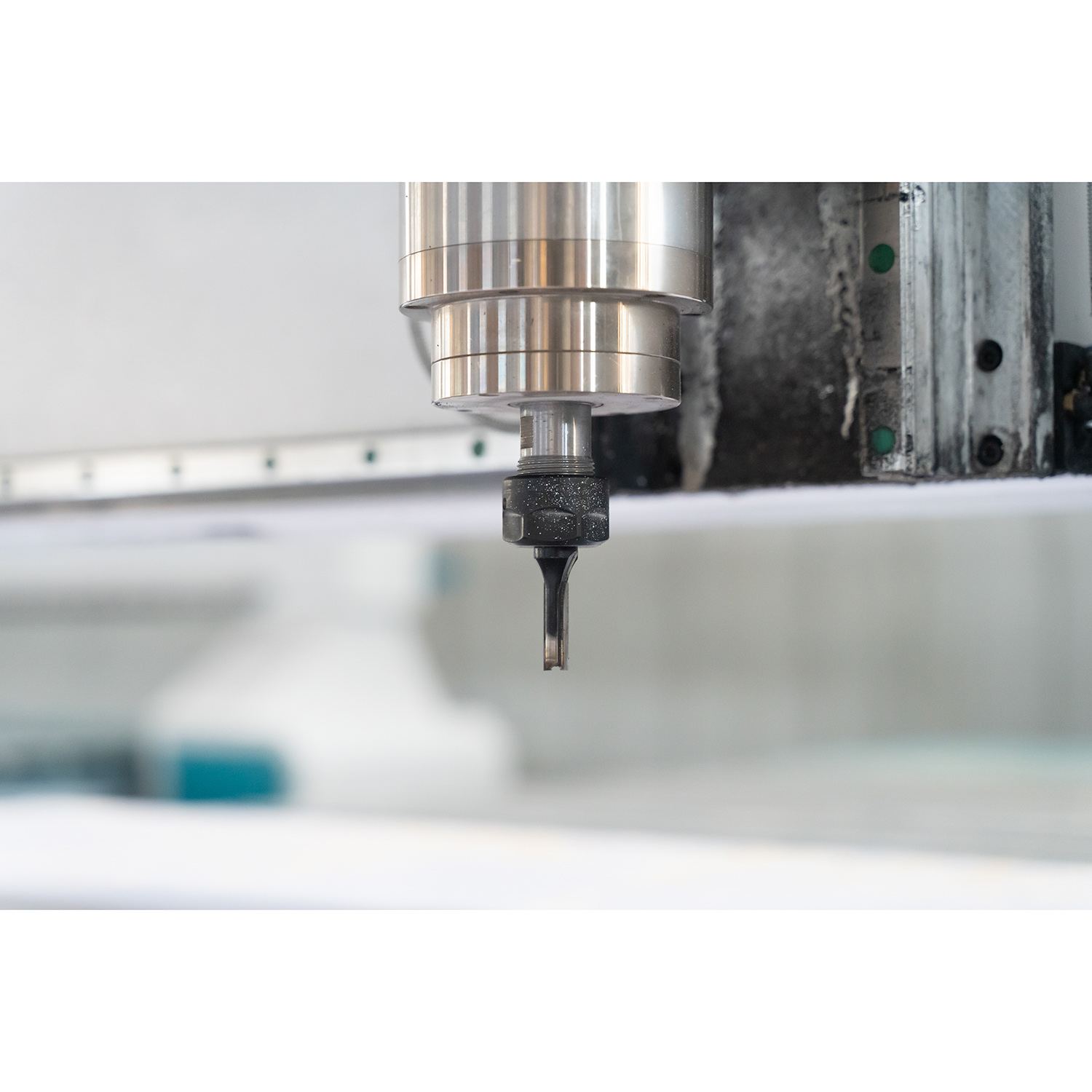

2) China high quality water-cooling Spindle: Long working life, easy maintenance;
3) Big Stepper Driving Motor: With highly control precision and high speed, reliable and stable;

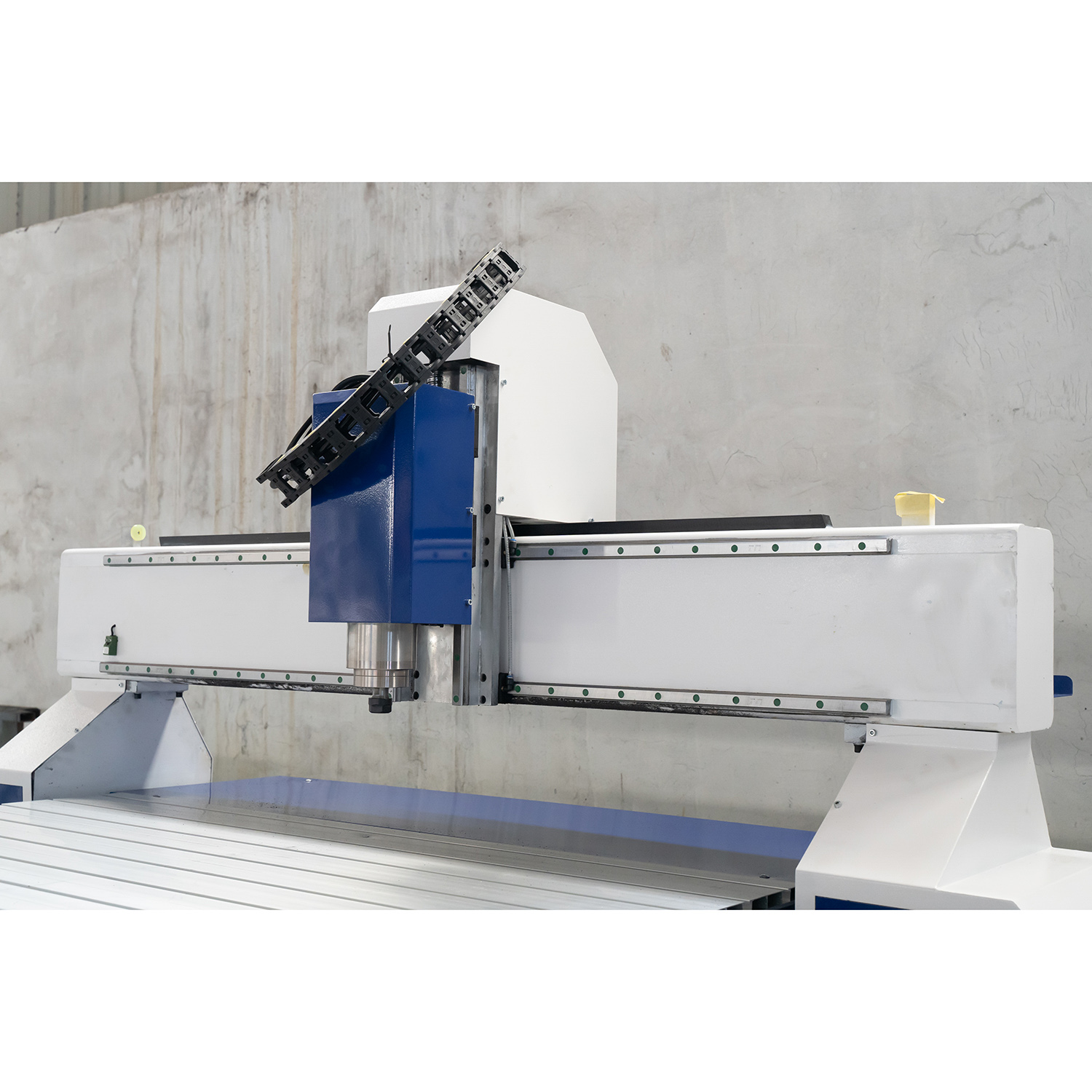

4) Taiwan Hiwin Guide and Block: Guaranteed genuine rail with good quality, realizing smooth movement;
5) Taiwan TBI ball screw: linear motion with high precision and and in high speed
6) Helical rack and pinion: quiet running, greater accuracy, smoother cutting and allows greater acceleration and feeding rates,
longer lifetime because of smaller wearing force.

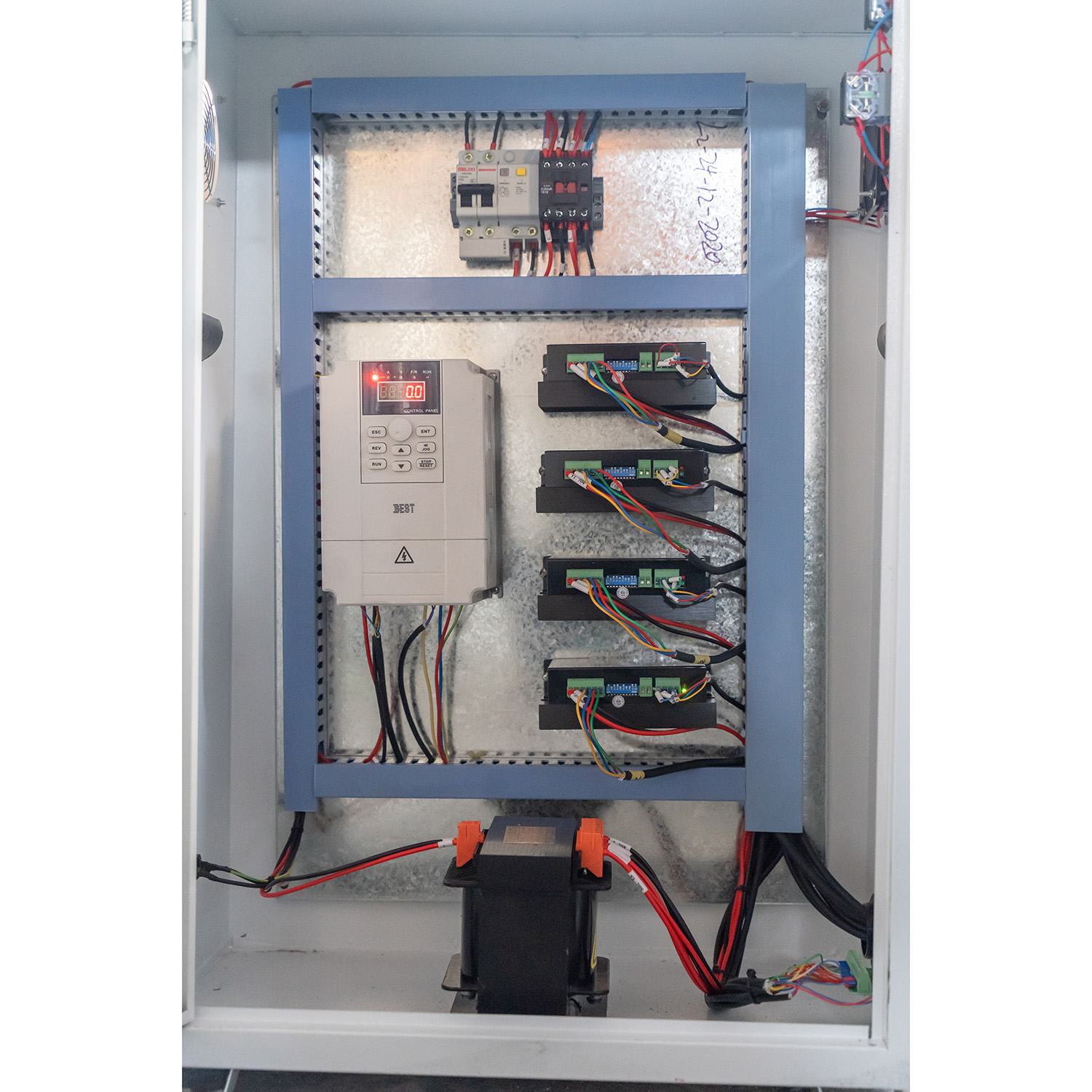

7) Fuling Inverter: Guarantee the variety working speed and protect the spindle very well;

Technical Data:

Description Parameter
Model APEX1325
X,Y,Z working area 2500* 1300* 200mm
Resolution ±0.03/300mm
Repeatability ±0.03mm
Table Structure Vacuum table
Lathe Structure Welding steel structure
X,Y structure Rack pinion, Hiwin linear rails
Z structure TBI Ball screw, Hiwin square rails
Rated power 3Kw (without spindle)
Max. rapid 32000mm/min
Max. Working speed 25000mm/min
Spindle power 3.0Kw spindle
Spindle speed 0-24000RPM
Working mode Stepper or servo
Working voltage AC380V/50/60Hz,3Ph(Option 220V,3Ph)
Command code G code
Operating system Mach3 system (Ncstudio, Syntec,DSP )
Interface USB
Memory 128M
Tool holder ER25
X,Y working accuracy <0.03mm
Software Artcam, Type3 UcancameV9
Working temperature Temperature:0 degree-45 degree
Humidity:30%-75% (No Condensation)
Optional Spare Parts Air-cooling spindle
Double bag dust collection,vacuum pump

Application Industry and Materials:
Application industry and materials
#Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
#The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
#Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
#Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper engraving and milling process.

广告机样品组图 (1)

Our Services

1.Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
2.During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here;
3.After sale:
We would provide English Version working manual.
4.If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
5.Machine warranty is two years.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
