Two Axis Automatic CNC Wood Engraving Lathe Turning Lathe for Railing
Lathe machine is designed for cylindrical or conoid workpieces, for example pillar, banister, chair legs,etc.
All lathes work the same way.USB access device,turning garland, a molding.single axis, double blades,2 pieces blade cutters.
Product Descriptions
Features of Multi-Function CNC wood lathe with Automatic Loading System:
It is suitable for same design work pieces long production runs, save working time and turned components with excellent quality.
It is equipped with three independently controlled cutting tools, the first turning blade for roughing the square wood to be shapes designed, the second milling tool for twisting or fluting, the last one producing one-off bespoke turnings. A sanding head with narrow belt for sanding turned or straight profiles is optional.
Technical Parameters of Multi-Function CNC wood lathe with Automatic Loading System:
CNC Wood Lathe Technical Parameter:
|
Description
|
Parameters
|
|||
| Model |
APEX15016
|
APEX15030
|
APEX20030
|
Customized
|
|
Table Bed Size (mm)
|
1500 *160mm
|
1500 *300mm
|
2000 *300mm
|
Customized
|
|
Controller system
|
DSP control system
|
|||
|
Cutting speed
|
8-15m/min
|
|||
|
Inverter
|
Fuling inverter
|
|||
|
Driving System
|
Step motor and drivers
|
|||
|
X,Y,Z axis guide rail
|
Taiwan HIWIN guide rail
|
|||
|
Repeat positioning accuracy
|
±0.05mm
|
|||
|
Process precision
|
±0.35mm
|
|||
|
Transmission model
|
Gear rack drive
|
|||
|
Working Voltage
|
110V/ 200V/ 380V
|
|||
|
Software supported
|
TYPE3/ARTCAM/UCANCAM/CAXA/MASTERCAM/
Other software output code |
|||
|
Cutter
|
Four cutter
Two spindles and two rotary axis
|
|||
Panel controller:

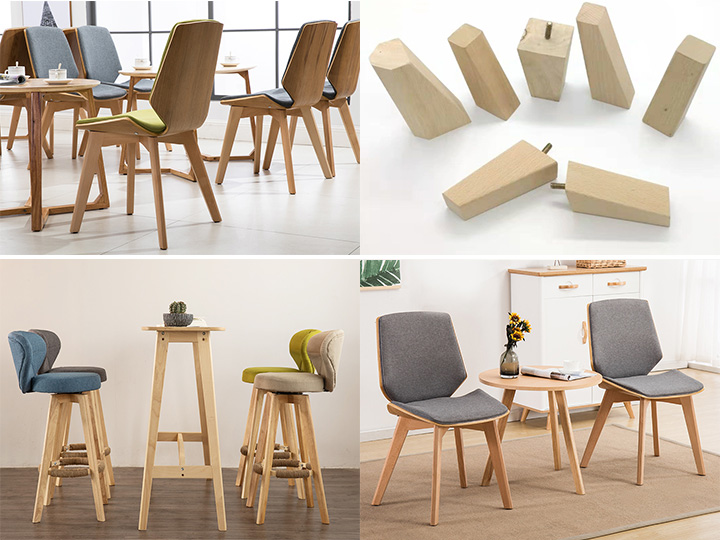

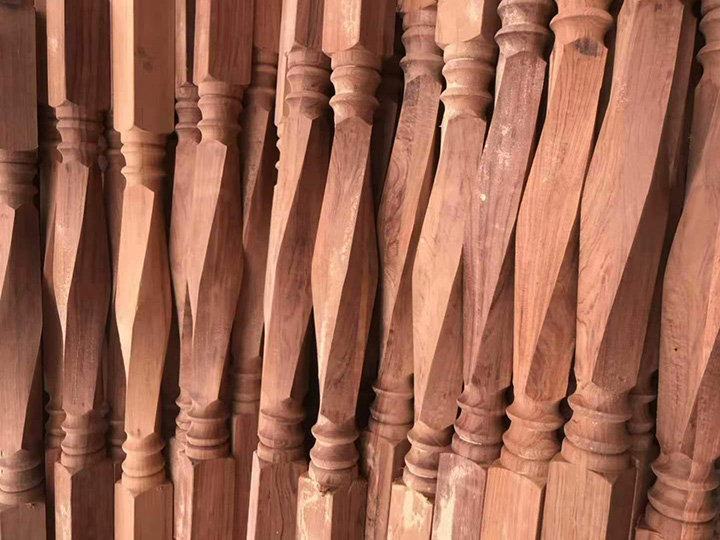

What types of special works a multi-function CNC wood lathe with automatic loading system can do?
