Sale at Affordable Price 2021 Best 4 Axis CNC Router 1325 with 4×8 Rotary Table

Short Description:

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Send email to us

Product Detail

video

Product Tags

2020 best 4 axis CNC router 1325 with 4×8 rotary table (4th axis) is popular used in woodworking, sign making, mold making, arts and crafts, now the best 1325 CNC router for sale at affordable price, free 4 axis CNC router service and support.

Demonstration Video

Product Descriptions

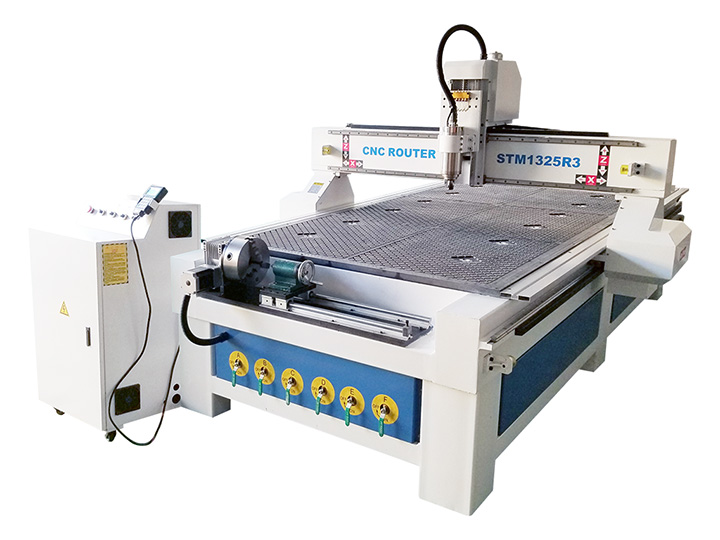

CNC Router 1325

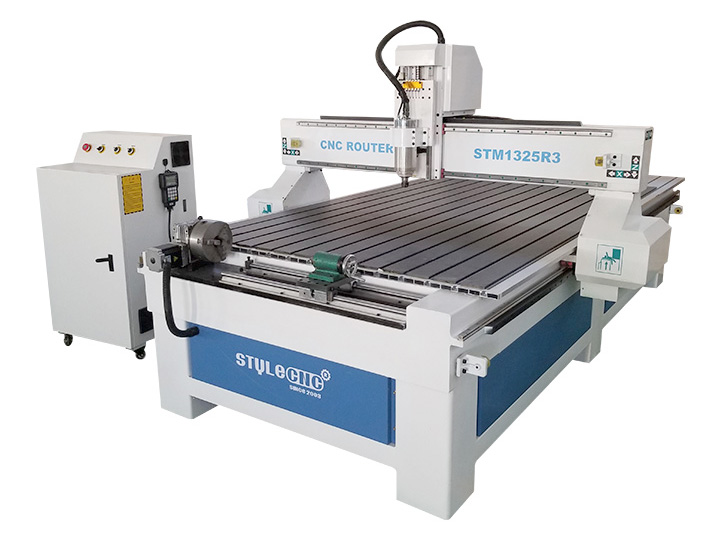

4th Axis CNC Router

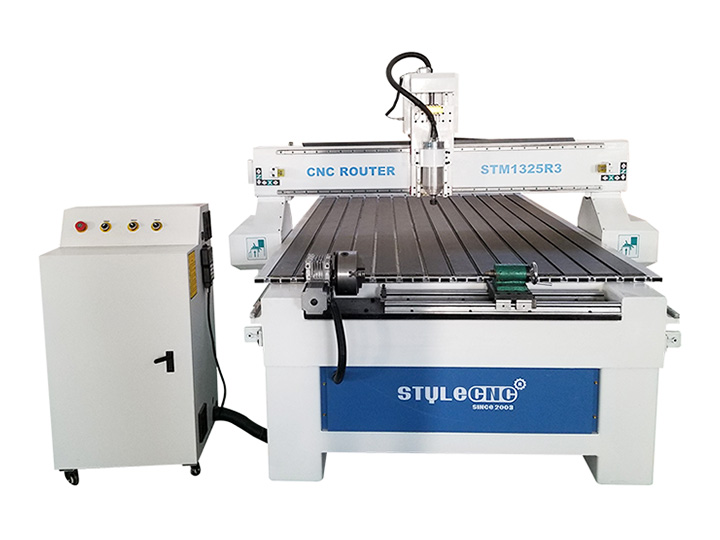

4 Axis CNC Router with Vacuum Table

What is 4 axis CNC router?

The 4 axis CNC router is based on the common 3 axis CNC router. The fourth axis (A axis) is added to the rotation axis. In addition, the 4 axis CNC router machine is divided into four-axis three-linking and four-axis four-linking CNC machines, adding a rotating axis and the control system is also a four-axis linkage system to be called a true four-axis linkage CNC machine. Because of the rotary motion of the 4th rotary axis, 3D machining of cylindrical, arc, and circular surfaces is realized.

If the 4 axis CNC router you purchased has only three feed axes (X, Y, Z), the Y axis can be manually replaced with a rotary axis, and only a maximum of three axes can be linked. This is a four-axis three-link CNC machine, which is also known as 4th axis CNC router.

If the 4 axis CNC router you purchased has four feed axes (X, Y, Z, A), it can be processed by four-axis linkage, and it can process planes, reliefs, cylinders, non-standard three-dimensional patterns, corner repair of 3D patterns, etc. .

Benefits of 4 Axis CNC Machining

The best 4 axis CNC router kit uses a DSP handle industrial control system. The four-axis linkage control has excellent and stable quality, good maintainability, and usability. It can control the completion of the 3D machining of the cylinder and the rotation of the tetrahedron. It is suitable for three-dimensional sculpture of figure statues and legs of European furniture. It has the following advantages:

1. The new four-axis linkage motion control method can be used offline, without additional computer.

2. Support A/C code format and special M code control.

3. I/O interface can be customized to provide users with a wide range of development platforms.

4. Intelligent processing memory function, support breakpoint continued carving.

5. Stronger anti-interference, passed multiple CE tests.

6. With parameter backup and parameter recovery functions, it effectively prevents the loss of important parameters.

7. Machining of complex workpieces such as cylinders, prisms, and polyhedra.
