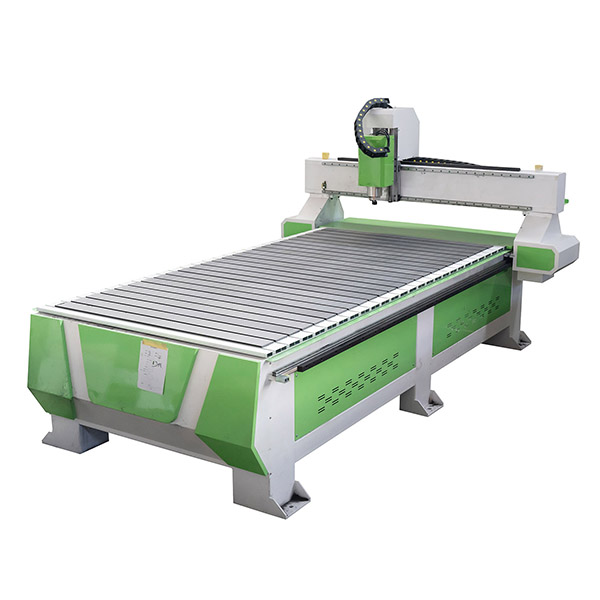

3 Axis CNC Router Wood Engraving and Cutting Machine China Factory Directly Supply
Features of the CNC Wood Router
3KW Water Cooling Spindle
Adopting advanced NC-Studio control system with USB port which is easy for operating even without a computer
Leadshine Brand Stepper Motors and Drivers
Welded with seamless steel structure, which is high temperature annealing and vibrating stress relief. Machine weight up to 1500kgs to make sure the lathe body stabilized and never deformed.
Parameters of the CNC Router APEX-1325W
|
Technical Parameters |
|
| Model & Name | APEX-1325W |
| Brand | APEXCNC |
| Working Area | 1300mm*2500mm*200mm |
| Spindle Power | 3KW |
| Spindle Speed | 24000RPM |
| X,Y,Z Traveling Positioning Accuracy | ±0.01/2000mm |
| Max Travelling Speed | ≥40000mm/min |
| Max Working Speed | ≥20000mm/min |
| Commend Code | G Code |
| N.W/G.W | 1300KG/1500KG |
| Package Size | 3.2m*2.12m*2.15m |
| Diameter of Tools | 3.175, 4, 6, 8, 10, 12.7mm |
| Interface | USB |
| Running Environment | Temperature: 0-45ºC Relative Humidity: 30%-75% |
| Working Voltage | AC380V/220V |
Detailed Parts of the CNC Woodworking Machine
Customers Samples Photos
CNC wood lathe machine can make chair legs, baseball bat, bar tools, high efficiency saving manpower.
For the production of solid wood furniture, solid wood staircase, wood columns, solid wood floor racks, wood decorative, wood crafts, such as rotating working pieces machining.
Applies to furniture, staircases, decorative, wooden crafts manufacturing factory, etc.
The final products include various cylindrical working pieces, bowl shape, tubular shape and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.
