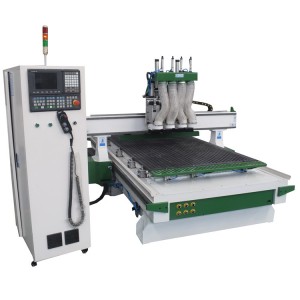

1325 Circular 12 Tools Atc CNC Wood Router Furniture Making Machine

Short Description:

1, High productivity. ATC CNC router can meet the tool changing requirements during processing without manual participation. With simple and easy operation mode to learn, which can help users quickly grasp the use of methods and greatly improve production efficiency.

2, Good software compatibility. Adopting open software interface, it can be compatible with the processing codes generated by various CAD / CAM design software, such as type3 / Artcam / Castmate / Wentai, to ensure the realization of various design functions.

Send email to us

Product Detail

Product Tags

Feature:

APEX1325ATC CNC router machine adopts automatic tool changer spindle with tool magazine of 12 cutters, the tools can automatically change to fit different works according to your requirements. The ATC CNC machine is mainly used for 2D/3D machining of woodworking, cabinet making, door making, mold making, wood arts, wood crafts. Now the best ATC CNC router for sale at cost price.

ATC is refer to Automatic Tool Changer. ATC CNC router is a type of CNC machine with automatic tool changer spindle, the spindle usually carries tools magazine of 6 cutters or 8 cutters or 10 cutters or 12 cutters. The CNC router tools can automatically change according to the working requirements when the CNC router ATC works, no need of manual operation, which will improve the working efficiency greatly. There are two types ATC CNC machine, which includes linear ATC CNC router and Disc ATC CNC router. The best ATC CNC machine adopts a rotary 4th axis for 3D cutting and carving.

Model	APEX1325 ATC
Working area	25001300300(mm)
Thick-walled square tube, five-sided milling
Working table	vacuum table
Spindle	ATC HQD 9KW
Cooling system	Water-cooling
Control system	Syntec
Inverter	TAIWAN LITEON 11KW
Transmission	X,Y-helical rack pinion,Z-TBI ball screw
Guide rail	Hiwin guide rail 25mm from Taiwan
Ball screw	TBI ball screw from Taiwan
Drive system	850W Yaskawa motor and driver
Reducer	Japan Shimpo reducer
Rotary axis	Optional
Lubrication	Automatic lubrication
X,Y,Z repositioning Positioning	0.02mm
Spindle speed	0-8000rpm/min
Traveling speed	0-40000mm/min
Working speed	0-30000mm/min
Command code	G code
software	Artcam/Type3,other CAD/CAM
Water pump 7.5KW	Included
Stainless steel sink	Included
Saw	Included
