CNC Router 3 Axis EPS Foam Cutting Machine Sink desktop 2021 Best sellers

Short Description:

CNC router is with an extra heavy duty gantry and machine table for maximum rigidity and strength to provide high speed machining in all 4 axis

Product Detail


Product Tags

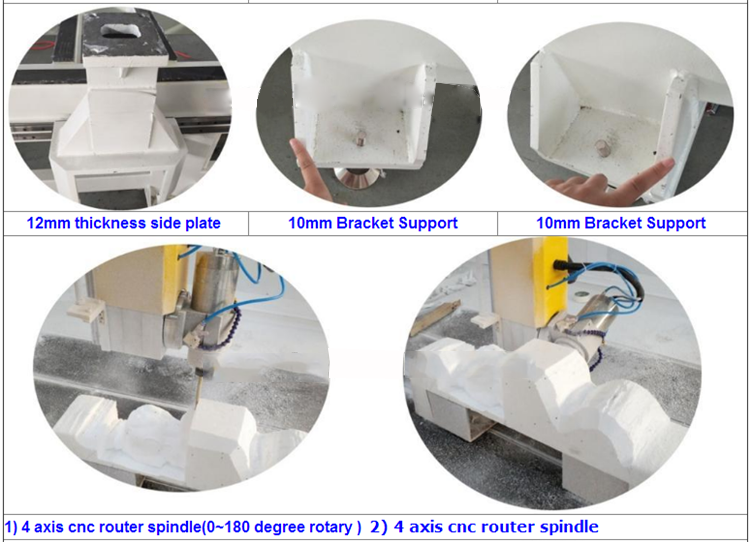

EPS foam CNC router cutting machine with 3 axis for normal cutting and carving, 4 axis swing head for mold carving and cutting, 4th axis rotary for cylinder carving and cutting, now the 3 axis CNC foam router cutting machine for sale at cost price.

Demonstration Video

Product Descriptions

1 (4)

3 Axis EPS Foam CNC router Cutter Machine Features:


1. The Z axis can be heighten to 1000mm, which widens the working region so as to fit the large three-dimensional curved surface processing.

2. Big steel square tube structure,by seamless welding and hardening treatment, guarantee it to be strong, reliable and durable, with large bearing capacity and long working life.

3. EPS foam cnc router equipped with self-lubricating blocks,with four-row ball bearing and widened rail,so it can get equal force in all directions, to guarantee mechanical precision and strength.

4. Many optional configuration and OEM service available.According to your requirement, different configurations of foam cnc router will be offered.

5.Imported high-precision ball screw and Taiwan Hiwin linear square rails, which move smoothly to ensure the machining precision.


3 Axis EPS Foam CNC Router Cutter Machine Technical Parameters:


Model APEX1325F
Working area 1300*2500*600mm
Table size 1300*2500mm
Travelling speed 12000mm/min
Working speed : 10000mm/min
Spindle power 6KW
Spindle speed 0-18000rpm/min
Transmission X/Y rack and pinion, Z ball screw
Driving motor Stepper motor(servo motor for choose)
Control System DSP (Nc studio for choose)
Voltage AC380V/50HZ
Testing Running Environment Temperature: 0 degree~45 degree
Software Artcam/Type3, other CAD/CAM
Weight 2300 KG


3 Axis EPS Foam CNC router machine Applications:


All kinds of foam, EPS, polystyrene, polyurethane, styrofoam, polyfoam, wood, composite board, alucobond, PVC, plastic, acylick, organic glass, aluminum, copper and other materials.

EPS foam CNC router machine is mainly used in these industries:

Die and mold industries: Carving various large nonmetallic molds, especially for auto foam mold, wooden molds for ship,aviation and train. It is also suitable for precise manufacture of casting wooden mold, food mold (such as mooncake mold) and other molds,etc.

Musical instrument industry:Carving large 3D curved surface instruments and contour cutting.


What 3 Axis CNC Foam Router Machine can do?


组合 (2)


International Shipping Around the World


All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
