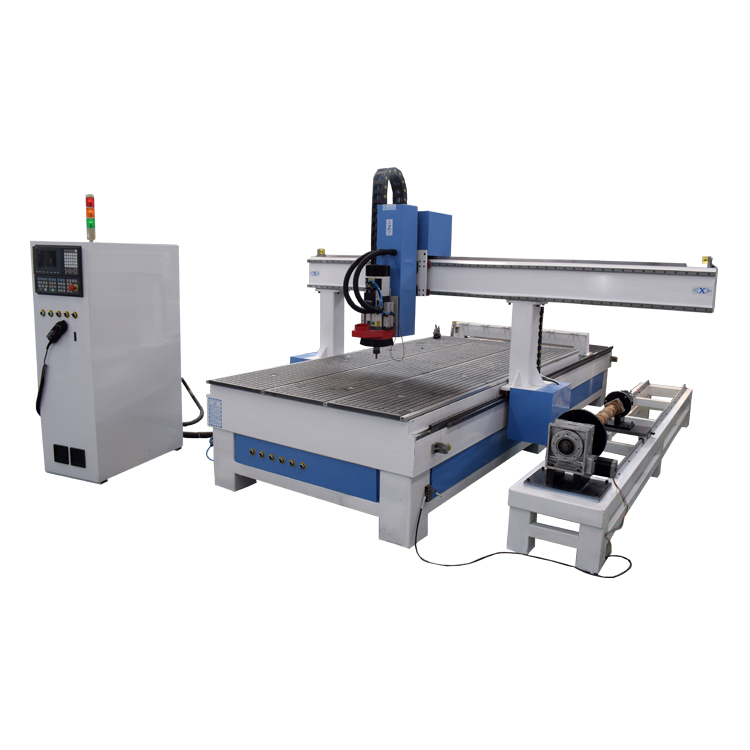

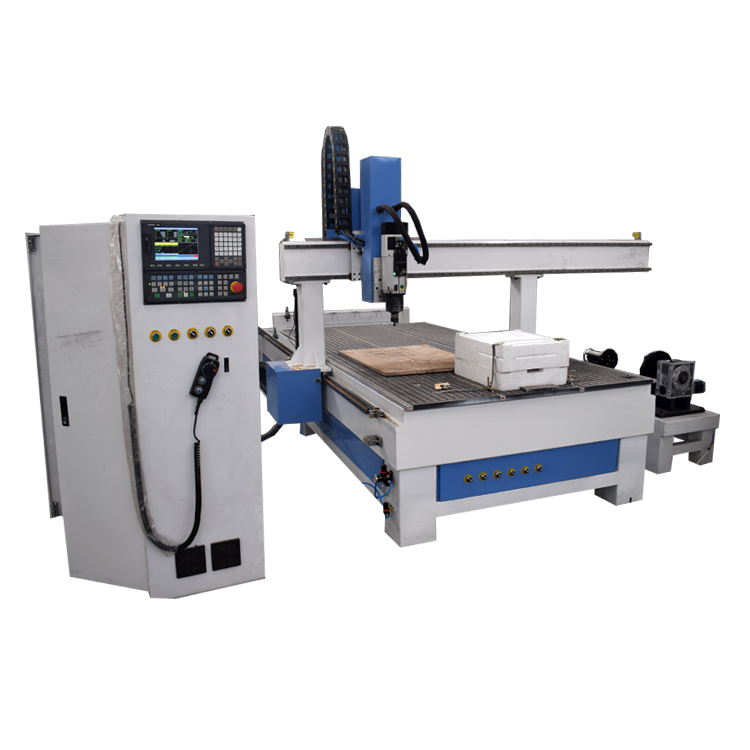

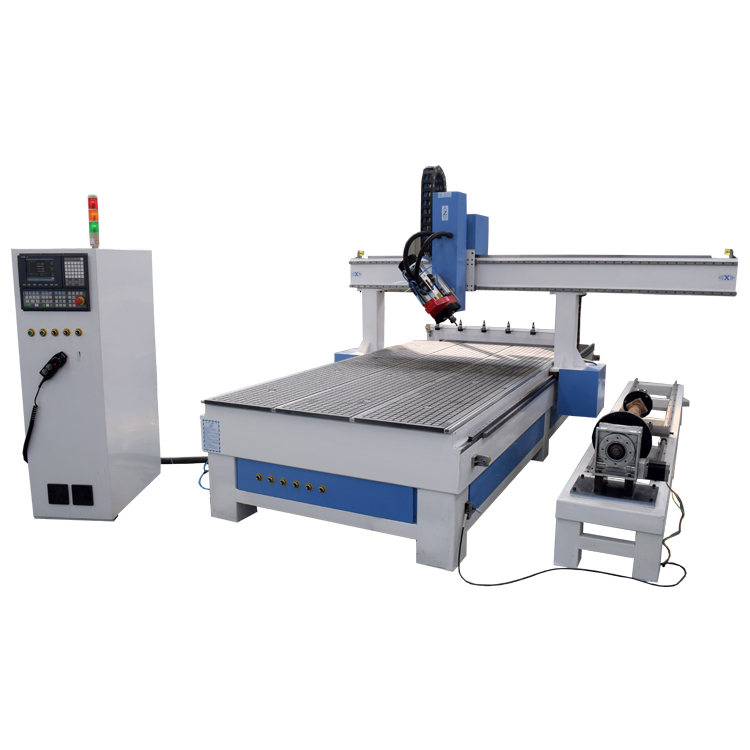

Professional Woodworking 4 Axis Atc CNC Router Engraving Machine for Cabinet Furnitures

Short Description:

1). The machine’s body is strong, high-precision, reliable and durable.
2). Imported high precision ball screw, which moving smoothly, to ensure the machine’s high precision .
3). Well-known HSD Auto Tools Changer spindle, strong cutting ability, low noise, to ensure the machine working for long time.
4). High-performance driven motor to ensure the machine’s high speed and accuracy.
5). Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages
6). Auto lubrication system and separated control system, easy to operate.
7). Perfect design, top quality accessories, to minimize the machine’s failure rate.

Send email to us

Product Detail

Product Tags

4 Axis CNC Router Standard Configuration

1.Working size: 3000*1500*400mm,spindle swing:+180°
2.Taiwan SYNTEC control system
3.Italy HSD 9.0KW air cooling spindle
4.Rotate head for spindle rotary
5.Japan YASKAWA servo driver and motor
6.Taiwan HIWIN linear guide
7.Helical rack and pinion for X,Y,TBI ball screw for Z axis
8.Japan Shimpo reducer for X,Y Axis
9.T slot vacuum table
10.Working voltage:380V,3PH/220V,3PH 50HZ/60HZ

4 Axis CNC Router Technical Specification:

4 AXIS CNC ROUTER
Model	APEX1325-4 Axis	APEX1530-4 Axis	APEX2030-4 Axis	APEX2040-4 Axis
Working area	1300* 2500	3000* 1500mm	3000 *2000mm	4000 *2000mm
Z axis height	400mm, 500mm, 600mm, 1000mm optional
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z Repositioning Accuracy	±0.03mm
Table surface	Vacuum Combined T-slot
Frame	Big steel tube structure
Control system	Weihong NK260/ 280controller or Taiwan Syntec control system
Spindle Power	9.0KW HSD air cooled spindle
spindle rotating speed	24000r/min

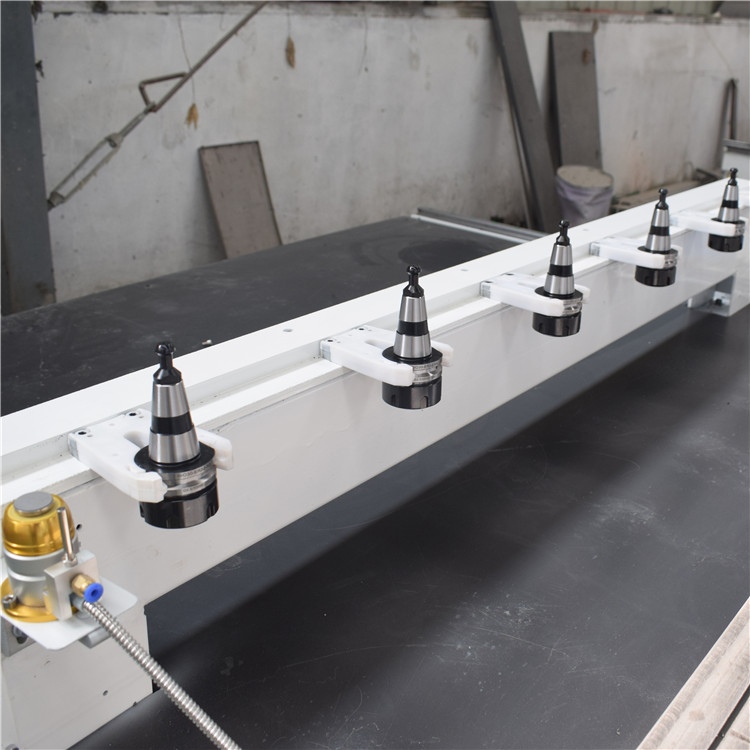

Tool type	Linear type 6tools or 8tools
Guide rail	HIWIN square guide rail
Motor	AC Yaskawa servo motor/ Pneumatic
Max. Power Consumption	(Without Spindle) 4.5Kw
Max. Rapid Travel Rate	50000mm/min
Max. Working Speed	30000mm/min
working voltage	AC380V/3PH/50HZ
Command Language	G Code
Computer Interface	USB
Operational System Software	Type 3/Artcam
Gross Weight / Net Weight	2400KG / 2200KG

4 Axis CNC Router Advantage

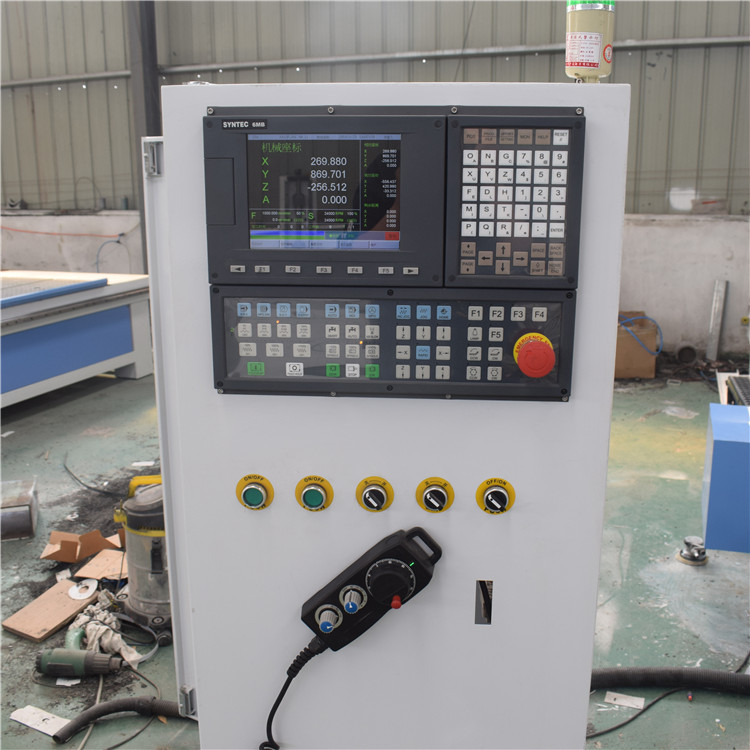

#Controller:
Syntec controller system
1.With separate control board,easy and convient to operate.
2.More than 20 years experience on cnc,with mature technology

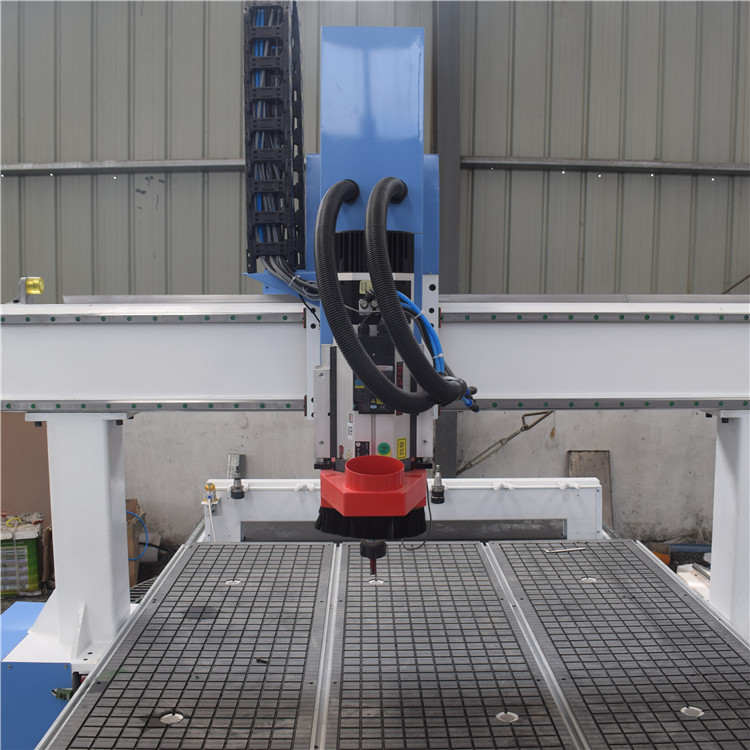

#Spindle:
Italy 9.0kw Spindle
1.Change tool automatically,save time and labor.
2.Strong power and long lifetime.the rotate speed max to 24000rpm

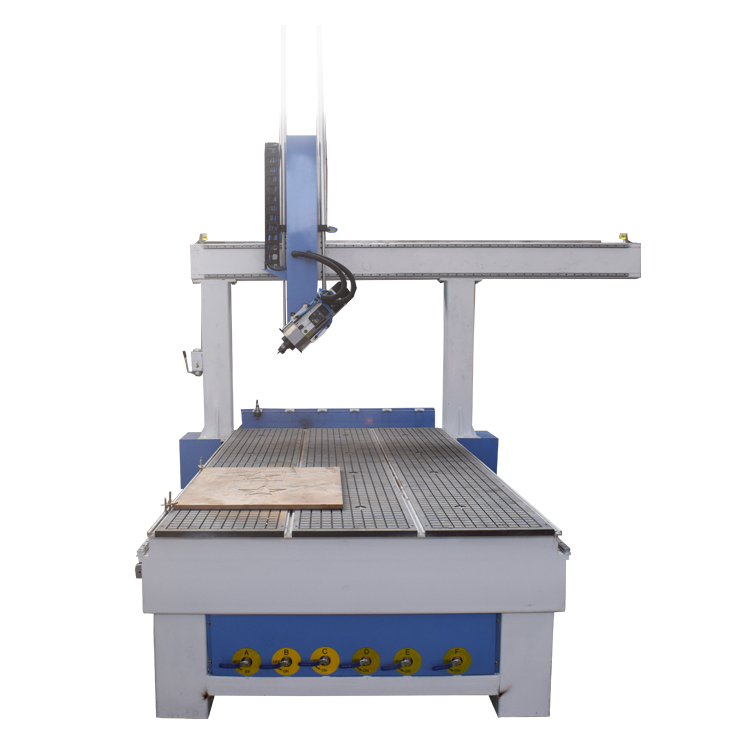

#Rotate head:
Rotate head
1.Make spindle rotate at C axis to 180°,suitable for side drilling and cutting

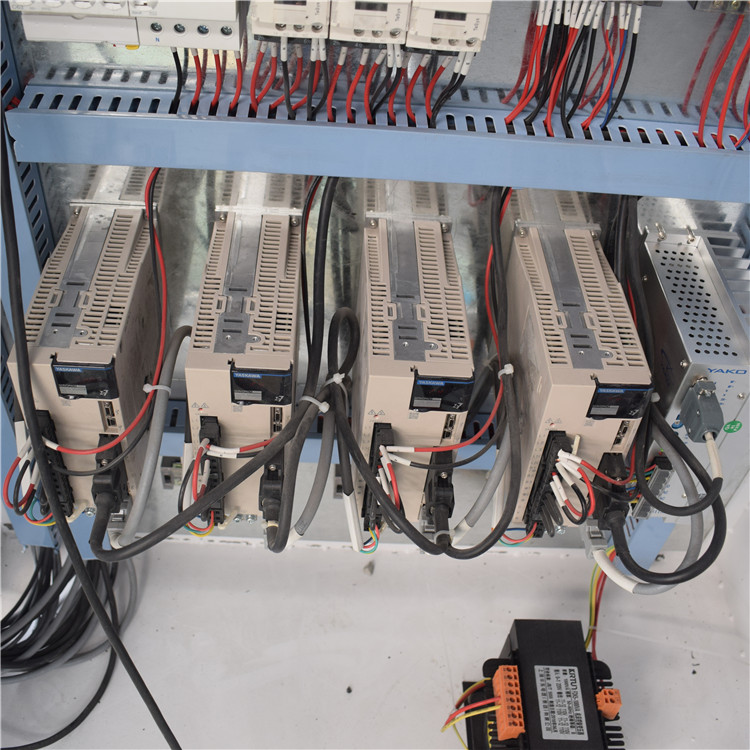

#Servo system:
Japan YASKAWA Servo driver and motor
Optional Panasonic servo motor
#Reducer:
Japan Shimpo Reducer
The world best reducer brand.Used for replace traditional rack and belt,to make machine more powerful and stable
#Tool sensor :
Auto tool Calibration

4 Axis CNC Router Appliation industry and materials
1) Mold: wood,wax, wood, gypsum,foams,wax
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling
tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

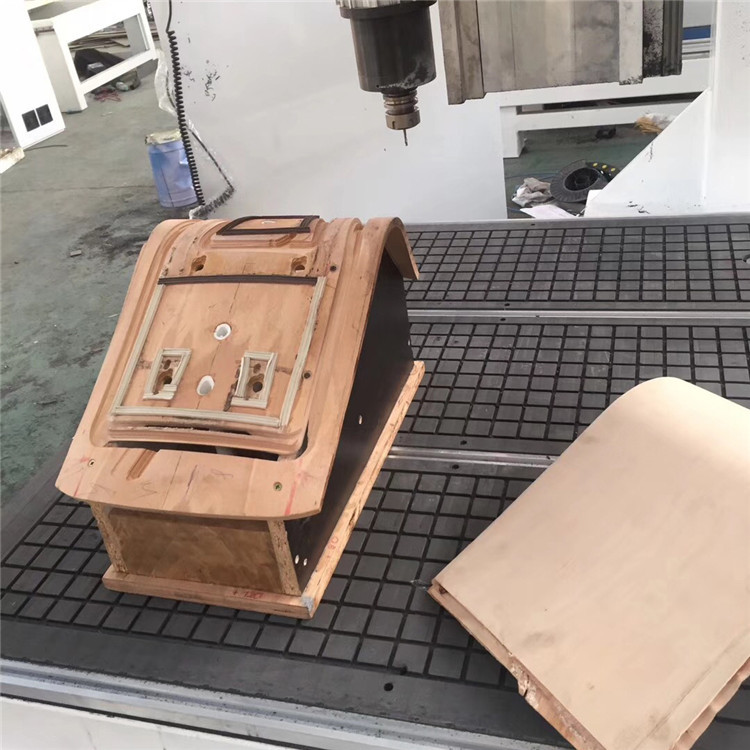

4 Axis CNC Router Samples
