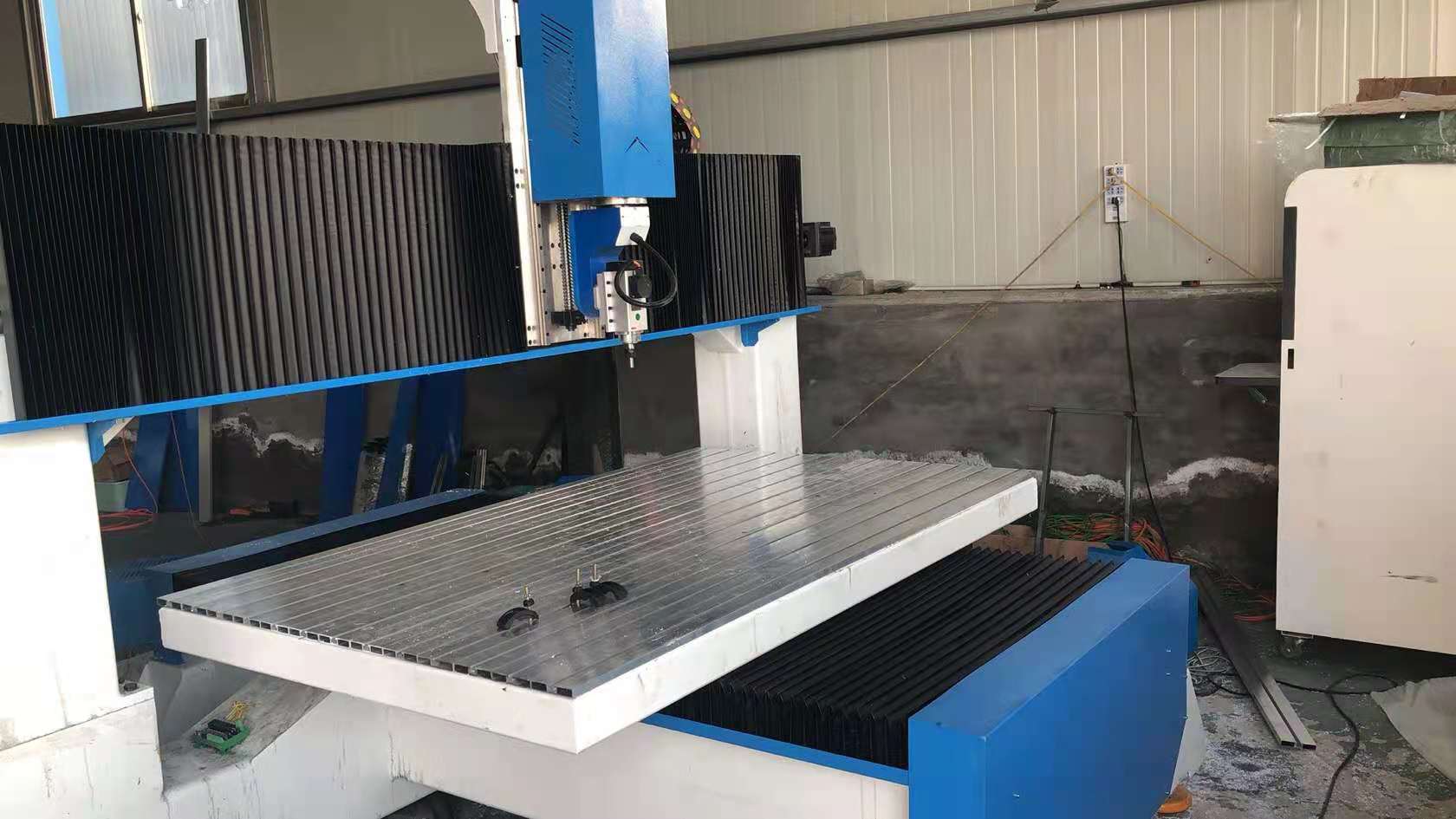

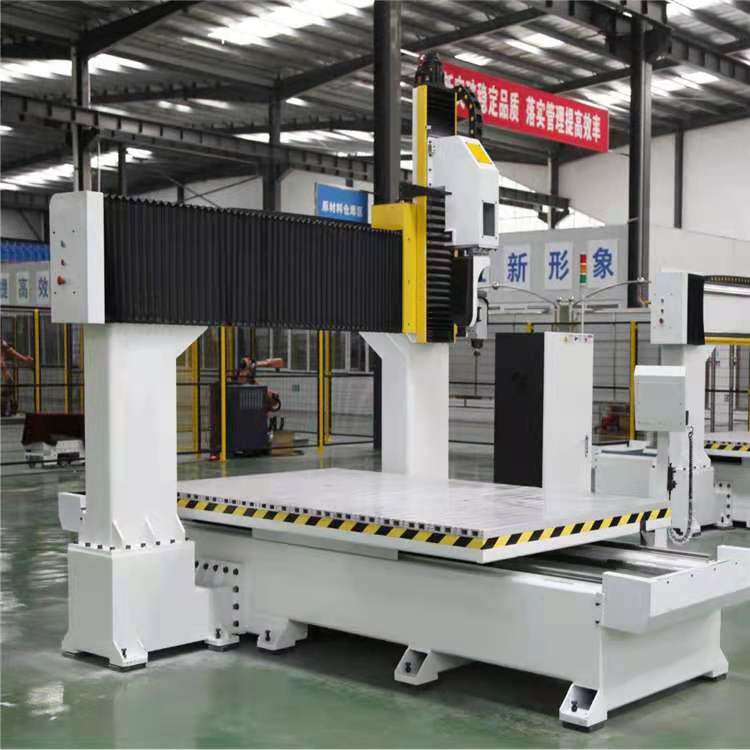

China Cnc Manufacture 1520 5 axis cnc router cnc engraving machine
|
Technical Parameters
|
|
|
Model
|
APEX1520 |
|
X Y working area
|
2000x200mm
|
|
Z working area
|
800mm
|
|
C Axis
|
±245°
|
|
A Axis
|
±120°
|
|
Spindle
|
Italy OMALAT 15KW
|
|
Working mode
|
Japan YASKAWA servo motor
|
|
Operating system
|
Syntec 610MA-5 5 axis control system
|
|
Fixing
|
By Clamp
|
|
XYZ drive
|
Ball screw
|
|
Guide rail
|
Tiwan HIWIN
|
|
Driver
|
Japan YASKAWA
|
|
Gear reducer
|
LIMING
|
|
Power supply
|
380V, 3ph, 50Hz
|
|
Lubrication
|
Automatic oil lubrication
|
|
Balance system
|
Air cylinder
|
|
Software
|
UG, Powermill, Alphacam,etc
|
|
Customized sizes and upgrades for the components are available on request.
|
|

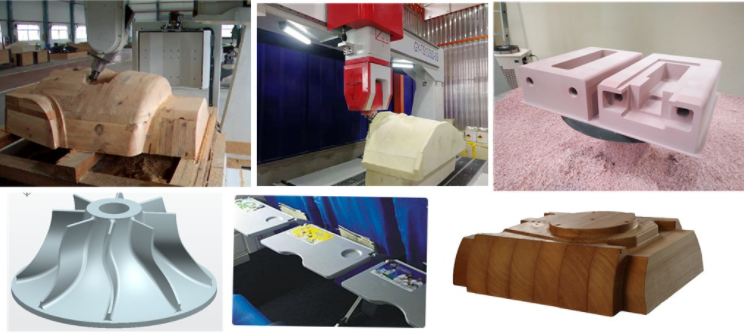

Applicable industries:
1. Mold industry: wooden ship model, car model, wooden model aviation and many other wooden model.
2. Foam industry: can carve and cut on any kind of foam with 2D and 3D dimension processing.
Processing effect: Engraving, cutting, milling, drilling, relief, shadow, enchasement and so on.
Applicable materials: Wood, EPS (any kind of foam) and other non-metallic materials.
Processing effect: Engraving, cutting, milling, drilling, relief, shadow, enchasement and so on.
Applicable materials: Wood, EPS (any kind of foam) and other non-metallic materials.
