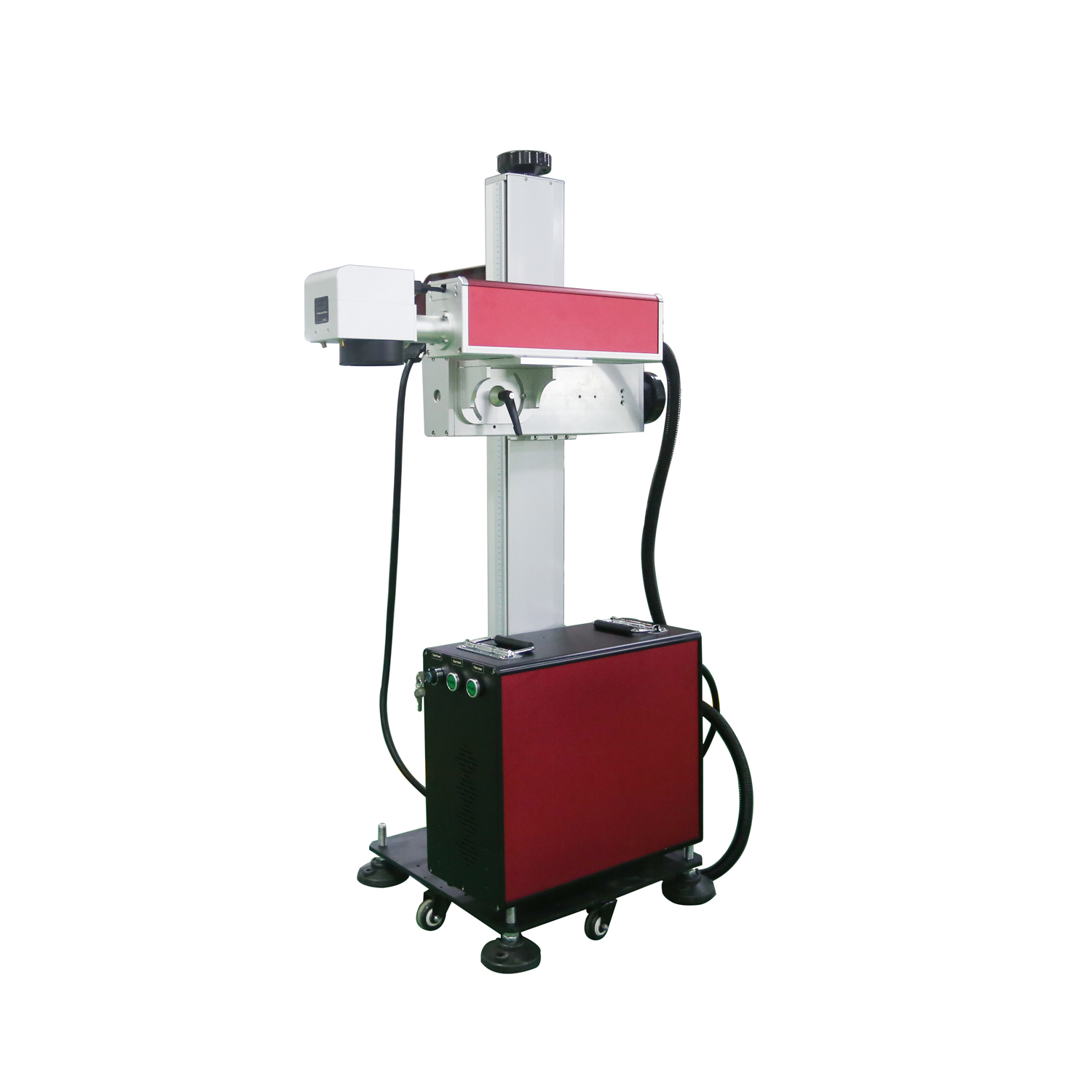

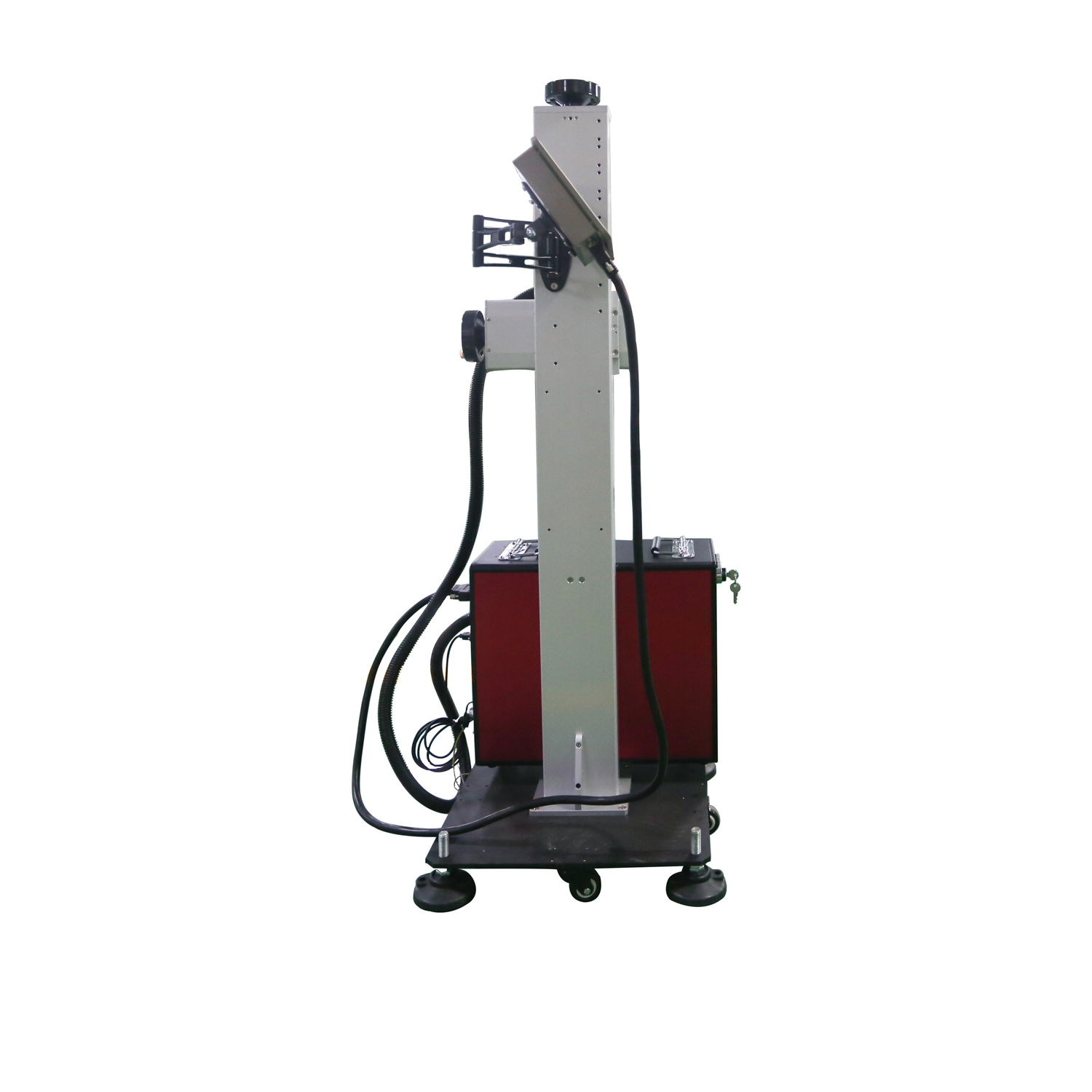

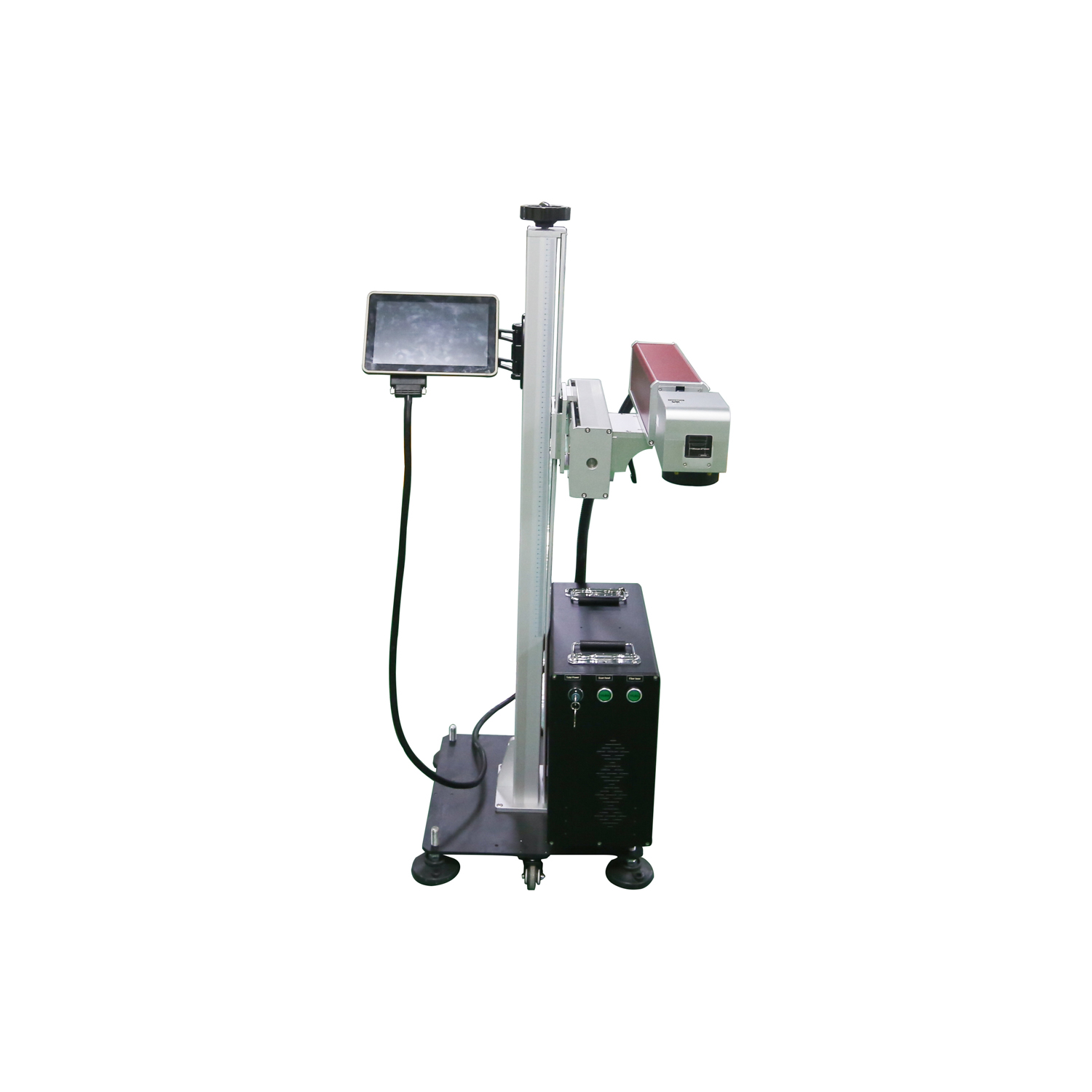

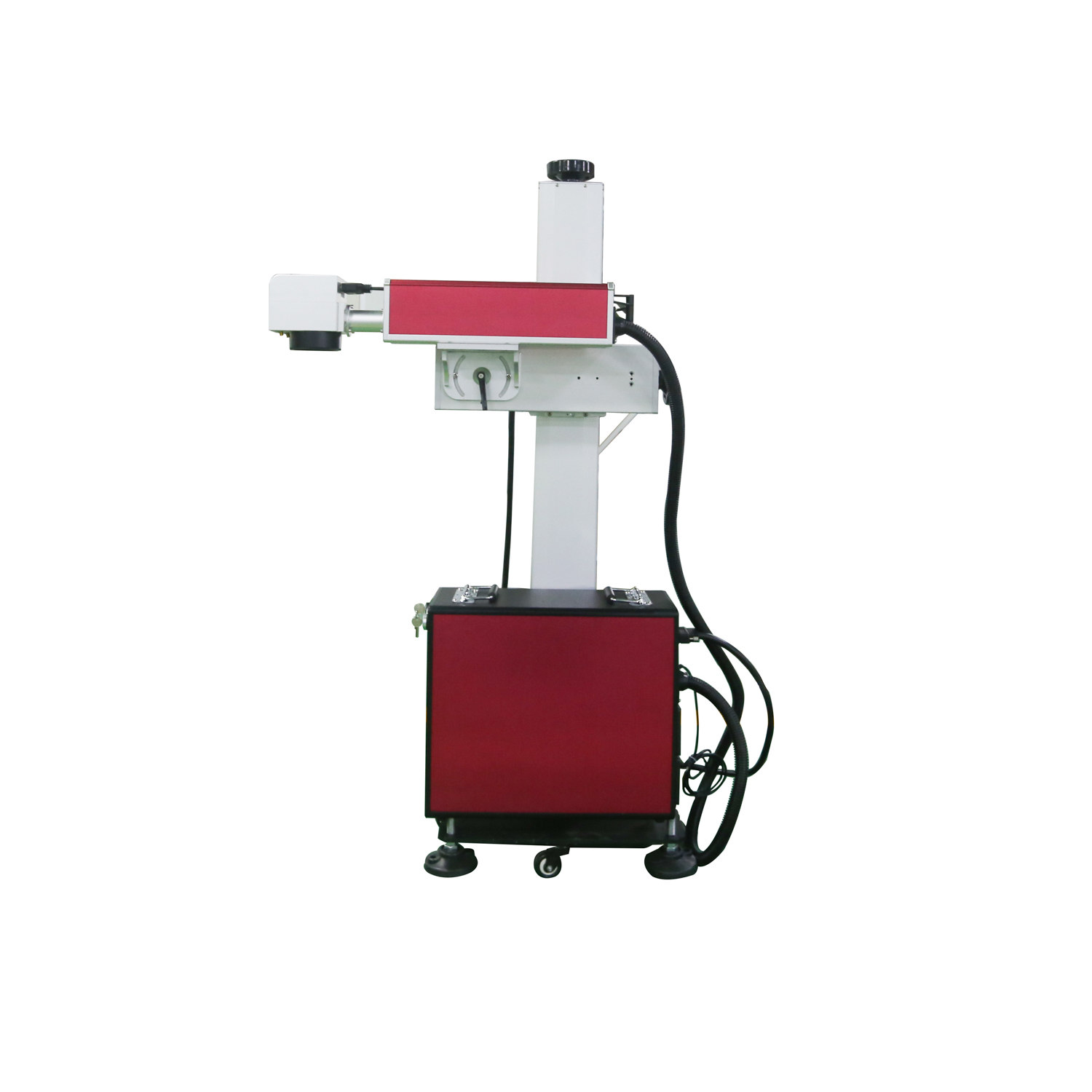

Conveyor Belt Laser Pen Laser Engraving/Marking Machine
Pen laser engraving machine is also called as pen laser marking machine, laser pen engraving machine, pen laser engraver, laser pen engraver, which adopts customized conveyor belt covered by pen modules, you just need to put the pens in the modules, they will be engraved automatically by the laser pen engraving machine.
Product Descriptions
Features of Pen laser engraving machine:
1. The pen laser engraving machine is permanent marking process, which stands against wiping, scuffing, impacts, wear and tear, can only be removed by grinding or surface removal. So your pen logos, brands can be permanent exist without fading.
2. The pen laser engraver is non-contact process. It does not produce any deformation in working.
3. The pen laser engraver machine can be used for marking logo, serial number, bar code and other beautiful patterns on any metallic materials such as stainless steel, titanium, brass, gold, silver, aluminum and most of nonmetal materials such as plastic pens, rubber pens, etc.
4. The laser pen engraving machine can choose 20W, 30W, 50W, 100W Raycus fiber laser source. It can also choose MOPA laser source for color marking on pens with stainless steel and titanium materials.
5. The pen laser pen marker with conveyor belt can automatic count how many pens has marked.
6. The laser marker for pen with conveyor belt can reduce labor cost, tool cost, consumable cost, etc. It is one green laser machine without any pollution.
Technical Parameters of Laser Pen Engraving Machine:
| Model | APEX-30F |
| Laser Power | 30W |
| Laser Wavelength | 1064nm |
| Fiber Cable Length | 2m |
| Pulse Width | 90-130ns |
| Repetition Frequency Range | 30-60kHz |
| M2 | <1.5 |
| Max.Single Pulse Energy | 1mJ |
| Output Power Stability | <3% |
| Output Beam Diameter | 7 |
