Metal Cutter Fiber Laser Cutting Machine Manufacture

Short Description:

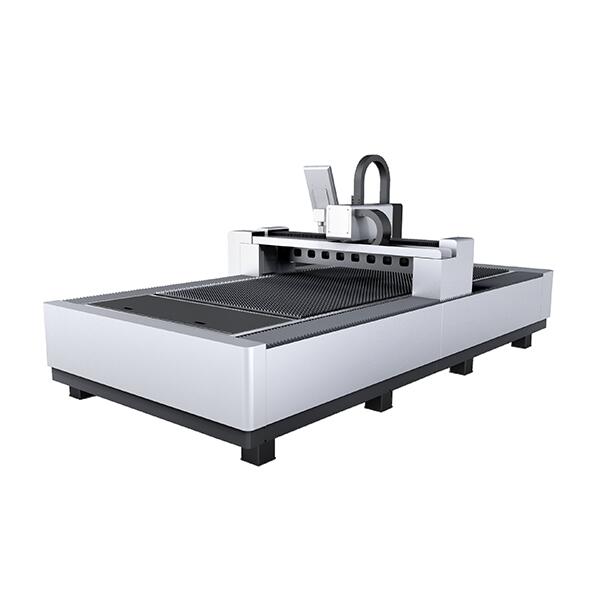

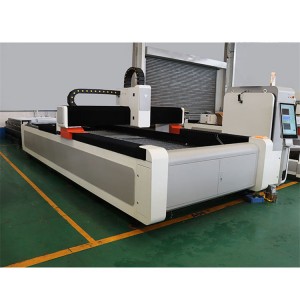

APEX-1530HCK

High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.


Product Detail

Product Tags

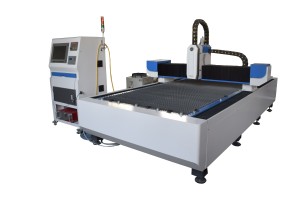

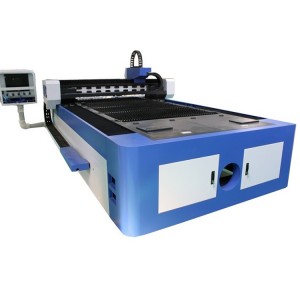

Features of the Fiber Laser Cutting Machine

  • High rigidity heavy chassis, reducing the vibration generated during the high-speed cutting process.
  • Gantry double-drive structure,with imported Germany rack & gear transmission system, which improves the production efficiency.
  • High-performance cast aluminium guide rail, after infinite aalysis ,which accelerates the cicular arc cutting speed.
  • High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.
  • The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.
  • The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.
  • It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.
  • Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys

Apart from our own products, APEX also provide OEM services and accept customized orders to suit your needs.

Below is the common parts for your reference.

Control System
Brand: CYPCUT (Top 1 in China)
Details: Auto edge seeking function and flying cutting function, intelligent typesetting
Supported Format: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT,NC,GBX etc...

Fiber Laser Source
Brand: Raycus
100,000 hours life time, more stable, cost-efficient, free maintenance
The best brand in the world, quality and timely service have assurance
The gold partner with IPG laser source company

Laser Head
Brand: Raytools laser head
Advantages:
High Precision: without manual, zero fault
High Effectiveness: Without manual,Save time
High Safety: Anti-collision design, height adjustment high sensitivity

Servo Motor
Brand: Japan YASKAWA & PANASONIC
X axis: one set Japanese YASKAWA servo motor and driver
Y axis: one set Japanese YASKAWA servo motor and driver
Z axis: one set Japan PANASONIC servo motor and driver
Higher power of motor and drive makes higher moving speed for laser head.

Parameters of the Fiber Laser Cutter

Technical Parameters

Laser Type Fiber laser
Laser Brand IPG / Raycus
Laser Power 1000W / 2000W / 3000W
Working area  1500mmX3000mm / 2000mmX4000mm /
2000mmmX6000mm
Working Table Fixed Working Table / Pallet Changer
Control System PMAC full-closed loop servo control
Driving Mode Double ball screw driving / Double gear rack driving
Idle/Processing Speed 120m/min / 60m/min
Positioning Accuracy 0.05mm
Protection System Enclosure protection
Laser Head Precitec / Raytools
Power Supply AC220V ± 5% 50 / 60Hz / AC380V ± 5% 50 / 60Hz
Total Power 6KW~20KW
Floor Space  5.6mX3.2m (fixed table) / 6mX4.6m (shuttle working table)
/ 8.5mX4.2m (pallet changer)
Standard Collocation  Metal nesting software, dual-pressure gas route of 3 kind gas sources,
dynamic focus, remote controller, etc.

Auxiliary System

Cooling System  Dual temperature dual control water chiller
with purification system
Lubrication System Automatic lubrication
Laser cooling system Horizontal air conditioning
Auxiliary gas system dual-pressure gas route of 3 kind gas sources
Laser cutting head Dynamic focus
Circuit and protection system Independent work station

Software System

Software Shanghai Cypcut Software
Supported Format PLT, DXF, BMP, AI, DST, DWG, etc.

Customers Samples Photos

APPLICATIONS
Widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.

fiber-cutter-sample3

MATERIALS
Fiber laser cutting machine suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
