50w Fiber Laser Marking Machine for metal and non metal

Short Description:

Fiber laser marking machine can be used for marking logo, serial number, bar code and other beautiful patterns on any metallic materials such as stainless steel,
titanium, brass, gold, silver, aluminum and lots of engineering plastic products such as mobile cover & charger, consume electronics housing and etc.
Our laser marking machine adopts the best quality fiber laser source in the world. We have 10w, 20w, 30w and 50w for optional.
The estimated life for laser source will be around 100,000hours, which is 10 times longer life than diode laser and 2 times longer life than other fiber laser source.

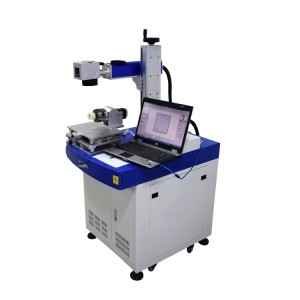

This Portable desktop Fiber metal Laser Marking Machine is very easy to use, small, light, moveable. It is your best choice.

Send email to us

Product Detail

video

Product Tags

50w fiber laser marking machine is used for marking on the iphone back logo, TV controller keyboard, Laptop keyboard, Mobile phone keypad, plastic translucent keys, etc.

Product Descriptions

MOPA Laser Marking Machine

Features of backlit keyboards laser marking machine with MOPA fiber laser:

1. MOPA laser marking system, the most advanced fiber laser technology.

2. Longest lifetime, more than 10,000 hours, free maintain.

3. Good quality of the laser beam, high pulse energy, stable performance.

4. Double red light focusing, digit scan head, high accuracy, high speed.

5. Air cooling system, small size, firendly design, easy to operate.

6. Widely application, most of the metal materials and nonmetal materials support, suitable for precise strips pattern marking.

Technical parameters of Laptop backlit keyboards laser marking machine with MOPA fiber laser:

Model	APEX-20FM-Desktop
Output Power	>20W
Laser Wavelength	1064nm
Fiber Cable Length	2m
Pulse Width	6-250ns
Repetition Frequency Range	40-2000kHz
M2	<1.3
Max.Single Pulse Energy	0.5mJ
Output Power Stability	<5%
Output Beam Diameter	7
