2021 new design Linear ATC Stone CNC Carving Machine

Short Description:

It is mainly used in engraving stone, marble, granite, black stonge, bluestone, jade stone, crystal, glass, organic glass Floor tile and ceramic tile, plastic, chemical synthesis board, PVC board, bamboo ware, aluminum-plastic panel, metal, etc., line carving, 2D engraving, 3D engraving, 3D relief, Cutting, drilling, polishing, etc.

Send email to us

Product Detail

video

Product Tags

Linear ATC stone CNC carving machine APEX1325C is used for carving stone, marble and granite, the ATC stone CNC carving machine adopts linear automatic tool changer which has 6 tools to be changed for stone carving.

Product Descriptions

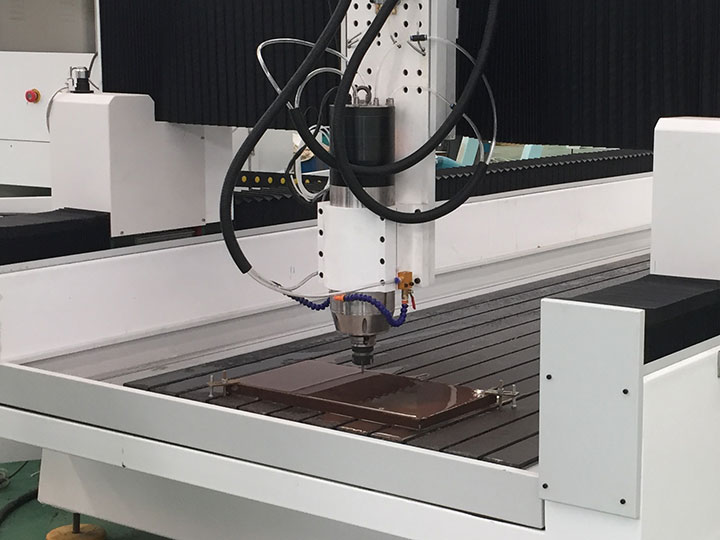

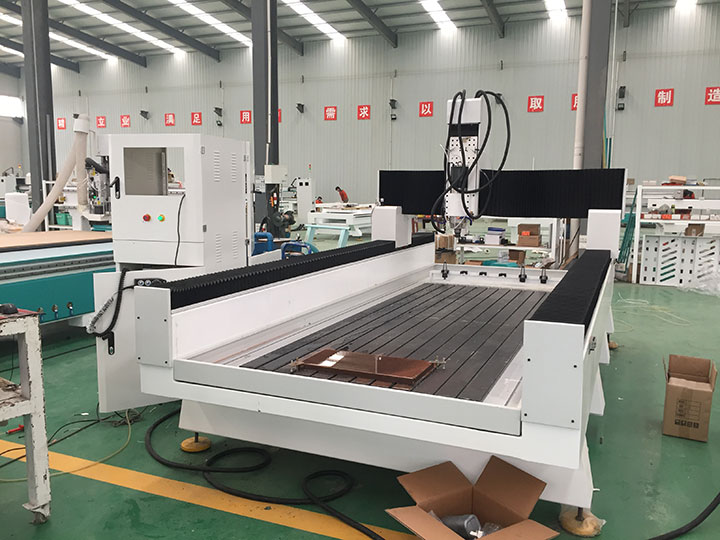

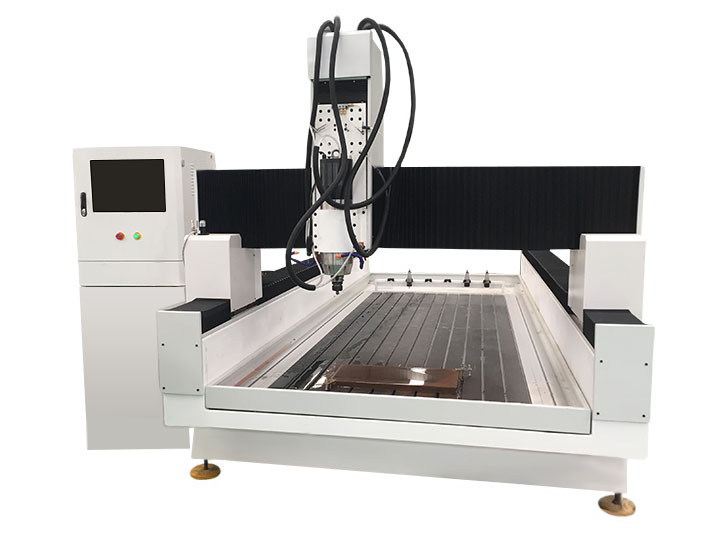

linear ATC stone CNC carving machine

Features and Advantages of Linear ATC Stone CNC carving machine:

1. Linear ATC stone CNC carving machine bed is welded by the thick wall steel seamless tube, high temperature tempering treatment, high rigidity, bearing strength better .
2. Dual servo motor drive for Y-axis, moving stably.
3. 6-8 pcs tools can be changed for work, high working effeciency.
4. DSP controller or Nc studio control with good software compatibility, suitable for Type3, Artcam, Castmate, Ucanam.
5. Chinese 5.5KW-11KW water cooling spindle, strong cutting strength, high efficiency.
6. High precision rack transmission, fast speed.
7. imported linear square rails, dual four slider, loading capacity, smooth operation and high precision, long life, under the knife precision.
8. Well selected electrical accessory, let the failure rate to the minimum.
9. With water and automatic water supply and cooling system.
10. Dustproof and waterproof design, better to protect the machine driving part.

Technical Parameters of Linear ATC Stone CNC Carving Machine:
