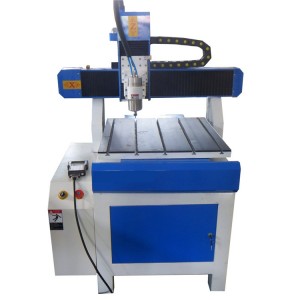

Iron Steel Copper Metal Mould Cutter Engraver 6060 CNC Milling Machine

Short Description:

CNC Milling Machine Main features
1. Whole cast iron structure, the body will not transform for long use.
2. X Y Z use 25mm HIWIN linear square guide rail, it is more stable than the normal round one.
3. X Y Z transmission use high precision ball screw, avoid the spindle suddenly up and down.
4. Gantry fixed,table move design make the machine more precise.
5. DSP controller system,higher precision, easier and more convenient to operate.optional TK100 / Ncstudio/ Syntec control system


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    video

    Product Tags

    Big size CNC router for aluminum composite panels (ACP) can cut aluminum plate, aluminum sheet, aluminum parts with high speed and high accuracy. Now the best CNC router for aluminum on sale at an affordable price.

    Demonstration Video

    Product Descriptions

    2 (2)

    Features of CNC router for Aluminum:

    1. Whole cast iron structure, the body will not transform for long use.
    2. X Y Z use 25mm HIWIN linear square guide rail, it is more stable than the normal round one.
    3. X Y Z transmission use high precision ball screw, avoid the spindle suddenly up and down.
    4. Gantry fixed,table move design make the machine more precise.
    5. DSP controller system,higher precision, easier and more convenient to operate.optional TK100 / Ncstudio/ Syntec control system
    6. Japan yaskawa servo motor and driver, break-point memory makes sure accidental workng and avoid the waste of materials.
    7. X axis has steel cover,keep the machine clean and long life.

    Technical Parameters of CNC Router for Aluminum:



    Standard Configuration
    Model & Name APEX6060
    Brand APEX
    Working Area 600*600*200mm
    Control system DSP / NCstudio control system
    Spindle 3.0KW water cooling spindle
    Motor and drivers Leadshine servo motor and drivers
    Rail guide Taiwan 25 HIWIN square rails
    Ball Screw Taiwan TBI grinding ball screw
    Inverter Fuling inverter
    Electronic components France Schneider electronic components
    Software Artcam software
    Limit switch Japan Omron limit switch
    Working Dictate G-code
    Water cooling system Included
    Technical Parameter
    Working area 600*600*200mm
    Spindle power 3.0KW water cooling spindle
    Spindle speed 24000RPM
    Working Accuracy (mm) ≤0.01mm
    X,Y,Z Traveling Positioning Accuracy (mm) ≤0.01mm
    Max. Idling Speed 60m/min
    Max. Working speed 40m/min
    Commend Code G Code
    Diameter of Cutter φ3.175-φ12.7
    Cooling Mode Water-cooling
    Working voltage 380V 3P 50HZ



    Applications of CNC Router for Aluminum:



    Big size aluminum composite panels (ACP) cutting CNC router is mainly used for cutting aluminum composite panels,aluminum plate, aluminum sheet, aluminum parts, wood, acrylic, etc. The aluminum CNC router is widely used in decoration industries, solid furniture, mahogany furniture, MDF paint door, solid wood door, composite door, cupboard doors and windows, beside cabinets, folding screens, furnitures and so on.



    CNC Router for Aluminum projects:



    CNC router for aluminum projects

    CNC router for aluminum project

    CNC router for aluminum cutting projects

    CNC router for aluminum cutting project



    International Shipping Around the World



    All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
