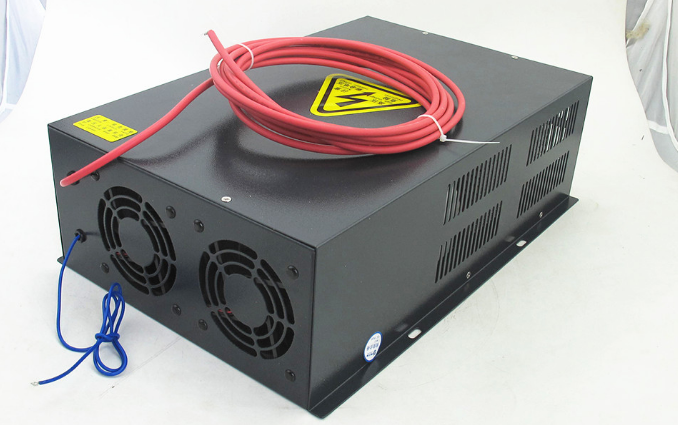

HY-W200 laser source for 180/200w laser co2 tube

Short Description:


Product Detail

Product Tags

200w co2 power supply HY-W200 Main Feature



1. Very wide range of Input Voltage: AC110-AC220V



2. Current has high stability: when the input voltage is unstable, current change rate less than 1%.



3. Good compatibility: It can be applicable to 180w-200w EFR/RECI/YONGLI,WEEGAINT/SP ect brands co2 laser tubes manufactured by different factories.



4. This Power Supply has theTESTbutton which can test output laser manually.



5. The Laser Power Supply has high Output Power, good stability; this can prolong laser tube’s service life



6. HY-W200 Application: 180w-200w co2 laser tube cutter and engraver for cutting and engaraving non metal materals as Sculpture and cut acrylic, fabric, double color sheet ,rubber etc.



Technical Data





nput Input Voltage AC110V-AC220V
AC frequency 50Hz/60Hz
Max input power 1000w
Max output current 8A
Output Max Output Voltage DC 45KV
Max Output Current DC 35mA(can adjust higher if you need it)
Efficiency ≥90 percent (full load)
MeanTime Between Failure (MTBF) ≥10000 hour
Response Speed ≤1ms(from the switch Signal is given to the output current up to 90% of the setting current)
Withstand Voltage Input-Output, Input-Shell: AC1500V 10MA 60S; Output negative is connected with machine shell.
Environment

Operating Temperature:-10~40°C),Relative Humidity (RH)≤90 percent

Cooling Way Force-Air Cooling (FAC)
Dimension L×W×H=363*251*112 (mm)
Color Black
