4 Axis Atc CNC Router Wood Engraving Cutting with Automatic Tool changer
4 Axis Atc CNC Router Wood Engraving Cutting with Automatic Tool changer is used for side slot milling, drilling, cutting and keyhole, the 4 axis CNC router adopts 9KW HSD automatic tool changer spindle with 8 position rotary carousel tool holder, which is suitable for processing on different?surface.
Product Descriptions
Advantages of 4 Axis CNC wood router:
1. Big steel tube welded structure, after aging and tempering treatment, reliable and stable and not easy to deformation.
2. Top-quality components, HSD 4 axis ATC spindle, Delta inverter, TBI ball screw, Yaskawa servo motors, Syntec control system and so on. Long-time working time, high precision and efficiency.

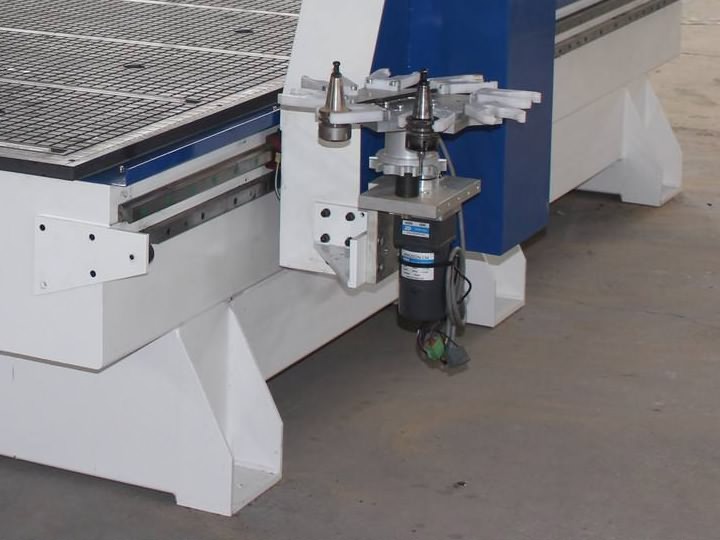

3. Carrousel Tool Magazine system with 8 forks and tool holders , which is loaded with the spindle, make the 4 axis wood CNC machine change tools quickly and save time.
4. Many optional configuration and OEM service available. According to your requirement, different configurations will be offered.
Features of 4 Axis CNC wood router:

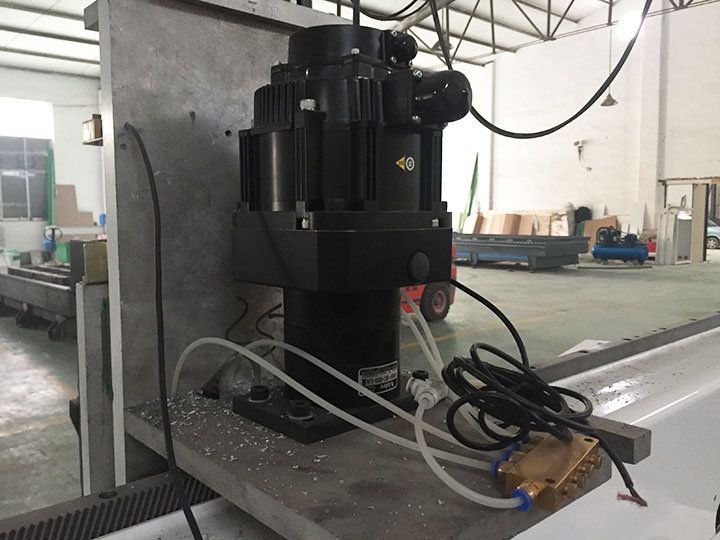

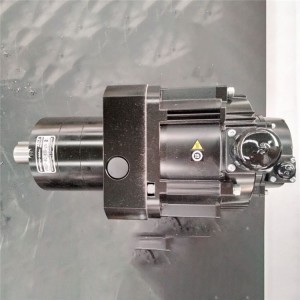

1. HSD spindle: original famous brand from Italian, you also can choose Hitech spindle and Chinese HQD spindle.
2. SYNTEC control system: from Taiwan with high performance and competitive price.
3. Yaskawa servo motor and drives: from Japan with high precision and long life.

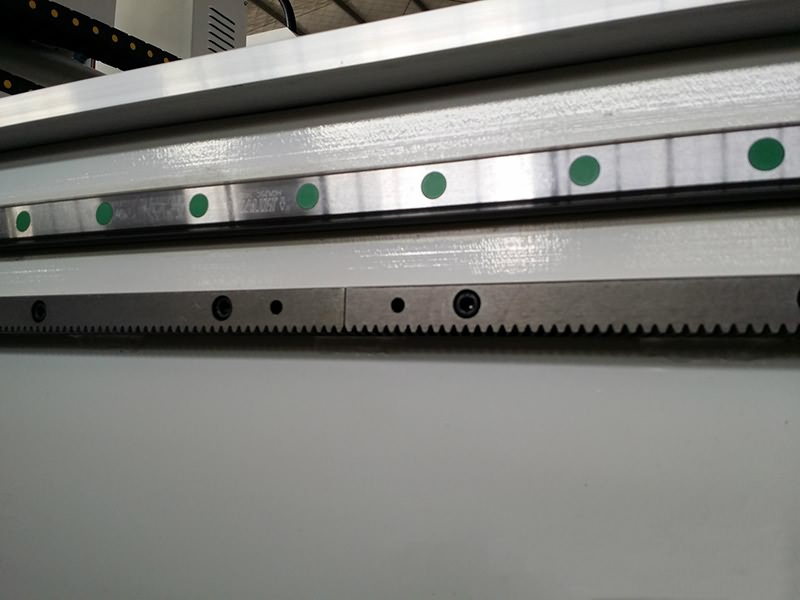

4. HIWIN linear guide: from Taiwan, it is used for linear reciprocating stadium.
5. Working area: 1300*2500*400mm, C Rotary Axis: 180 degree.
6. Whole welded steel structure thicken to 10mm.
7. Drive System: X, Y-Rack Z-Ball Screw, Z with high precision ball screw.

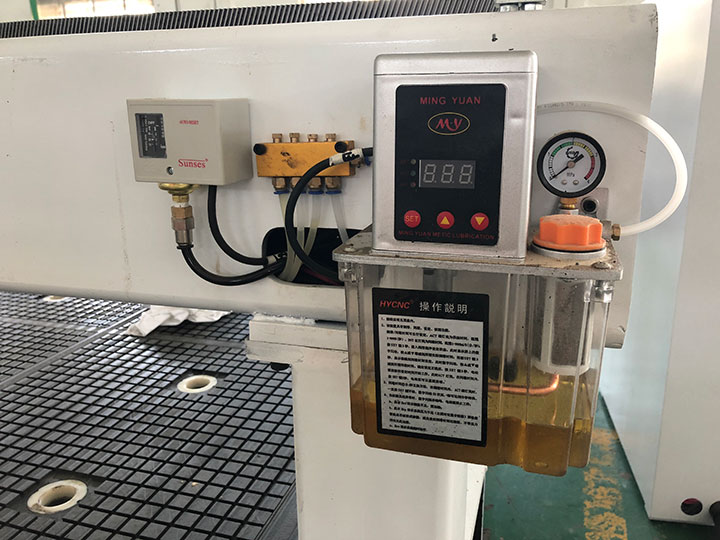

8. Automatic lubrication: To lubricate rail and slide block , make it run better.
9. Schneider electrical components: original brand from France.
10. Japanese Omron Switch with long life.
11. Shimpo Reudcer from Japan: More powerful and higher precision.
12. Vacuum & T-Slot table with Aluminum sheel: Use vacuum pump and clamp fixed materials.
Technical Parameters of 4 Axis CNC Wood Router:
| Description | Parameter |
| X,Y,Z working area | 1300x2500x300mm |
| Table size (mm) | 1450×2940mm |
| Resolution | ±0.03/300mm |
| Repeatability | ±0.03mm |
| Table Structure | T-slot and Vacuum combined |
| Lathe Structure | Welding steel structure |
| X,Y structure | Rack pinion, Hiwin linear rails |
| Z structure | Ball screw, Hiwin square rails |
| Rated power | 3Kw (without spindle) |
| Max. rapid | 33000mm/min |
| Max. Working speed | 25000mm/min |
| Spindle power | 9.0kw Italy HSD Spindle |
| Spindle speed | 0-24000RPM |
| Working mode | Japan yaskawa servo motor and drivers |
| Working voltage | AC380V/50/60Hz,3Ph(Option 220V,3Ph) |
| Command code | G code |
| Operating system | Syntec controlling system |
| Interface | USB |
| Memory | 128M |
| Tool holder | ER25 |
| X,Y working accuracy | <0.03mm |
| Software | Type3 UcancameV9, Artcam |
| Working temperature | Temperature:0 degree-45 degree Humidity:30%-75% (No Condensation) |
| Packing size | 3300X2100X2300mm |
| Net weight | 1750KG |
| Gross weight | 1980KG |
| Optional Spare Parts | Domestic water cooling spindle |
| Double bag dust collection,vacuum pump | |
| rotary |
