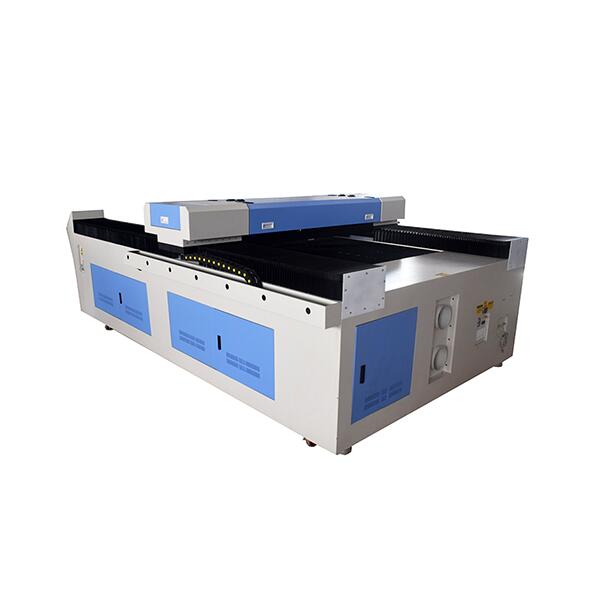

High Power Customized 300W/500W/600W Sheet Metal Engraver Co2 Laser Cutting Machine

Short Description:

APEX-1325CU
High power Co2 laser cutting and engraving machine, used to cut wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other non-metal materials. Can also cut sheet metals within 2 mm, such as Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Spring Steel, Iron, Galvanized Iron, Galvanized, Aluminum, Copper, Brass, Bronze, Gold, Silver, Titanium, etc.


Product Detail

Product Tags

Features Of Co2 Laser Cutting Machines

  • Adopt high efficiency laser tube and more stable beam
  • Restoring from power off, continuation on break point
  • Advanced leetro control system, professional motion control chip,consecutive high speed curve cutting and the shortest path selection function improve the efficiency
  • Red light positioning device indicates the location of laser head, eliminate the trouble about manual positioning
co2 laser tube

Laser Cutting Head

co2 laser head

Co2 Laser Tube

Parameters Of The Co2 Laser Engraving Machine

Machine Specifications
Model & Name APEX-1325CU
Brand APEXCNC
Working Area (X,Y Axis travelling) 1300mm*2500mm / 1500mm*3000mm
Working Table Honycomb and blade table
Control System Ruida 6445G
Power Supply 220V/50Hz (can be customized)
Min Line Width ≤0.10mm
Position Accuracy 0.01mm
Reputation Accurary 0.02mm
Cutting Speed 150mm/s
X,Y Transmission Method Rack and pinion
Cooling System Water Cooling
Graphic Format Support PLT, DXF, BMP, JPG, AI, ect.
Working Environment 0-45ºC

Customers Samples Photos

The Co2 Laser Cutter is specially made for the garment industry and the cutting of plush fabrics. It can accurately cut arbitrary graphics on various clothing fabrics, equipped with a feeding device to realize continuous and automatic cutting of roll materials.

APPLICATIONS
Advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, packaging and paper industry.

MATERIALS
Wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other non-metal materials.

Can also cut sheet metals within 2 mm, such as Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Spring Steel, Iron, Galvanized Iron, Galvanized, Aluminum, Copper, Brass, Bronze, Gold, Silver, Titanium, etc.



co2 sample
co2 cutting sample
