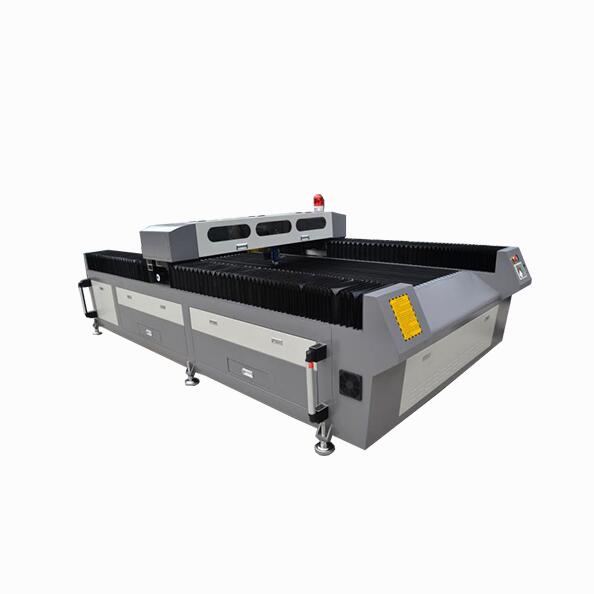

300W/500W/600W Sheet Metal Engraver Co2 Laser Cutting Machine
Features Of Co2 Laser Cutting Machines
- Adopt high efficiency laser tube and more stable beam
- Restoring from power off, continuation on break point
- Advanced leetro control system, professional motion control chip,consecutive high speed curve cutting and the shortest path selection function improve the efficiency
- Red light positioning device indicates the location of laser head, eliminate the trouble about manual positioning
Laser Cutting Head
Co2 Laser Tube
Parameters Of The Co2 Laser Engraving Machine
| Machine Specifications | |
| Model & Name | APEX-1325JH |
| Brand | APEXCNC |
| Working Area (X,Y Axis travelling) | 1300mm*2500mm |
| Working Table | Honycomb and blade table |
| Control System | Ruida 6445G |
| Power Supply | 220V/50Hz (can be customized) |
| Min Line Width | ≤0.10mm |
| Position Accuracy | 0.01mm |
| Reputation Accurary | 0.02mm |
| Cutting Speed | 150mm/s |
| X,Y Transmission Method | Rack and pinion |
| Cooling System | Water Cooling |
| Graphic Format Support | PLT, DXF, BMP, JPG, AI, ect. |
| Working Environment | 0-45ºC |
Customers Samples Photos
The Co2 Laser Cutter is specially made for the garment industry and the cutting of plush fabrics. It can accurately cut arbitrary graphics on various clothing fabrics, equipped with a feeding device to realize continuous and automatic cutting of roll materials.
APPLICATIONS
Advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, packaging and paper industry.
MATERIALS
Wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other non-metal materials.
Can also cut sheet metals within 2 mm, such as Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Spring Steel, Iron, Galvanized Iron, Galvanized, Aluminum, Copper, Brass, Bronze, Gold, Silver, Titanium, etc.
