Factory Supply Automatic 6060 Metal Router CNC Engraving Machine Mould CNC Machine

Short Description:

APEXCNC Brand mould cnc milling engraving machine mainly used for all kinds of metal materials, such as aluminum, copper, stainless steel, carbon steel, fiber glass etc.
the standard model have APEX4040 , APEX6060, APEX6090, machine can be customized.

Product Detail

Product Tags

1. Whole machine cast by iron, very strong, table moving, high precision.
2. Imported Hiwin square rails and TBI ball screw for 3 axis.
3. working area 600*600*200mm, Z axis zone can according your need make it.
4. Leadshine hybrid servo motor and driver, Japan servo motor for option.
5. DSP control system, NC Studio and Mach3 for option.
6. Machine with lubrication system, spindle cover, Japan OMRON limit switch and Schneider electrical components.



Technical specification:

Model APEX6060
X,Y,Z Working Area 600*600*200mm
X,Y,Z Traveling Accuracy 0.01mm
X,Y,Z repositioning Accuracy 0.01mm
Table Surface T-slot
Frame Cast iron
X, Y,Z Structure Taiwan Hiwin linear & TBI Ball Screw
Max. Rapid Travel Rate 20m/min
Max. Working Speed 15m/min
Spindle Power Motor 3.0Kw constant power water cooling spindle
Spindle Speed 0-24000RPM
Drive Motors Servo motor
Working Voltage AC380V,50HZ, 3PH/220V, 60HZ,1PH
Command Language G code
Packing Size 1560*1630*1900mm
Packing Weight 1550KG

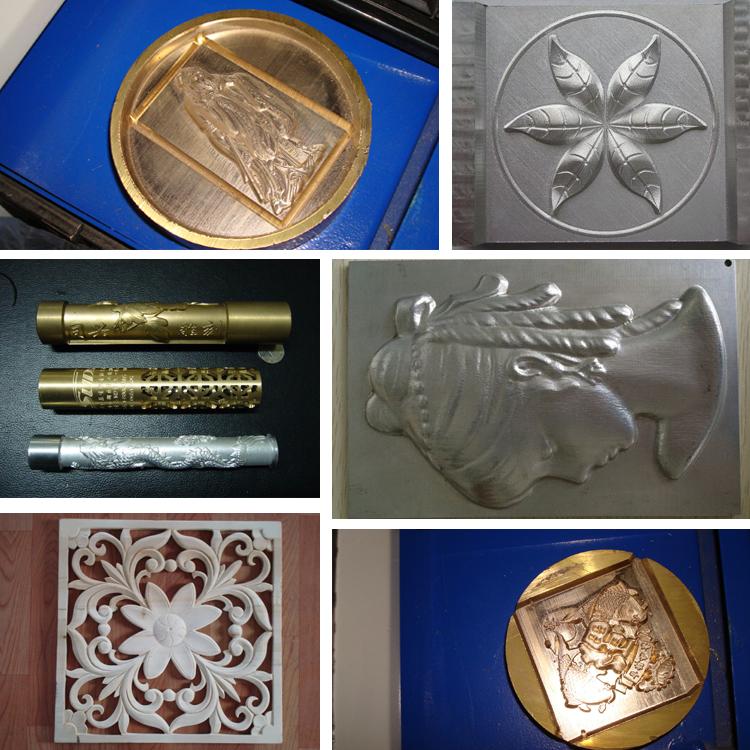

1.This machine is suitable for engraving,milling and drilling compactly all sorts of materials such as steel,copper,aluminum and plastics.
2. It can widely apply to automotive,injection mould,ironware mould and engrave mould industries.
3. Especially designed for engraving and milling molds,eyeglasses, watch,panel,badge,brand, graphics and words of three-dimensional and outside surface’s sleeking of large size.

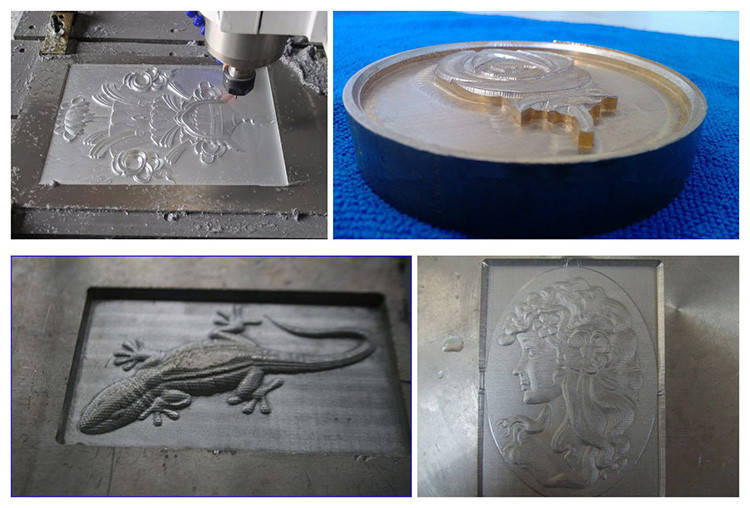

组合(8) 组合(11)


Our Servies
1.Two years quality warranty, the machine with main parts(excluding the consumables)
shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.We will provide the consumable parts at an agency price when you need replacement.
4.24 hours on line service each day, free technical support.
5.Our staff can be sent to your company to install or adjust if necessary.

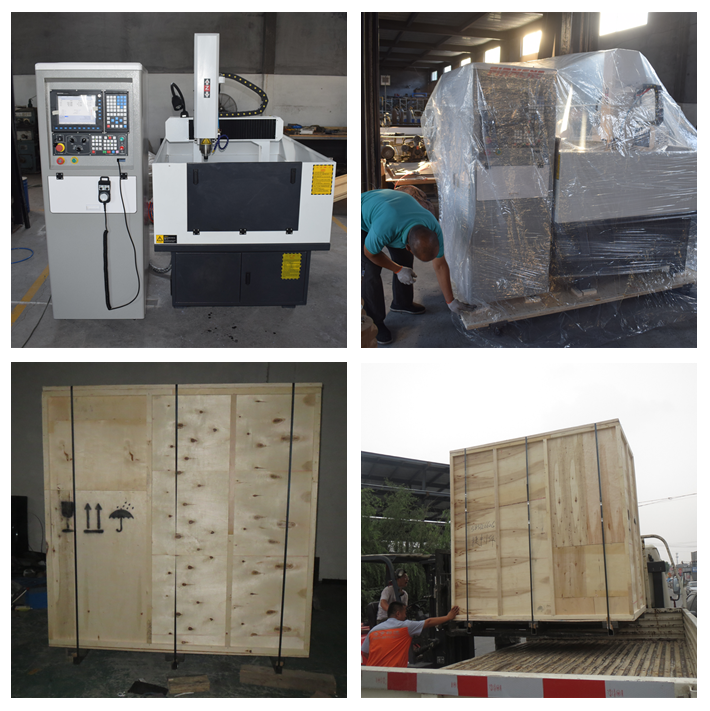

Save space as much as possible for container loading.
Inside:Water-proof Plastic Film Package With Foam Protection
Outside:Solid Seaworthy Wood Box Package
Below: Steel Tube
