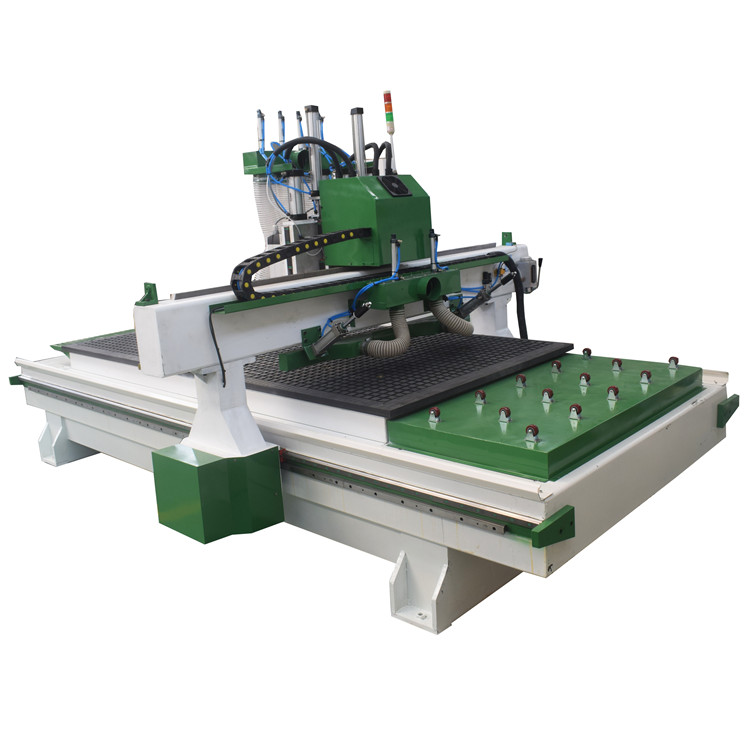

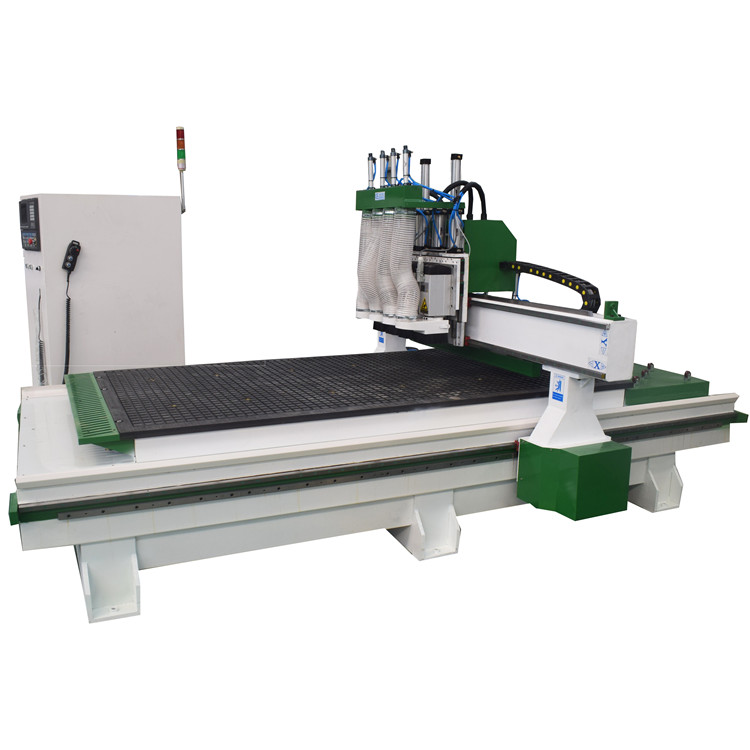

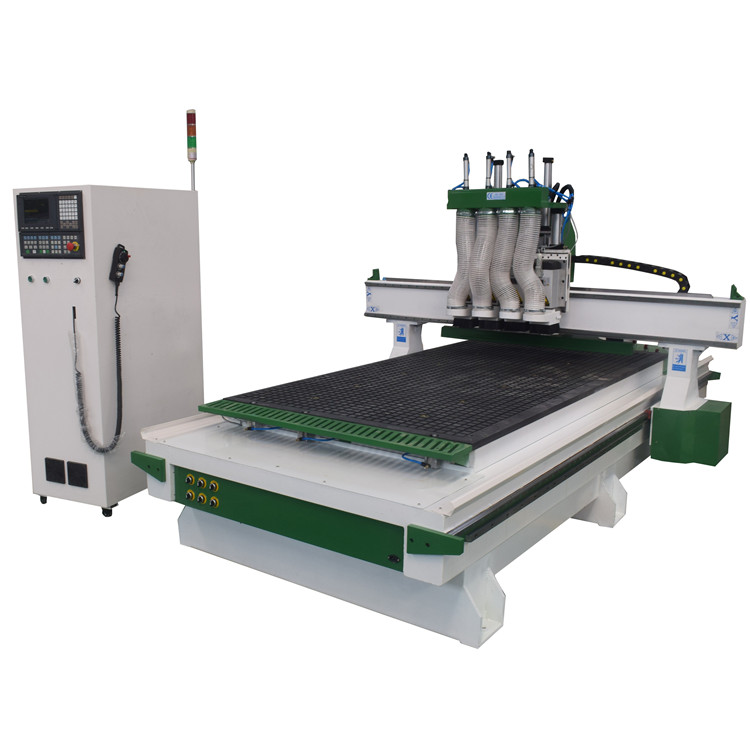

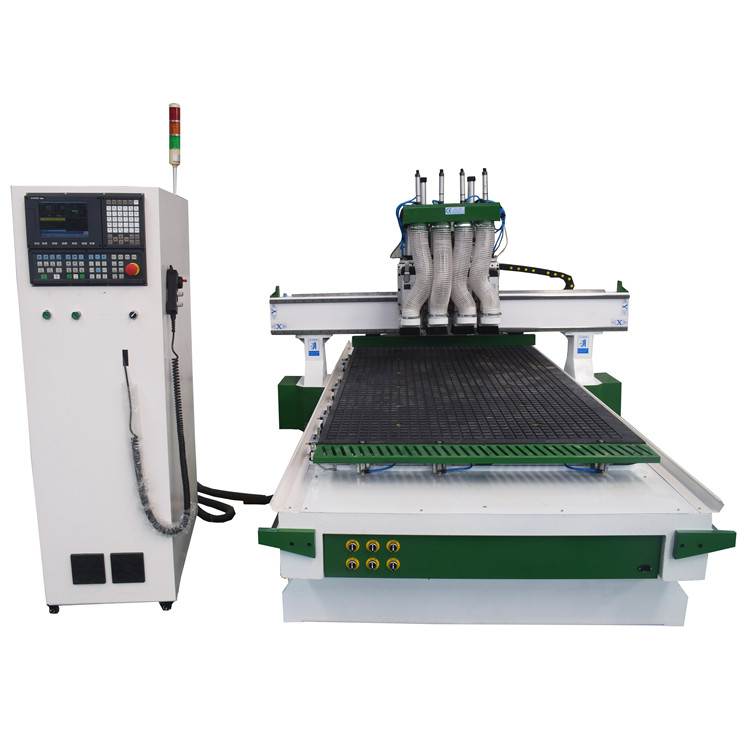

Wood Door Making CNC Router Machine with Dual Table

  • Wood Door Making CNC Router Machine with Dual Table Featured Image
  • Wood Door Making CNC Router Machine with Dual Table Featured Image
  • Wood Door Making CNC Router Machine with Dual Table Featured Image
  • Wood Door Making CNC Router Machine with Dual Table Featured Image
  • Wood Door Making CNC Router Machine with Dual Table Featured Image
  • Wood Door Making CNC Router Machine with Dual Table
  • Wood Door Making CNC Router Machine with Dual Table
  • Wood Door Making CNC Router Machine with Dual Table
  • Wood Door Making CNC Router Machine with Dual Table
  • Wood Door Making CNC Router Machine with Dual Table

Short Description:

*Four air cooled spindle  (HQD or Italy HSD spindle optional ),high quality and 24h continuously work.
*HIWIN square rail,good occlusion and rigidity,no distortion for long time use.
*High speed gear rack transmission for XY axis, and high precision ball screw transmission for Z axis,
ensuring high speed and high precision at same time.
*Pneumatic ATC for 3 spindles with different tools.Automatic tool changing saves time to manually change tools.
*Vacuum table with vacuum pump,can quickly and stably fix materials on the table for engraving,saving time and long service life.
*Control system:We use the advanced Dsp, Nc-studio control system, Syntec from Taiwan or OSAI from Europ.


Product Detail

Product Tags

Wood door making CNC router machine is equipped with dual tables for wood door making, cabinet door making, home door making, room door making, the wood door making machine is mainly used for wood door mass production.

Product Descriptions

1 (3)
Features and Advantages of Wood Door Making CNC router machine:

1. Double working tables for work exchange, which can improve the working effeciency and production.
2. Linear rails on X, Y (Y axis is controlled by two motors) and Z (Taiwan ball screw transmission) axis are used to guarantee high accuracy and stable performance, and support heavy weight. The square sliding blocks are of good dust-proof effect. Automatic oil feeding and lubricating system makes the regular maintenance very easy.
3. Superior high power air-cooling spindle could keep working at low noise level, safeguarding stability for long-time operation.
4. Break-point memory function enables the machine to continue the unfinished work after a work shift or accidents, such as tool breaking.
5. Compatible with many CAD/CAM software, such as Type3, Artcam, Castmate, Wentai, etc.

Applications of Wood Door Making CNC router Machine:

Wood door making machine is widely used in process for single lines, milling, 3D cutting and engraving in furniture processing industry, woodworking decoration, wood art work, home decoration, doors manufacturing.

Technical Parameters of Wood Door Making CNC Router Machine:

Model  APEX1325 / APEX1530 /APEX2030 / APEX2040
Working area 2500* 1300mm / 3000* 1500mm / 3000 *2000mm / 4000* 2000mm
Control system Ncstudio control, optional NK280, SYNTEC
Motor and drivers Step motor / Servo motor
Guide rail  Taiwan HIWIN square guide rail
Transmission way High precision rack gear
Table structure Vacuum and T-slot table
Working speed 8-15m/ min
Table Structure Welded Steel Frame
Spindle Power 3.5kw / 4.5kw/ 5.5kw/ 9kw air cooling spindle
Max Speed 24000 RPM
Variable Frequency Drive Fuling inverter / Delta inverter
Cooling System Electric air Cooled
