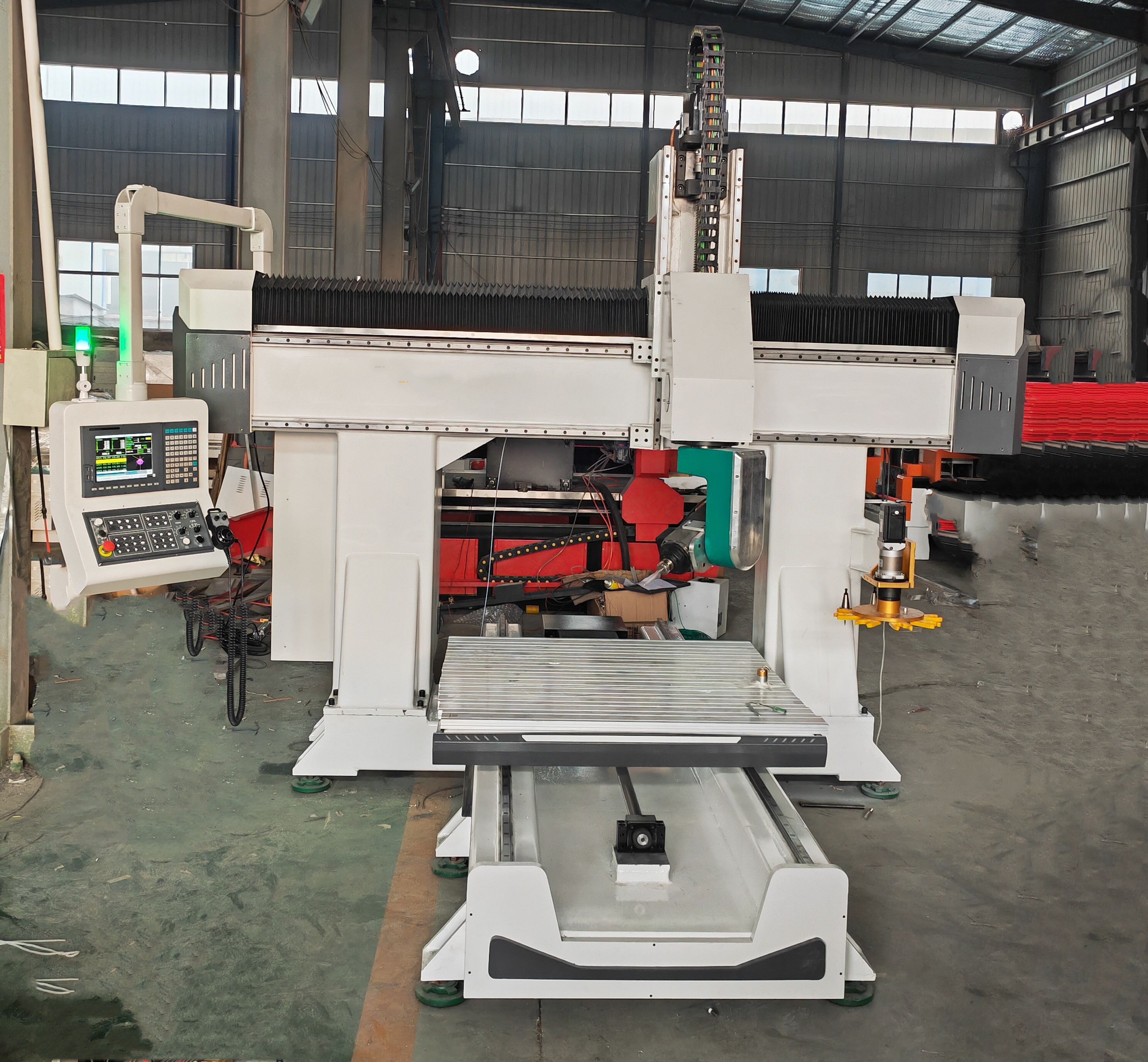

Hot sale 3D 5 Axis Woodworking CNC Router CNC Router Machine for Foam Wood Plastic

Short Description:

Standard Configuration of 5 Axis CNC Router:

1.Working size:1500*2000*1000mm,A Axis: ±120°,C Axis: ±213°

2.Taiwan SYNTEC control system

3.Italy HSD 7.0KW air cooling spindle

4.Double pendulum head type HS300

5.Japan YASKAWA servo driver and motor

6.Taiwan HIWIN linear guide

7.Taiwan TBI ball screw for Z axis

8.Japan Shimpo reducer

9.Rotary tool maganize with 8 positions

10.Working voltage:380V,3PH/220V,3PH 50HZ/60HZ


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Advantage

    1.Controller Syntec controller system   1.With separate control board,easy and convient to operate.

    2.More than 20 years experience on cnc,with mature technology

    2.Spindle Italy 7.0kw ATC Spindle 1.Change tool automatically,save time and labor.

    2.Strong power and long lifetime.the rotate speed max to 24000rpm

    3.Pendulum head

    Double pendulum head type HS300

    1.Make spindle rotate at C axis and A axis,suitable for side drilling and cutting

    4.Servo system Japan YASKAWA Servo driver and motor 1.With strong power and high precision
    5.Reducer Japan Shimpo Reducer     1.The world best reducer brand,to make machine more powerful and stable
    6.Tool sensor Auto tool Calibration     1.Promise the working precision for you.



    Technical data of 5 axis wood cnc router:

    1 Model Name APEX1520-5 axis CNC Router
    2 Movement type Table move style
    3 Working area(MM):X*Y*Z 1200*1200*700MM
    4 Traveling C Axis  ±213°
    A Axis  +120°
    5 Double pendulum head type HS300
    6 Supplier for Double pendulum head HSD
    7 Spindle Power 7.0KW
    8 Spindle speed 20000 R/M
    9 Table size (MM) 1200*1200mm
    10 Material of Table Cast steel
    11 Material fixed Type T-Slot
    12 Minimum training period for operator 2 weeks
    13 Machine size 2500*3000*2500MM
    14 Total weight 8T
    15 Voltage AC 3PH 380V 50HZ
    16 Efficiency File Conversion(hr/day) 0.5
    17 File Exchange USB
    18 Equipment data storage and capacity Cable transmission,USB,CF
    19 Maximum speed: X Axis 40m/min
    Y Axis 40m/min
    Z Axis 20m/min
    C Axis 2700°/min
    A Axis 2700°/min

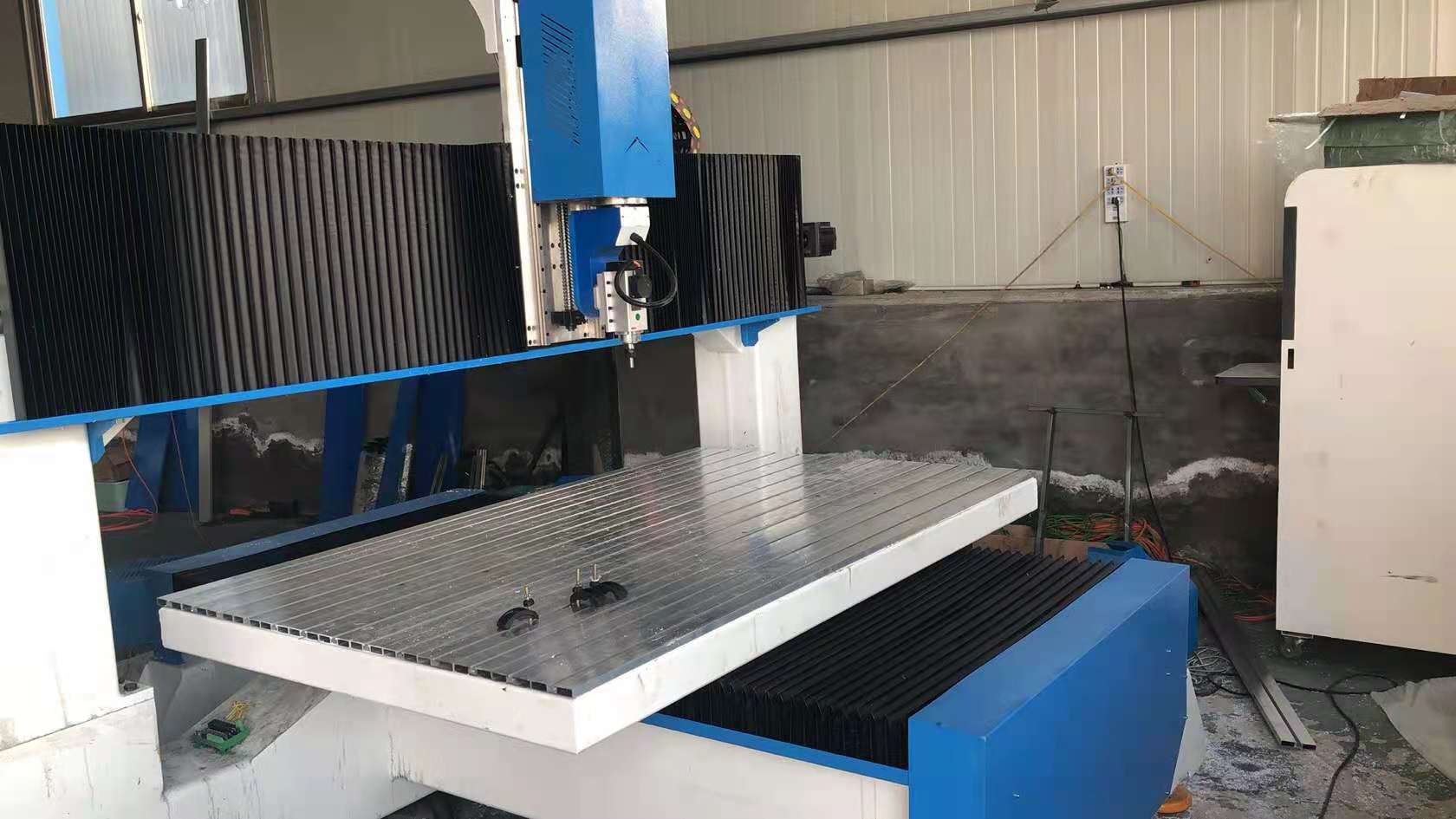

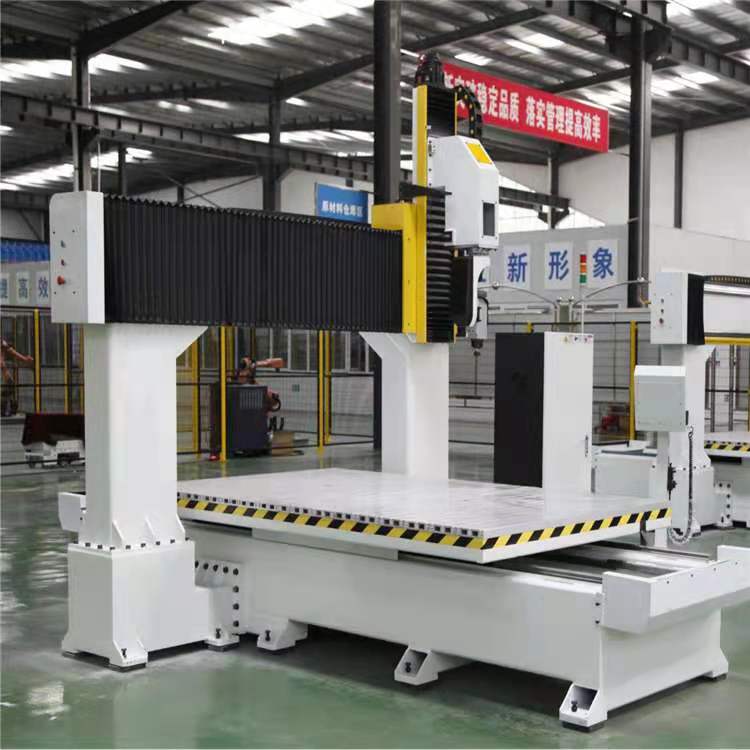

    5 axis wood cnc router

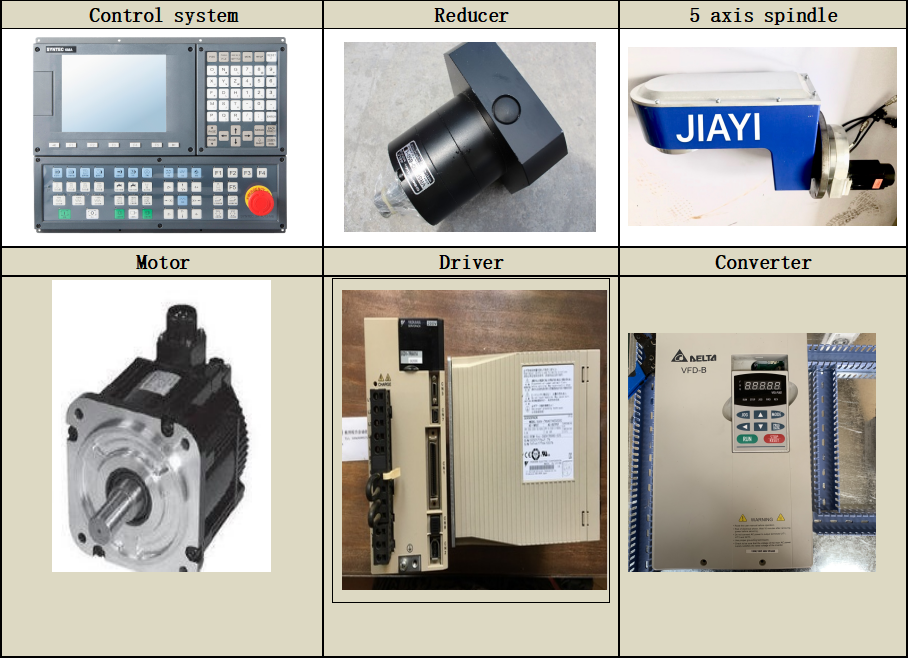

    1632820512(1)

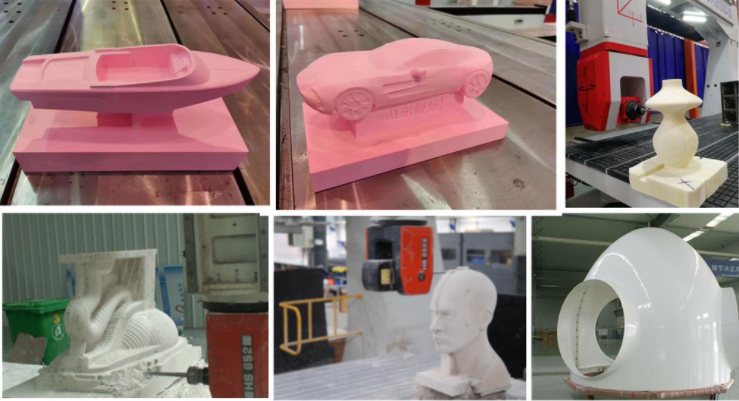

    Application

    1) Mold: wood,wax, wood, gypsum,foams,wax

    2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
    3) The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
    4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling
    tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
    5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

    1626077410(1) 1626235649(1) 1626235704(1)
