Factory Directly Supply 6060 CNC Milling Router Engraving Machine Metal Mould CNC Router

Short Description:

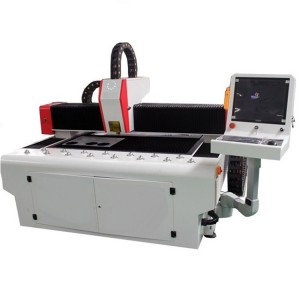

Metal fiber laser cutting machine is mainly used for cutting carbon steel, stainless steel,aluminum alloy, titanium alloy,galvanized plate, copper and other metal materials.Widely used in sheet metal processing, electronic chassis, medical equipment,kitchenware, gifts, fitness equipment, decoration, advertising, metal processing and other manufacturing and processing industries.

Product Detail

Product Tags

1. Iron T-slot  and moving table, ideal for machining metal or wooden molds
2. Axis X, Y, Z are equipped with photoelectric devices, which ensure a fast response and good anti-interference capacity
3. TBI ball screw transmission improves positioning accuracy and fast speed
4. Selection of high speed 2.2kw water cooled spindle, low noise, high torque, this CNC can be used to process high hardness materials.
5. With the Nc studio operating system, it has the breakpoint memory function, which allows you to continue working in the event of a power failure or next day’s workrements


Description Parameter
X,Y,Z Working Area 600*600*200mm
X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
X,Y,Z Repositioning Accuracy ±0.03mm
Table Surface Iron T-slot and moving table
Frame Cast by iron
X, Y,Z Structure HIWIN Rail Linear Guide and TBI Ball Screw
Z Structure HIWIN Rail Linear Guide and TBI Ball Screw
Max. Power Consumption (Without Spindle) 2Kw
Max. Rapid Travel Rate 15000mm/min
Max. Working Speed 8000mm/min
Spindle Power 2.2/3.0/5.5kw water cooling spindle
Spindle Speed 0-24000RPM
Drive Motors Leadshine hybrid servo driver and motor
Working Voltage AC220/380V, 50/60Hz
Command Language G Code
Operating System Nc studio or Mach3 PC Software
Computer Interface USB
Flash Memory 128M(U Disk)
X,Y Resolution <0.01mm
Software Compatibility Type3/Ucancame V9 Software, (Option: Artcam Software)
Running Environment  Temperature 0 – 45 Centigrade
Relative Humidity 30% – 75%
Inverter Delta/Fuling
Electrical components Schneider
Limit switch OMRON
Driver Leadshine or Yako
Warranty One year, expect consumable parts
ER clamp holder ER 20

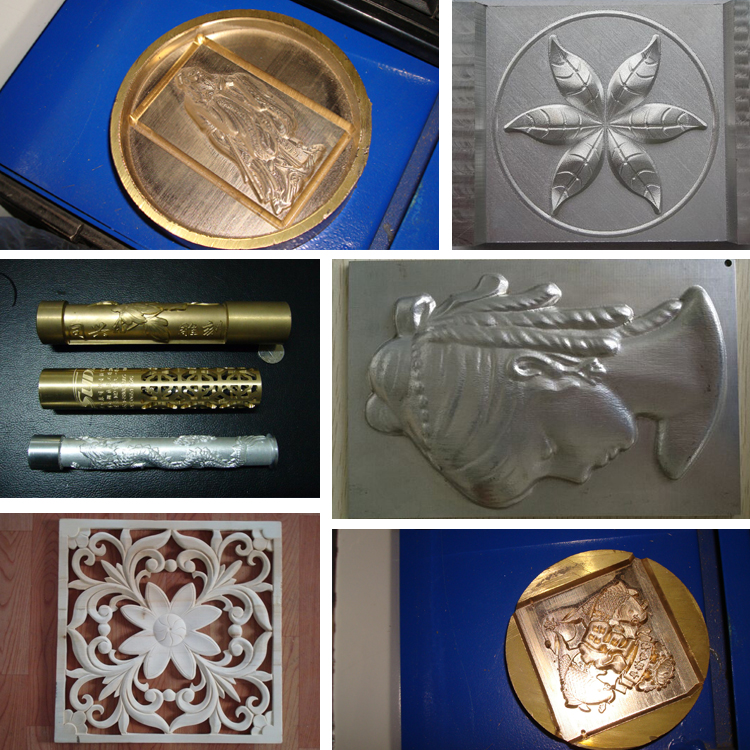

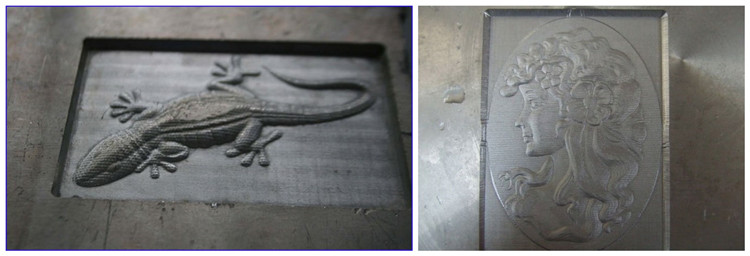

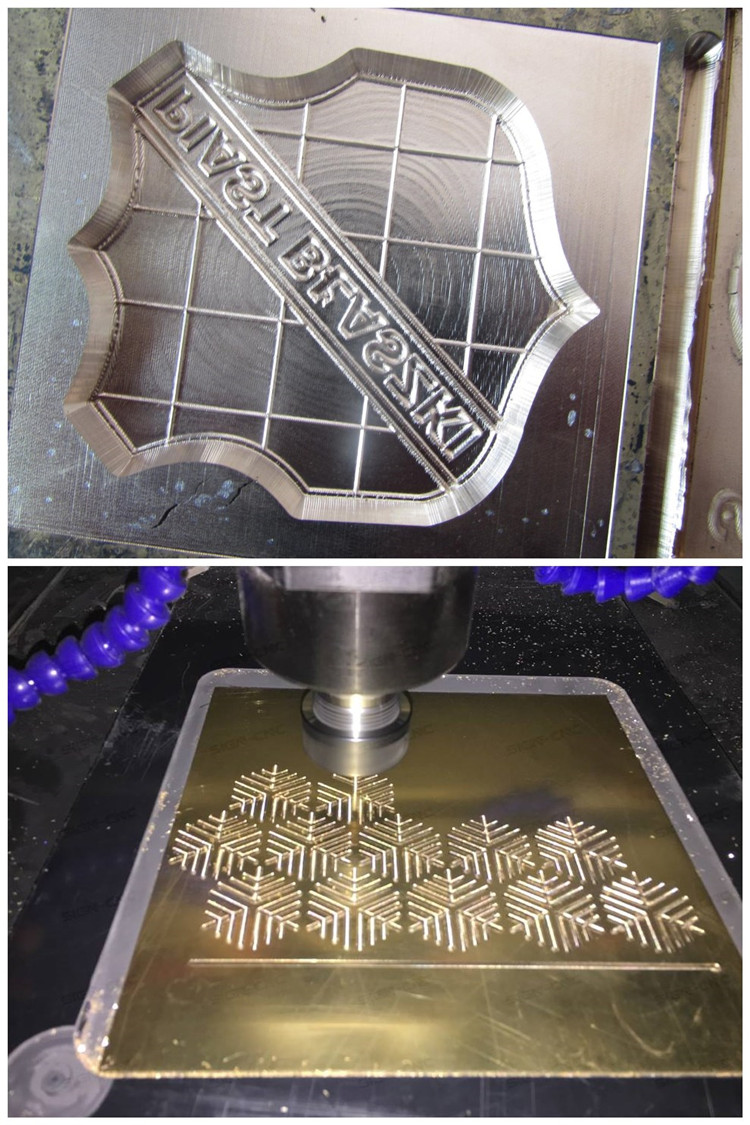

Sample & Application

1. It is suitable for engraving, milling, and drilling compactly all sorts of materials such as steel, copper, aluminum, and plastics.

2. Our wood CNC milling machine can widely apply to automotive, injection mold, ironware mold and engrave mold industries.
3. Specially designed for engraving and milling molds, eyeglasses, watch, panel,

badge, brand, graphics and words of three-dimensional and outside surface’s

sleeking of large size.

组合(8) 组合(10) 组合(12)


Welcome to visit Jinan Apex Machinery Equipment Co.,ltd. We are the manufacturer and supplier of wood cnc router, wood cnc lathe, metal mould machine, fiber laser marking machine, fiber laser cutting machine, Co2 laser cnc machine, stone cnc machine, jade carving machine and plasma cutting machine.

Our company has 10 modern production and processing workshops, including the R&D workshop which can do special design for clients, 6 assembly workshops, 2 riveting and welding workshops, 2 machine processing workshop, more than 600 employees. Our machine are most popular among multi industries, and clients covering almost all the Countries who doing importing and exporting business.

Welcome to cooperate and to be our big sales agent.
