Heavy Duty Structure Wood Mould Carving Metal Mold Engraver CNC Router

Short Description:

APEX Brand mould metal engraving cnc router machine have different models, such as APEX4040, APEX4050, APEX6060, APEX6070 etc.
the size can be customized, we offer 2 years warranty, the whole life technical support.
For first time coopeation, we will help to solve the below issues, such as to choose economic but high-performance machine, shipping cost, import custom tax fee, the after sale problems, technical support etc.

Product Detail


Product Tags

CNC mold making machine is a multi-functional mold making CNC router machine, now the CNC mold making machine for sale at cost price.

Demonstration Video

Product Descriptions

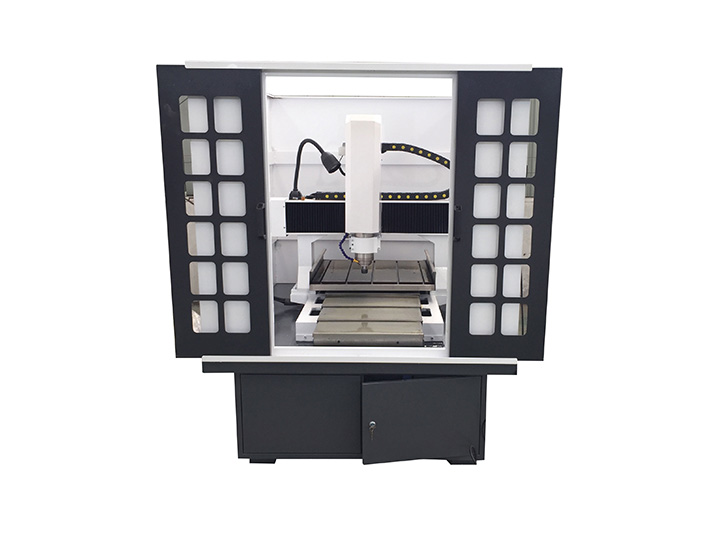

CNC Mold Making Machine

CNC mold making machine Features and Advantages:


1. Cooling system: Mist cooling system for spindle, cooling workpieces with oil in the tank or atomization liquid through or spray nozzle.

2. Quality assurance: Each device before leaving the factory, we will test the cue with laser interferometer.

3. Gantry structure: Whole cast-iron structure,steady structure,high rigidity ,precision 0.01mm. The double column is whole part, greatly increase machine rigidity.

4. The machine adopts high-speed water cooling variable frequency motor ,big torque,strong cutting ,high-frequency ,long-lifetime,can be a long time continuous working.

5. Servo motor and drives: from Japan with high precision and long life.

6. HIWIN linear guide: made from Taiwan,used for linear reciprocating stadium.

7. Three axis all use Germany ball screw and Taiwan linear orbits to make sure the accuracy and reposition precision.

8. Functional and easy-to-operate control system made by Taiwan SYNTEC with high performance and competitive price.

9. Table movement to keep stable and high precision.

10. Enclosed work space ensures safe and contamination-free work.

11. The mold making machine is the product of the combination of numerical control technology and engraving and milling process. It is a kind of multi-functional CNC machine. Similar to the ordinary numerical control machine, our metal engraving machine price realizes the carving, the milling processing automation through that numerical control system controls the engraving and milling machine movement according to processing procedure code.

12. Stable and rigid structure: With the gantry type bed and table are one, it is not only good rigidity, but also no installation error for both. Processing precision will not be affected even if being used for long time.

13. The mold making machine is a kind of fully enclosed design, it adopt external circulating cutting oil processing way. Machine body is fully casting with stable structure and great weight-bearing ability.

14. The mold making machine is equipped with accurate bidirectional ball screw of famous brand, Taiwan square rail and accurate bearing with strong rigidity and high dynamic accuracy. It is also equipped with Japan YASKAWA ac servo motor with high accuracy and high power make amplitude smaller and three-axis more stable.


CNC Mold Making Machine


CNC Mold Making Machine table


Technical Parameters of CNC Mold Making Machine:

Ravelling size X working area 400mm / 600mm
Y working area 400mm / 600mm
Z working area 200mm
Accurancy Working Accurancy ±0.01mm
Repositioning Resolution ±0.01 mm
Table Surface stainless steel T-slot table
Guide rail Taiwan HIWIN square guide rail 25
Transmission X/Y/Z Axis Taiwan TBI ball screw
Structure Lathe Structure Integral cast iron
Speed Rapid Travel Rate 15000mm/min
Working Speed 10000mm/min
Spindle Spindle Power 2.2KW/3KW
Spindle Speed 0-24000rpm
Inverter Fuling inverter
Working Drive motor Stepper motor /JAPAN YASKAWA Servo motor
Command Language G code(optional:HPGL)
Others Working Voltage AC220/50HZ
Operating System Original NC studio
Compatible Software Type3(optional:Artcam,Ucan)
Weight Gross weight 1800kg
Net weight 1500kg
Package 1. Protective film package and fumigation-free plywood case.
2. OEM and package can according to customer requirements.

#Free samples(I can help you process samples for free.)
#ATC type, linear auto tool changer or circular tool changer for choose
# Whole machine cast by iron, very strong, table moving, high precision.
# Imported Hiwin square rails and TBI ball screw for 3 axis.
# Working area 600*600*200mm, Z axis zone can according your need make it.
# Japan Yaskawa servo motor and drivers,leadshine hybrid servo motor for option.
# Syntec controller, TK100 controller, DSP control system and NC Studio for option.
# Machine with lubrication system, spindle cover, Japan OMRON limit switch and Schneider electrical components
