Hybrid CO2 Laser Cutter for Metal and Wood

Short Description:

Main features
1.Imported stepper motor and drive systems
2.Domestic reci lasers (150W/ 180W/ 200W) optional, Adopted imported linear guide rail
3.Large LCD display subtitles, humane button control panel
4.Optical system using the full import of laser lens system in Singapore
5.High strength stainless iron or aluminum honeycomb floor slats optional knife
6.Ruida controller system–6332 model

Send email to us

Product Detail

video

Product Tags

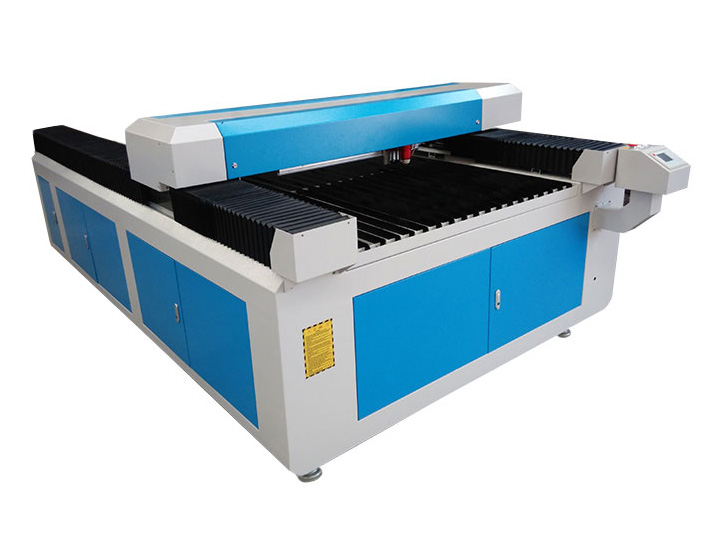

APEX1325M cheap CO2 laser cutter for metal and wood adopts sealed CO2 glass laser tube, which is used for cutting thin metals (1.5mm SS and 2.5mm CS) and thick nonmetals (30mm acrylic, 25mm wood, etc.)

Product Descriptions

150W laser cutter for metal and nonmetal

Configurations of CO2 laser cutter for Metal and Wood

1. Working area is 1300*2500mm.
2. 150W Reci laser tube.
3. Auto following cutting head.
4. Ruida RD6332M control system.
5. Leadshine stepper motor and driver.
6. Taiwan Hiwin rail guide.
7. Belt transmission.
8. America lens and mirrors.
9. Blade table.
10. Air pump.
11. Water chiller CW6000.
12. Dust collector 550w.
13. Standard tool box.

Technical Parameters of CO2 laser cutter for Metal and Wood

Model	APEX1325M
Laser Type	Sealed CO2 Glass Laser Tube
Laser Power	150W
Laser Cooling Type	Water cooling sytem
Contral System	RDC6332M
Manner of Working	Cutting
Format Support	plt, ai, dxf, bmp, jpg, png, dst, dsb and so on
PC Interface	USB cable and USB disk
Drive type	Stepper System
Guide way	Linear square guide way, belt transmission
Laser head follow-up	YES
Repeated positioning accuracy
