New Fashion Design for China 6060 6075 Aluminum Metal Copper Milling CNC Router Metal Mold Engraving Machine

Short Description:

APEX Brand mould metal engraving cnc router machine have different models, such as APEX4040, APEX4050, APEX6060, APEX6070 etc.
the size can be customized, we offer 2 years warranty, the whole life technical support.
For first time coopeation, we will help to solve the below issues, such as to choose economic but high-performance machine, shipping cost, import custom tax fee, the after sale problems, technical support etc.


Product Detail

video

Product Tags

We are commitment to offer you the aggressive price tag ,exceptional products and solutions high-quality, as well as fast delivery for New Fashion Design for China 6060 6075 Aluminum Metal Copper Milling CNC Router Metal Mold Engraving Machine, should you have any query or wish to place an initial order please do not hesitate to contact us.
We are commitment to offer you the aggressive price tag ,exceptional products and solutions high-quality, as well as fast delivery for China Metal Engraving Machine, cnc milling machine, Looking forward, we’ll keep pace with the times, continuing to create new products and solutions. With our strong research team, advanced production facilities, scientific management and top services, we are going to supply high quality solutions to our customers worldwide. We sincerely invite you to be our business partners for mutual benefits.

CNC moulding machine with automatic tool changer is a type of CNC router machine for molding, now the CNC moulding machine for sale at an affordable price.

Demonstration Video

Product Descriptions

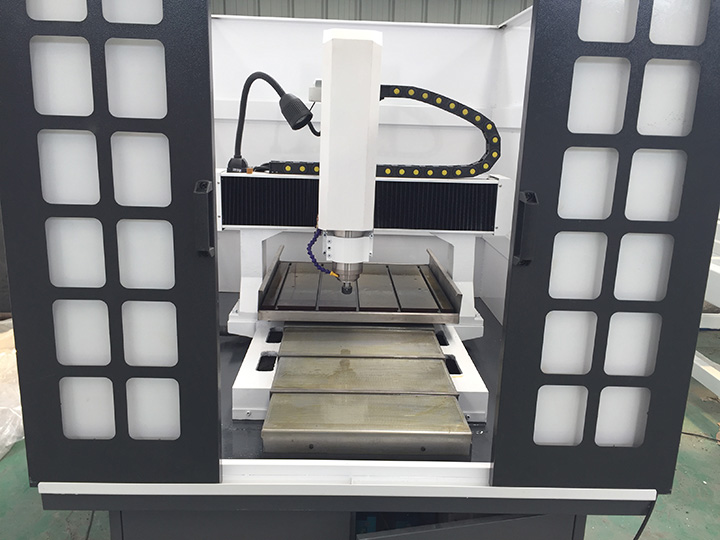

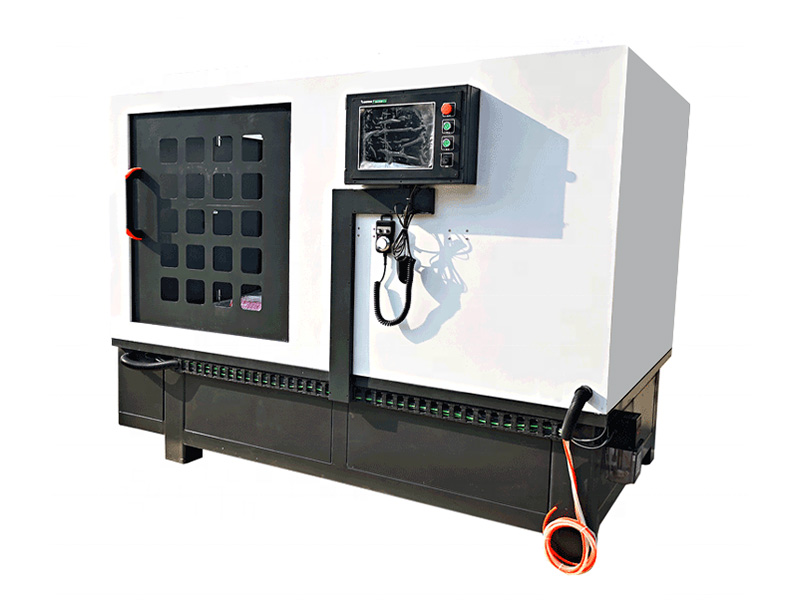

CNC Moulding Machine

Features of CNC moulding machine with automatic tool changer:



1. CNC moulding machine is the product of the combination of numerical control technology and engraving and milling process. It is a kind of multi-functional CNC machine. Similar to the ordinary numerical control machine, our metal engraving machine price realizes the carving, the milling processing automation through that numerical control system controls the engraving and milling machine movement according to process procedure code.

2. Stable and rigid structure: With the gantry type bed and table are one, it is not only good rigidity, but also no installation error for both,. Processing precision will not be affected even if being used for long time.

3. CNC moulding machine is a kind of fully enclosed design, it adopt external circulating cutting oil processing way.Machine body is fully casting with stable structure and great weight-bearing ability.

4. Machine has been equipped with accurate bidirectional ball screw of famous brand, Taiwan square rail and accurate bearing with strong rigidity and high dynamic accuracy. It is also equipped with Japan YASKAWA ac servo motor with high accuracy and high power make amplitude smaller and three-axis more stable.

5. CNC moulding machine has been equipped with automatic tool changer system.



Advantages of CNC Moulding Machine with Automatic Tool Changer:



1. Gantry structure: Whole cast-iron structure,steady structure,high rigidity ,precision 0.01mm. The double column is whole part, greatly increase machine rigidity.

2. Adopt high-speed water cooling variable frequency motor ,big torque,strong cutting ,high-frequency ,long-lifetime,can be a long time continuous working.

3. Cooling system: Oil circulating oil cooler for spindle, cooling workpieces with water or oil in the tank or atomization liquid through or spray nozzle.

4. Quality assurance: Each device before leaving the factory, we will test the cue with laser interferometer.

5. Servo motor and drives: from Japan with high precision and long life.

6. HIWIN linear guide: made from Taiwan,used for linear reciprocating stadium.

7. Three axis all use Germany ball screw and Taiwan linear orbits to make sure the accuracy and reposition precision.

8. Functional and easy-to-operate control system made by Taiwan SYNTEC with high performance and competitive price.

9. Adopt table movement to keep stable and high precision.

10. Enclosed work space ensures safe and contamination-free work.

11. Automatic tool changing system with 4 tools.



CNC moulding machine Syntec system





CNC moulding machine oil lubrication





Technical Parameters of CNC Moulding Machine with Automatic Tool Changer:

Performance index APEX6075
X,Y working area 600×750mm
Z  working area 200mm
Max travel speed 4m-5.5m/min
Max engraving speed 2m-3m/min
Resolution ratio 0.005mm
Repositioning precision 0.01mm
Max feeding heigh 150mm
Command G Code *.mmg*.plt
Surroundings for software windows98/2000/xp
Power AC220V/60Hz
Main axle power rate 1.5kw Constant Water Cooling Spindle
Spindle speed 0-24000rpm/min
Work Mode Servo system
