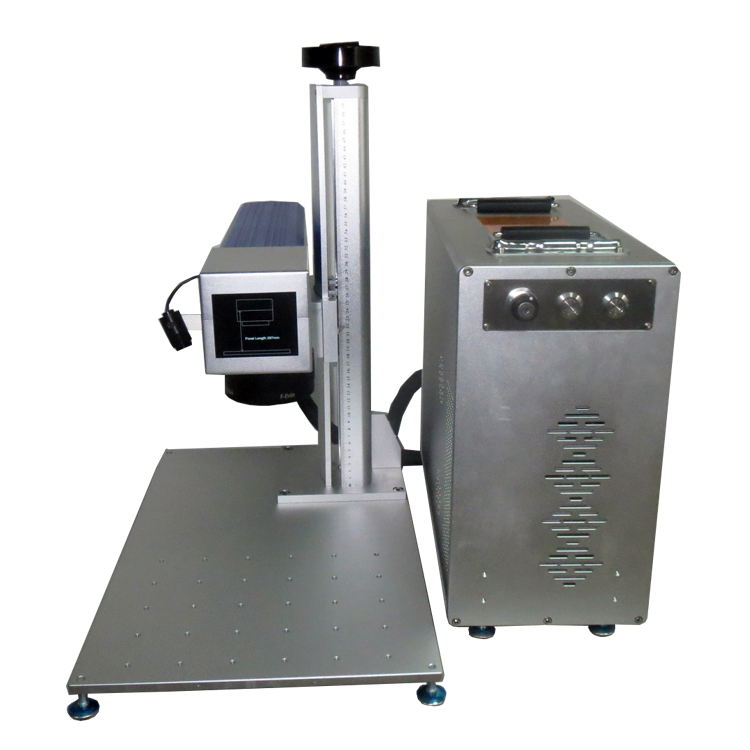

20W Mini Metal Fiber Laser Marking Machine for Plastic Rubber Aluminum

Short Description:

Fiber laser marking machine can be used for marking logo, serial number, bar code and other beautiful patterns on any metallic materials such as stainless steel,
titanium, brass, gold, silver, aluminum and lots of engineering plastic products such as mobile cover & charger, consume electronics housing and etc.
Our laser marking machine adopts the best quality fiber laser source in the world. We have 10w, 20w, 30w and 50w for optional.
The estimated life for laser source will be around 100,000hours, which is 10 times longer life than diode laser and 2 times longer life than other fiber laser source.
This Portable desktop Fiber metal Laser Marking Machine is very easy to use, small, light, moveable. It is your best choice.

Send email to us

Product Detail

video

Product Tags

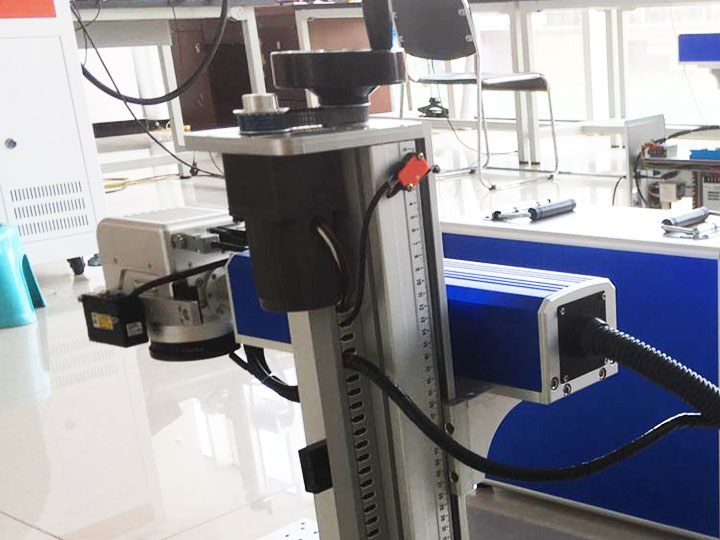

Fiber laser marking machine with auto focus system, which can detect the marking object’s thickness and adjust the focus length itself. Auto focus fiber laser marking machine is very suitable for marking lots of items with different thickness.

Demonstration Video

Product Descriptions

Features of MOPA fiber laser marking machine with Auto Focus System:

1. Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery.
2. High Precision: Re-position precision is 0.002mm.
3. High Speed: Top brand scanning system makes the scanning speed is up to 7m/s.
4. Easily Operating: Afford the specific coding software based on Windows, You can input and output by computer according to edit in the both of the specific coding software and the graphic software such as AutoCAD, CorelDRAW and Photoshop.
5. High Reliability: Fiber laser model has a over 100,000 hours working life. Almost no maintenance during this period.
6. Energy Saving: The efficiency of optic-electrical converting is up to 30%.
7. Low Running Cost: No wearing part. Free maintaining.

Technical Parameters of MOPA Fiber laser marking machine with Auto Focus System:

Model	APEX-20FM
Output Power	>20W
Laser Wavelength	1064nm
Fiber Cable Length	2m
Pulse Width	6-250ns
Repetition Frequency Range	40-2000kHz
M2	<1.3
Max.Single Pulse Energy	0.5mJ
Output Power Stability	<5%
Output Beam Diameter	7
