MOPA Fiber Laser Marking Machine for Color Marking

Short Description:

Product Detail


Product Tags

Color laser marking machine with MOPA fiber laser source is used for marking black, white, grey and colors on metal surface such as stainless steels, titanium. The MOPA laser marking system is applied in marking on iPhone, MacBook, electronic parts and keyboard.

Product Descriptions

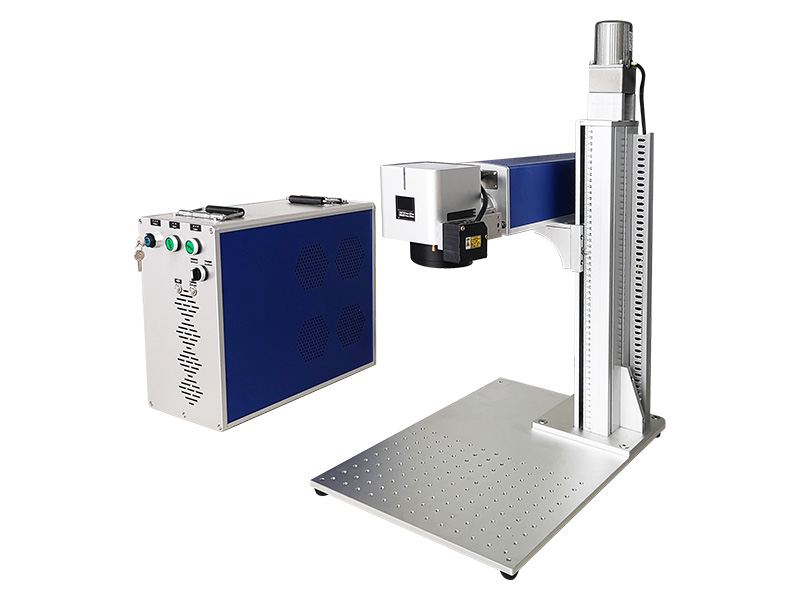

Color laser marking machine

Features of Color laser marking machine with MOPA Fiber Laser Source:

1. APEX brand 60W MOPA fiber laser source, fiber laser service time is over 100,000 hours without maintenance.
2. Laser source with Air cooling, small size, low power consumption.
3. Motorized Z axis system, it is easy to mark and engrave different workpieces.
4. The machine has more higher photoelectric conversion efficiency. The efficiency of optic-electrical converting is up to 30%.
5. High speed galvo scanner to guarantee the stable beam and good performance.
6. Red light preview, make the marking visible before marking.
7. The proprietary control software may compatible software output of AutoCAD, CorelDraw, Photoshop, etc. It can realize automatic edition and correction of characters, signs, graphs, images, bar codes, 2D codes.

Technical Parameters of Color Laser Marking Machine with MOPA Fiber Laser Source:

Model APEX-60FM-Mini
Laser Source MOPA fiber laser
Laser Power 60W
Laser Wavelength 1064nm
Fiber Cable Length 3m
Pulse Width 10-350ns
Repetition Frequency Range 40-2000kHz
M2 <1.8
Max Single Pulse Energy 1.5mJ
Output Power Stability <5%
Output Beam Diameter 6
