Factory supply 1530 Iron Aluminum Carbon Steel Metal Fiber Laser Cutting Machine

Short Description:

Fiber laser cutting machine adopting world famous Germany IPG fiber laser source and Raycus laser source,Raytools cutting head and dynamic focus system, it can cut and punch different kinds of metal material with high precision and high speed. Since laser is transmitted by fiber , it is no need to maintenance or adjusts the laser optical path , it greatly reduces the machines fault rate and prolongs the working life. Large format cutting area meets the demands of various kinds of metal processing .


Product Detail

Product Tags

Features of fiber laser cutting machine
1.Excellent beam quality: Smaller focus diameter , high work efficiency, better processing quality.
2. High cutting speed: 2-3 times faster than YAG and CO2 laser .
3.High Stability:  Adopt superior quality fiber laser, stable performance, key parts can reach .
4. High efficiency for photoelectric conversion : Compared with CO2 laser cutting machine, Fiber laser cutting machine has 3 times photoelectric conversion and with energy saving & friendly environment .
5. Low cost: The whole power consumption is only 20-30% of traditional CO2 laser cutting machine.
6.Low maintenance cost: It is with Optical fiber line transmission, no need reflector lens, can save a lot of maintenance cost.
7.Easy Operation : Fiber Line transmission, no adjustment of optical path.
8.Super-flexible optical effect : small volume, compact structure, easy to flexible manufacturing requirements .

F3015E-4

Specifications of fiber laser cutting machine

Fiber Laser Cutting Machine Technical Parameters
Laser Type Fiber laser
Laser Brand IPG / Raycus
Laser Power 1000W / 2000W / 3000W
Working area 1500mmX3000mm / 2000mmX4000mm /
2000mmmX6000mm
Working Table Fixed Working Table / Pallet Changer
Control System PMAC full-closed loop servo control
Driving Mode Double ball screw driving / Double gear rack driving
Idle/Processing Speed 120m/min / 60m/min
Positioning Accuracy 0.05mm
Protection System Enclosure protection
Laser Head Precitec / Raytools
Power Supply AC220V ± 5% 50 / 60Hz / AC380V ± 5% 50 / 60Hz
Total Power 6KW~20KW
Floor Space 5.6mX3.2m (fixed table) / 6mX4.6m (shuttle working table)
/ 8.5mX4.2m (pallet changer)
Standard Collocation Metal nesting software, dual-pressure gas route of
3 kind gas sources,
dynamic focus, remote controller, etc.
Auxiliary System
Cooling System Dual temperature dual control water chiller
with purification system
Lubrication System Automatic lubrication
Laser cooling system Horizontal air conditioning
Auxiliary gas system dual-pressure gas route of 3 kind gas sources
Laser cutting head Dynamic focus
Circuit and protection system Independent work station
Software System
Software Shanghai Cypcut
Supported Format PLT, DXF, BMP, AI, DST, DWG, etc.

fiber laser details

Application Materials of fiber laser cutting machine
Automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising logo, car decoration, sheet metal production, lighting hardware, display equipment, precision parts, hardware products, subway accessories, decoration, textile machinery, food machinery , Construction machinery, ships, tooling, metallurgical equipment, aviation, aerospace and other manufacturing and processing industries.

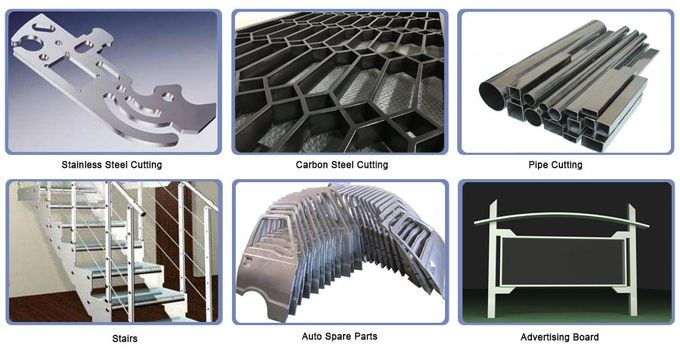

Samples of fiber laser cutting machine

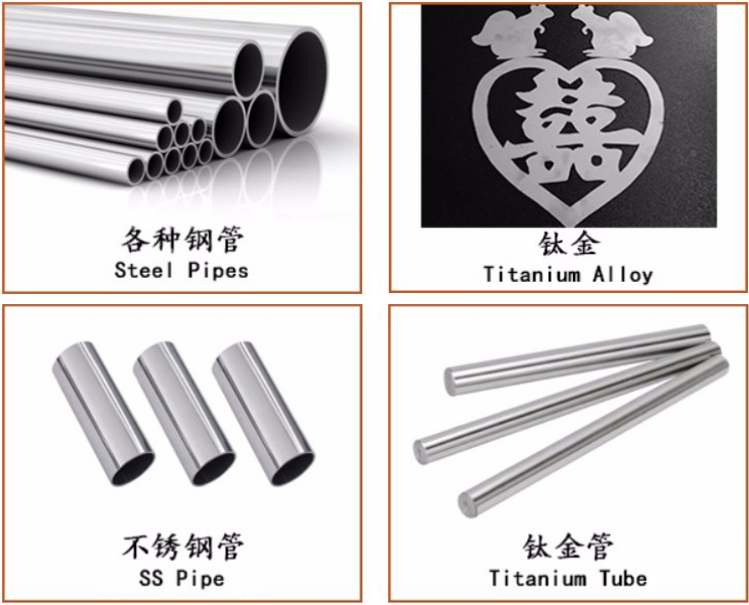

光纤样品- 样品图 (6)

After sale service
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges
Delivery & Payment
Packaging and shipping
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information.

光纤包装图1
