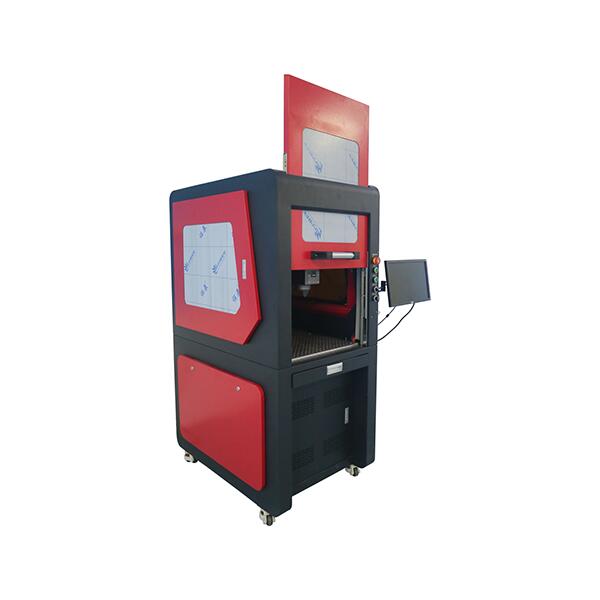

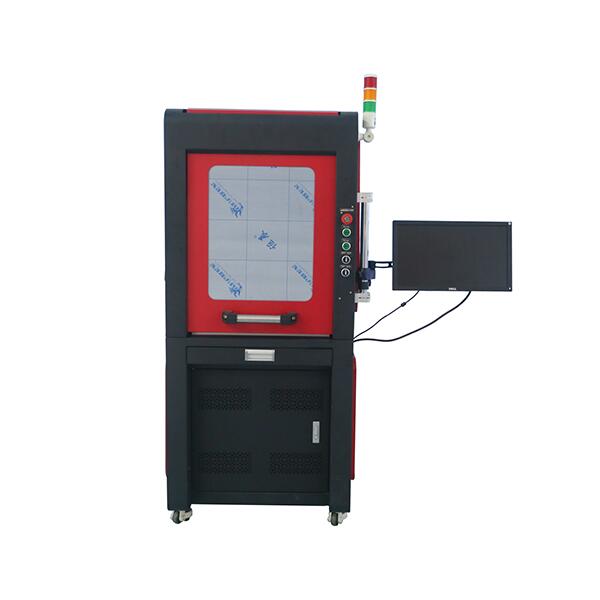

Fully Enclosed Co2 Laser Marking Machine Laser Engraver With Indicator Light

Short Description:

APEX-HET
With fully enclosed acrylic cover, you can see the items clearly but very safe.
External indicator light, let users know equipment status easily.
It can mark time, date, text, serial and part numbers, company logos, icon, symbol, bar codes, or 2D codes, matrix and vector fonts on all plain, painted, powder coated, anodized, or plated metal surfaces, whether they are flat sheets, curved surfaces, or cylinders.

Send email to us

Product Detail

Product Tags

Features Of The Co2 Laser Marking Machine

Co2 laser marking machine can be used for marking logo, serial number, bar code and other beautiful patterns on any metallic materials such as stainless steel,titanium, brass, gold, silver

3D dynamic Co2 laser marking machine adopts the 10.64um Co2 laser source, which can satisfy the application in different industries such as marking, cutting, engraving, color removal, paint processing, material micro-processing and etc. The equipment adopts Aluminum frame structure, and the latest motor driving in the whole worktable platform to ensure the stable qualities. The adjustment of laser optical path is driven by two galvanometer motors(XY), and the third axis is driven by pre-scanning gathered system to make a wildly adjustment for focus distance.
Co2 dynamic laser marking machine can engrave and cut fine pattern, the minimum line width can reach to 0.04mm. Cutting & Marking result is clear, durable and beautiful with high precision.
With the higher power laser tube and the 3D Scanner technology, the 3D dynamic Co2 laser marking machine can work on large size materials such as clothes processing, leather processing, LGP (Light Guide Plate for LED Panel Light and TV) processing.

Parameters of the Co2 Laser Marking Machine

Machine Specifications
Model	APEX-HET50W	APEX-HET80W	APEX-HET100W
Wave length of laser	1064nm
Laser power	50W	80W	100W
Marking scope	200200 / 300300mm
Laser sources	Raycus / JPT / IPG / MAX
Laser Head	Scanning head
The minimum focus facula diameter	20μm
Minimal character	0.01mm
Marking speed	≤7000mm/s
Repeated accuracy	0.0025mm
Cooling ways	Force-air cooling
Power supply	220V/ 50Hz/2kVA
Process Material	Non-metal Materials
Support format	PLT, BMP, DXF, JPG, TIF, AI etc
Package	Standard export plywood case

Customers Samples Photos

APPLICATIONS
Electronic components, integrated circuits, mobile communications, medical equipment, eyeglasses and clocks, jewelry, auto parts, plastic buttons

MATERIALS

Non-metals: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes, wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material, Electronic components, integrated circuits, mobile communications, medical equipment, eyeglasses and clocks, jewelry, auto parts, plastic buttons
