Introduction:

A woodworking lathe comprises a bed, a tailstock mounted at the tail end of a guide rail of the bed, a tool rest mounted at the middle of the guide rail of the bed, a headstock mounted at the head of the bed, a spindle mounted on the headstock and a chuck thereon, a motor mounted on the headstock, and a speed-changing transmission device mounted on the motor shaft, the spindle and the headstock. The speed-changing transmission device is characterized in that the speed-changing transmission device comprises a fixed half wheel of a driven speed-changing V-belt pulley fixed to the end of the spindle, a movable half wheel of a driven speed-changing V-belt pulley sleeved on the spindle and plugged with the fixed half wheel, and a bearing mounted on the movable half wheel. The push-pull arm at the end of the wheel, the compression spring installed between the push-pull arm and the headstock, the rack fixed on the push-pull arm parallel to the main shaft and slidable in the hole of the headstock, the gear shaft with the meshing end of the rack passing through the headstock, the eccentric wheel with a handle installed in the open groove at the end of the gear shaft with a small shaft, the movable half wheel and the fixed half wheel of the active speed-changing V-belt wheel installed on the motor shaft or its connecting shaft, the compression spring installed between the movable half wheel and the retaining ring at the end of the motor shaft or its connecting shaft, and the V-belt installed on the active and driven speed-changing V-belt wheels. Woodworking machine tools that use woodworking turning tools to process the rotating surface of wood or complex contour surfaces. Woodworking lathes are divided into ordinary woodworking lathes, copying woodworking lathes, and round bar machines.



Advantages of cnc wood lathe:

1. Whole machine is welded with seamless steel structure,which is high temperature annealing and vibrating stress relief,so the lathe body is stabilized and will not be deformed forever.
2. Adopting advanced DSP system with USB connection,operated with the handle,convenient operation.Our lathe can completely work offline and do not take any computer resources.
3. Operating system has friendly simple operation interface,English suggestion and simple setting method.
4. Our cnc wood lathe adopting domestic famous brand stepper motor,to ensure the precision.
5. Transmission System: HIWIN square rail and ball screw to control the linear error effectively .
6. Spindle System:Divided into the single axial and biaxial.
7. Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.
8. One time tool setting to finish the whole work piece.
9. If you have any special requirements, we can custom make according to your request.



Application of CNC wood lathe:

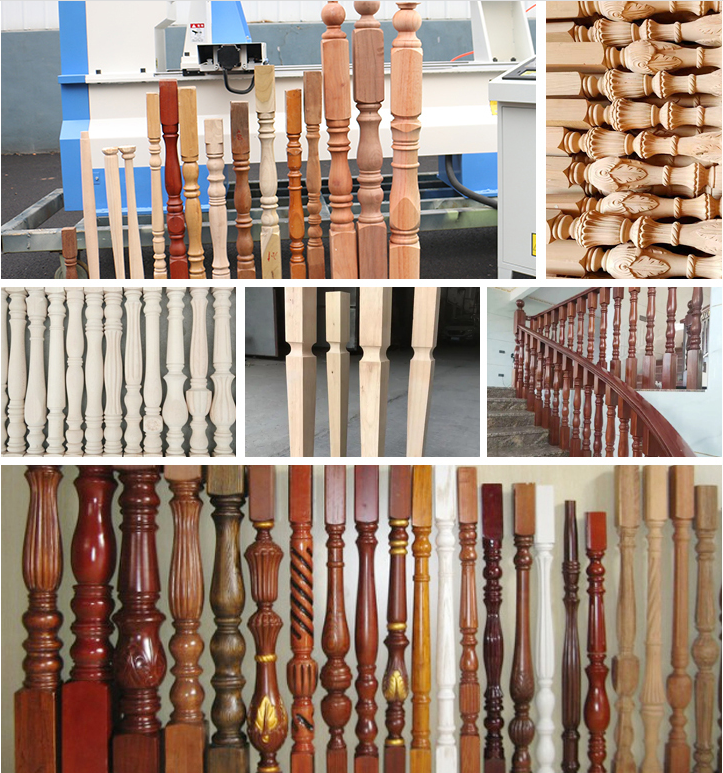

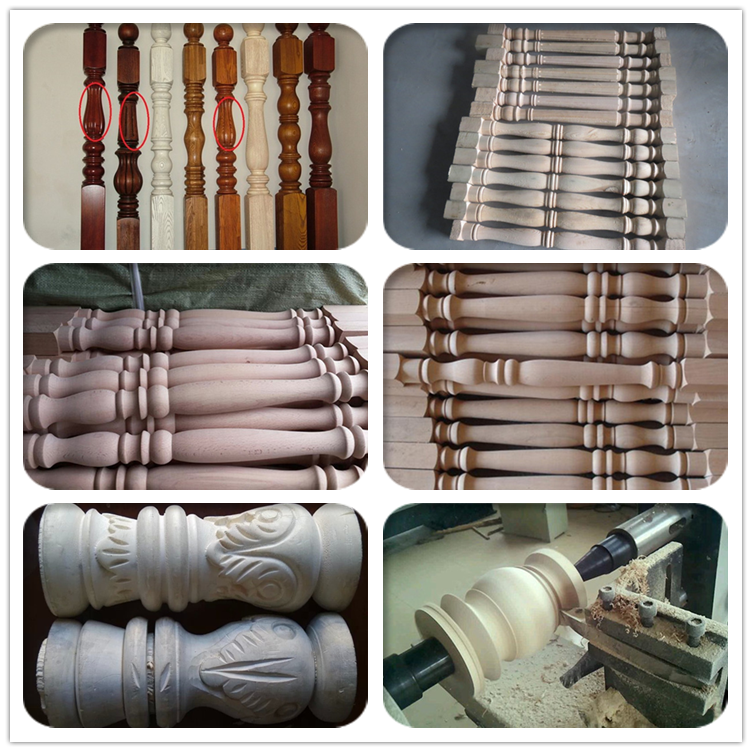

Suitable for a wide range of furniture needs, this is the woodworking lathe you have been looking for for a long time.Processing range: stair column, vase, table and chair legs, European furniture Roman column, wooden coat hanger and washbasin,cylindrical, conical, arc, spherical and other complex shape of the revolving body wood products or wood semi-finished products.
